IP-Com PoE 5-Port 10/100/1000Mbps Gigabit Switch G1105PD

Tenda Technology
67V G1105PD

IP-COM Gigabit PoE Switch with 5 ports is designed for medium to large surveillance networks and wired infrastructure. It combines advanced features such as PoE power, IP camera support and built-in protections to ensure high performance and reliability, with the following features:

  • Gigabit ports: 5 10/100/1000 Mbps ports

  • PoE OUT ports: 4 IEEE 802.3af compliant ports

  • PoE IN port: 1 IEEE 802.3af/at compliant port

  • Throughput: Up to 2000 Mbps (full-duplex)

  • Lightning protection: Up to 6 kV

  • Maximum PoE power: 22 watts

  • Jumbo frames: Support up to 9K

  • MAC address table: 2K

  • Mode of operation: plug-and-play, store-and-forward

Do you have questions about this product or did you not find what you were looking for? Ask us!
IP-Com PoE 5-Port 10/100/1000Mbps Gigabit Switch G1105PD
€32.34
€32.34

€32.34
Tax included
Items Available: 27
Further availability of the manufacturer
€32.34

Buy it within and receive it from Wednesday, 19 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

IP-Com PoE 5-port 10/100/1000 Mbps Gigabit Switch

With PoE support, the switch can power devices such as IP cameras and access points via a single Ethernet cable, reducing installation costs and improving efficiency. The maximum PoE output power is 22 W, ideal for medium- and long-distance surveillance scenarios.

Optimized network performance

With a 2K MAC table, store-and-forward capabilities and jumbo frame support, it ensures high transfer rates and smooth transmission even for large files. It is perfect for environments that require continuous and uninterrupted HD video streaming.

Protection and reliability

The switch is designed to withstand harsh environmental conditions with its surge and lightning protection. It is also compact and easy to install in outdoor waterproof boxes, making it a versatile choice for indoor and outdoor applications.

  • Surveillance systems in parks, communities and industrial complexes

  • Enterprise networks requiring stable and secure connections

  • Network extensions for connections up to 325 meters

Hardware Specifications

Transmission media 10Base-T: CAT3 UTP or better
100Base-TX: CAT5 UTP or better
1000Base-T: CAT5e UTP or better
Dimensions 100x100x26 mm (WxDxH)
Material Metal

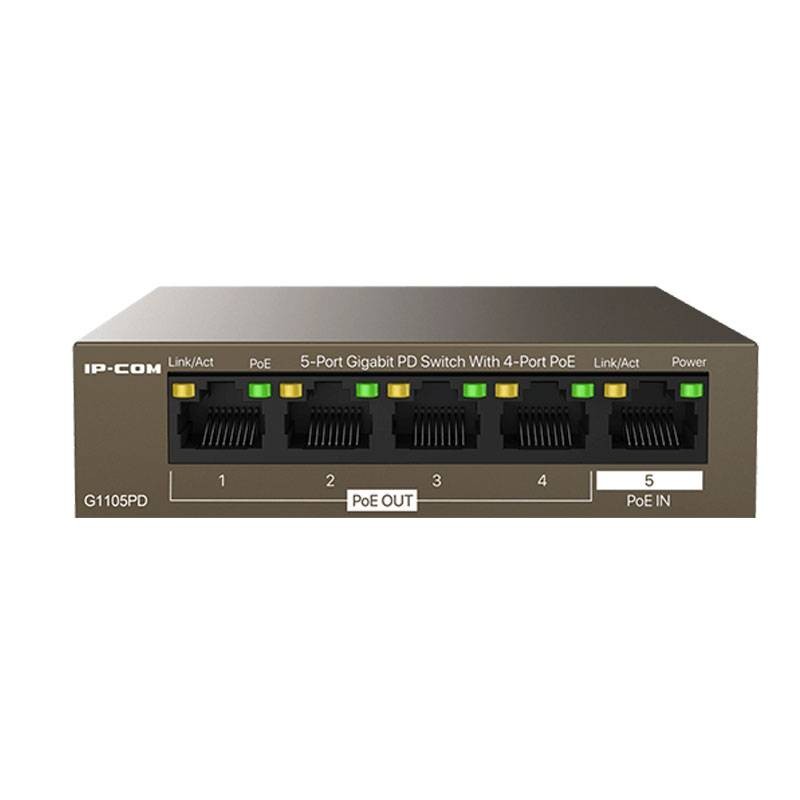

LED Indicators 1 x power LED indicator
4 x PoE LED indicator
5 x Link/Act LED indicator


Service Port Description

Fixed Ports 5 RJ45 ports with 10/100/1000 Mbps auto negotiation (Auto MDI/MDIX support)
PoE Output PoE standard: IEEE 802.3af
Maximum single port output power: 15.4 W
Maximum switch output power: 22 W
PoE in PoE standard: IEEE802.3af, IEEE802.3at
PoE ports: 5
PoE input: 50 - 57 V DC, 0.6 A


Protection

Lightning protection of ports 6 kV
Electrostatic protection Air discharge: ±8 kV
Contact discharge: ±6 kV


Performance

Forwarding modes Storage and forwarding
Switching capacity 10 Gbps
Packet forwarding rate 10 Mbps: 14880 pps
100 Mbps: 148800 pps
1000 Mbps: 1488000 pps
Buffering 1 MB
MAC address table 2 thousand
Giant frame 9 thousand


Installation Method

Method Desk mounting


Environment

Operating temperature 0°C - 45°C
Storage temperature -40°C - 70°C
Operating humidity (10% - 90%), non-condensing
Storage humidity (5% - 90%), non-condensing

There are no reviews

Data sheet

Type:
Network Switch
System:
IP
Doors:
4+1
