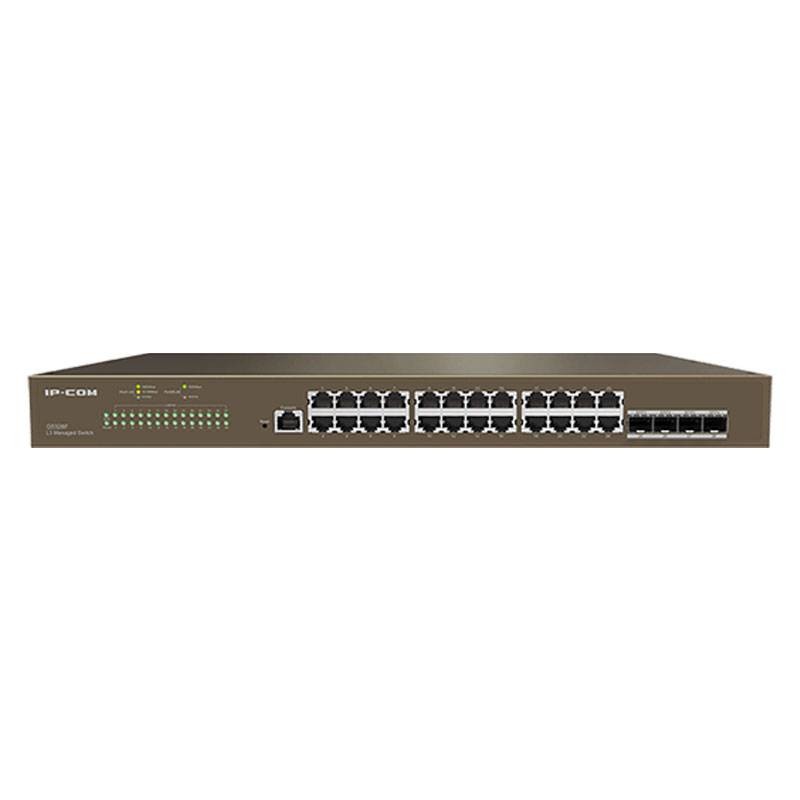

L3 Cloud IP-Com 24 Port 10/100/1000 Mbps Managed Switch G5328F
67V G5328F
Layer 3 Cloud IP-Com Managed Switch, designed for medium to large enterprise networks, campus and high-performance aggregation applications. It offers a scalable and reliable solution for network core or aggregation, with the following features:
-
24 10/100/1000 Mbps Gigabit Ethernet ports
-
4 SFP 1000 Mbps ports
-
Layer 3 routing: Support for static IPv4 routing for inter-layer connections
-
Switching capacity: 56 Gbps
-
MAC table: 16K with automatic learning
-
Buffer: 12 Mb
€224.43
€224.43
Tax included
Tax included
Items Available: 5
: 3
Layer-3 managed switch, to meet the demand for high-performance access, the switch provides 24 separate 10/100/1000 Mbps Ethernet Base-T ports and 4 separate 1000 Mbps SFP Base-X ports. With an innovative hardware structure and software platform, it is equipped with powerful processing capability and comprehensive security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or core layer of medium and large networks such as enterprises and campuses.
Professional dual 6 kV lightning protection
Provides dual 6 kV port and lightning protection and supports multiple protection functions, such as PSE short-circuit protection, PoE overload protection, overtemperature and overvoltage protection, and overvoltage protection.
Large 12-M Buffer
Provides a large 12 Mb buffer that can meet the requirements of network applications of large traffic bursts such as engine search, IPTV, P2P downloads, and no packet loss during traffic bursts.
Advanced Security
-
Protection against attacks: Defense against DoS, ARP, and IP/MAC filtering for enhanced security
-
Access Control List (ACL): Customizable filtering by packets
-
QoS management: Traffic prioritization for sensitive applications such as VoIP and video
Management and Maintenance.
-
ProFi cloud management: Remote configuration via ProFi app, with support for VLAN, DHCP Snooping and network status monitoring
-
CLI and SNMP support: Advanced management via console, Telnet and SNMP
Hardware Specifications
| Feature | Detail |
|---|---|
| LED Indicators | One Link/Act LED indicator for each port One Power LED indicator for each device One SYS LED indicator for each device |
| Interfaces | 24 Ethernet 10/100/1000 Base-T ports (data/power) 4 SFP 1000 Base-X ports (data) |
| Lightning protection | 6kV |
| Switching capacity | 56 Gbps |
| Packet forwarding rate | 41.7 Mpps |
| Buffering | 12 Mbit |
| MAC address table | 16 thousand |
| Input voltage | 100-240 VAC - 50/60 Hz |
| Dimensions | 440x178.8x44 mm (W-A-P) |
| Operating temperature | 0/+45 degrees |
| Storage temperature | -40/+70 degrees |
| Operating humidity | 10/90% RH, non-condensing |
| Storage humidity | 5/90% RH, non-condensing |
Software specifications
| Feature | Detail |
|---|---|
| Security Features. | Supports ARP receive limit Supports rejection of unknown MAC addresses Supports defense against DoS attacks Supports 802.1x security authentication Supports Radius authentication |
| L3 routing | Supports VLAN-based routing Supports static IPv4 routing Supports static ARP |
| Port Aggregation | Supports static aggregation Supports dynamic aggregation LACP |
| Cloud Management | Supports configuration deployment from IMS cloud platform Supports log reporting and error detection Supports remote maintenance: reboot, backup, upgrade |
| Local display management | Supports router, switch, AP, IP camera detection Supports automatic topology generation Supports online/offline status detection for devices Supports remote IP camera reboot |
| Management and maintenance | Supports Telnet configuration, console port configuration Supports SNMP V1/V2/V3 Supports WEB management and maintenance Supports Ping/Tracert detection |
There are no reviews
Data sheet
- Type: Network Switch
- System: IP
- Doors: 24+4
