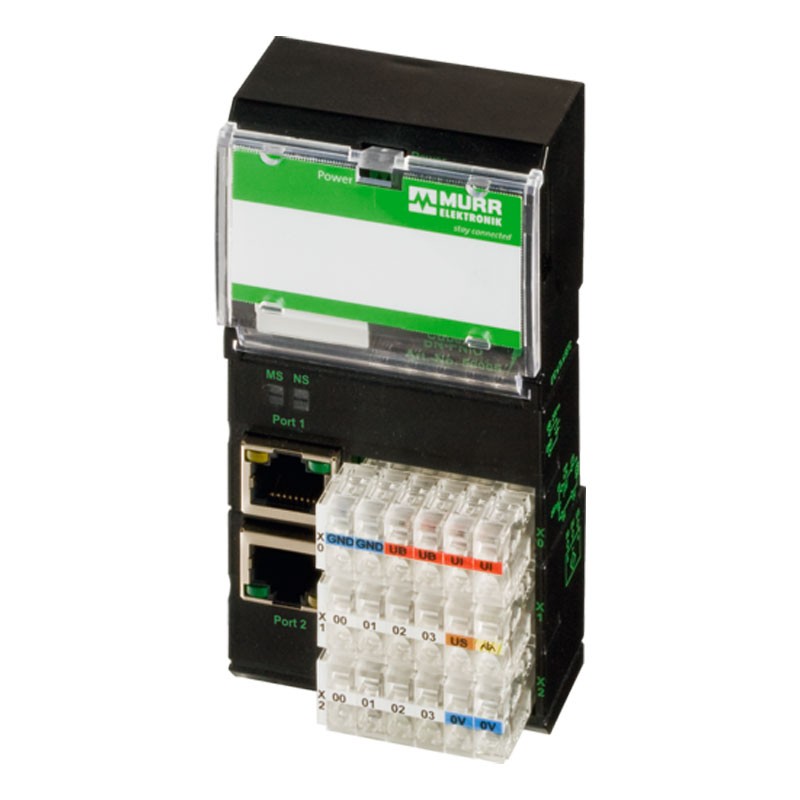

Murr Cube20 DI8 BN-PNIO IP20 Bus Node Module 56006
MUE 56006
4048879049481
Novi bus Murr Cube20 module with the following features:
- Galvanic separation: 500V DC between I/O and system electronics
- US sensor power supply: 24V DC (EN 61131-2)
- Current consumption: max. 150 mA
- Operating voltage: 24V DC (EN 61131-2)
- Input filter: 1 ms
Murr Cube20 DI8 BN-PNIO IP20 Bus Node Module 56006
€314.91
€314.91
Tax included
Tax included
Items Available: 1
Features:
- Mounting type: pluggable onto DIN rail (EN 60715).
- Temperature range: 0/+55 degrees (storage temp -20/+85 degrees)
- Degree of protection: IP20
- Field bus: Ethernet 10/100 Mbit/s; 2× RJ45 (female)
- Module capacity: max. 15
- Machine Option Management
- I/O expandability: max. 1 024 Byte (Input), max. 1 024 Byte (Output)
- Sensor-system/actuator power supply: 4× plug-in spring terminals, max. 2.5 mm² (max. 12 A)
- I/O inputs: 8× plug-in spring terminals, max. 2.5 mm²
- Internal system connection 4× plug-in spring terminals, max. 2.5 mm² (max. 12 A)
- Communication status via LED and BUS
- Diagnostics via LEDs per module
- Diagnostics via BUS per module and channel
- Monitoring - undervoltage
- Short circuit and overload

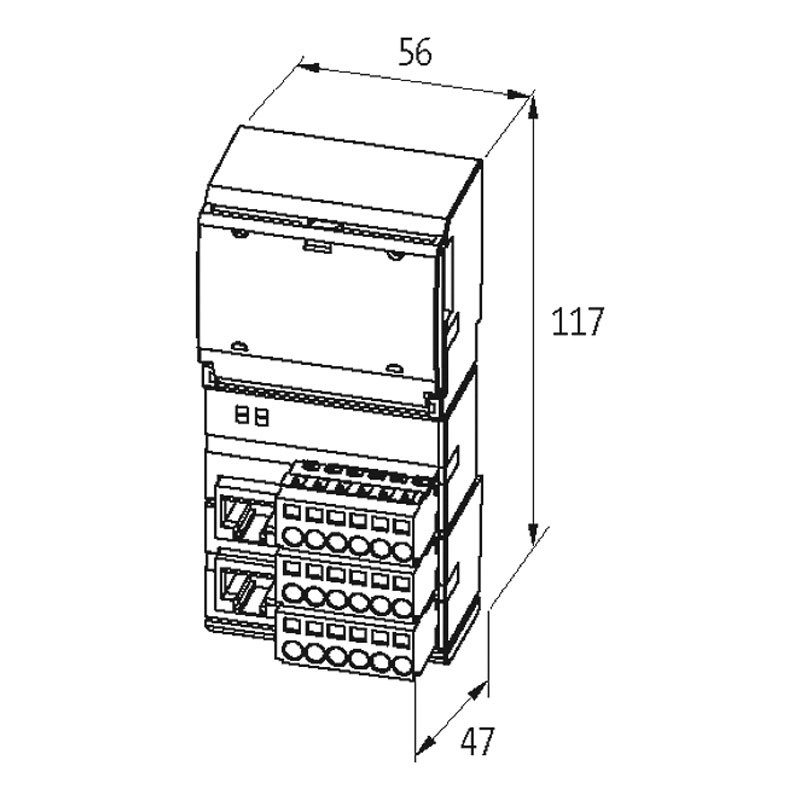

- Dimensions: 117×56×47 mm (H×W×D)
There are no reviews
Data sheet
- Type:
- Digital modules
- Voltage:
- 24V
- Degree of protection:
- IP20
