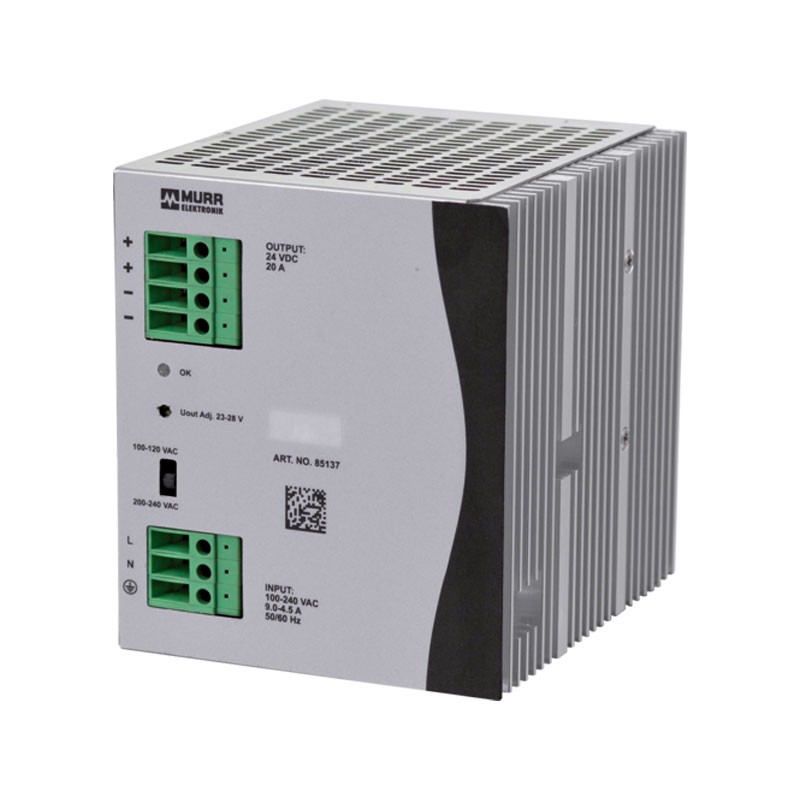

Murr ECO-RAIL-2 24V/20ADC single-phase power supply 85137

Murr Elektronik
MUE 85137

Murr single-phase power supply with the following characteristics:

  • Input voltage: 90...132 V AC/173...264 V AC
  • Input current: 7.8 A (100 V AC); 4.0 A (200 V AC)
  • Inrush current after 1 ms: max. 40 A (230 V AC)
  • Frequency: 50 to 60 Hz
  • Input fuse (internal): 12 A (T)
  • Output voltage: 24 V DC ±1%; 23...28 V adjustable
Do you have questions about this product or did you not find what you were looking for? Ask us!

Murr ECO-RAIL-2 24V/20ADC single-phase power supply 85137

€187.61
€187.61

Murr ECO-RAIL-2 24V/20ADC single-phase power supply 85137

€187.61
Tax included
Items Available: 6
Further availability of the manufacturer

Murr ECO-RAIL-2 24V/20ADC single-phase power supply 85137

€187.61

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Output:

  • LED indicator: LED (green) for output voltage
  • Output current: 20A (+40 °C); 16 A (+55 °C)
  • Min. hold time: 15 ms (115 V AC); min. 20 ms (230 V AC)
  • Residual ripple: max. 50 mV eff/rms
  • Peaks: max. 100 mV ss/pp
  • Protective device: short-circuit and overload protected
  • Parallel/series use: no/yes (max. 2 units)


Features:

  • Standard IEC 61010-2-201, EN 61204-3, EN 61000-3-2
  • Mounting method DIN rail mountable TH35 (EN 60715)
  • Temperature range 0...+40 °C, ...+55 °C derating (storage temperature -20...+85 °C)
  • Relative humidity 20...90%, non-condensing
  • Protection IP20
  • Efficiency 89% (115 V AC); 90% (230 V AC)
  • Connection Screw terminals

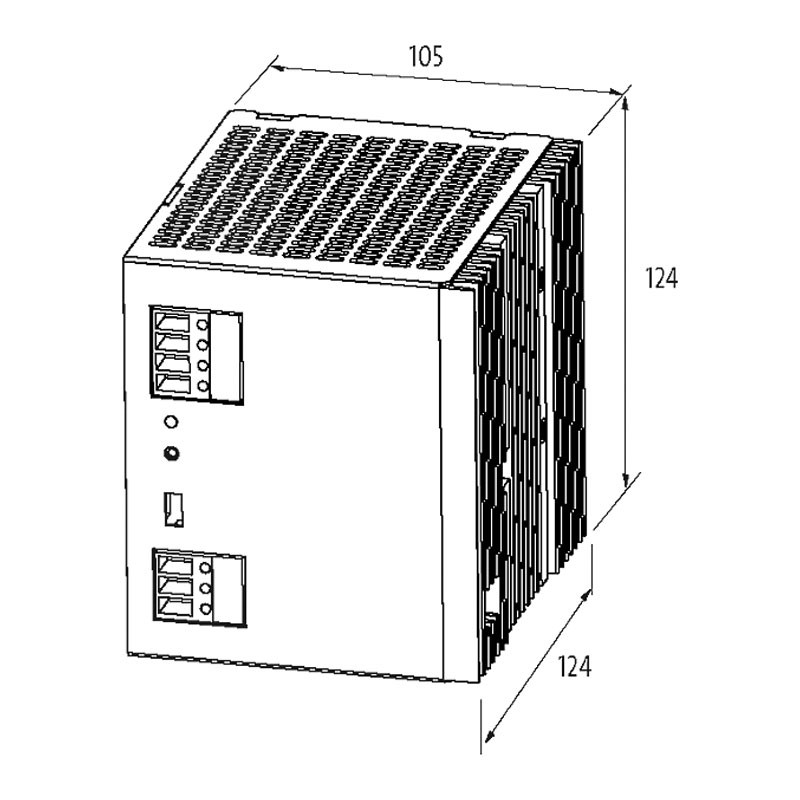

  • Dimensions H×W×D 124×105×124 mm

There are no reviews

Data sheet

Type:
Power supplies
Voltage:
24V
Degree of protection:
IP20
Amps:
8A
Connection:
Single-phase
