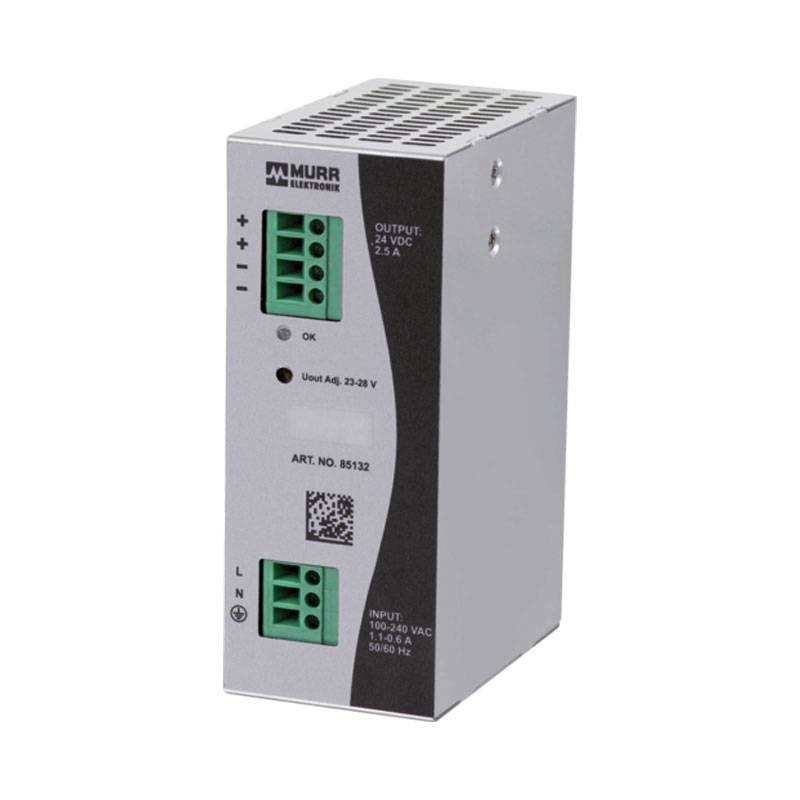

Murr ECO-RAIL-2 single-phase power supply unit 2.5A 24DC 85132
MUE 85132
Murr ECO-RAIL-2 single-phase power supply unit 2.5A, current IN: 90-264VAC, current OUT: 24V/2.5ADC.
Murr ECO-RAIL-2 single-phase power supply unit 2.5A 24DC 85132
€57.56
€57.56
Tax included
Tax included
Items Available: 2
Features:
- IEC 61010-2-201, EN 61204-3, EN 61000-3-2 standards.
- Type of mounting pluggable onto DIN rail TH35 (EN 60715)
- Temperature range 0/+40 °C...+55 °C derating (storage temp -20/+85 °C)
- Relative humidity 20...90%, non-condensing
- Degree of protection IP20
- Efficiency 84% (115 V AC); 85% (230 V AC)
- Connection Screw terminals

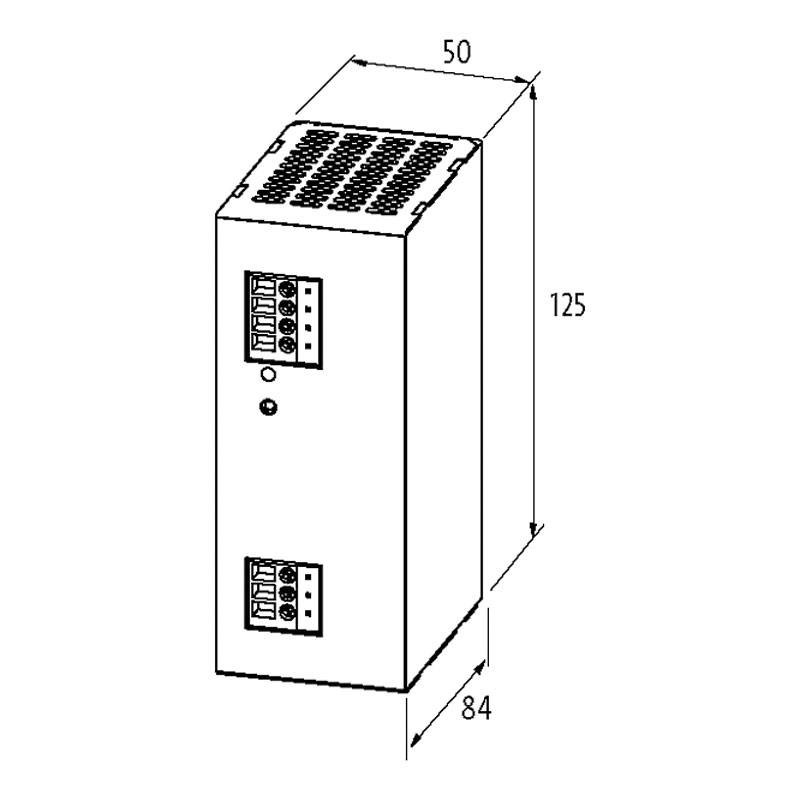

- Dimensions H×W×D 125×50×84 mm
Output:
- Output voltage 24 V DC ±1%; 23...28 V adjustable
- LED LED indicator (green) for output voltage
- Output current 2.5 A (+40 °C); 2.0 A (+55 °C)
- Hold time min. 20 ms (115 V AC); min. 100 ms (230 V AC)
- Residual ripple max. 10 mV eff/rms
- Peak max. 50 mV ss/pp
- Protective device protected against short circuit and overload
- Parallel/series use no/yes (max. 2 units)
Input:
- Input voltage 100...240 V AC
- Input current 1.3 A (100 V AC); 0.6 A (240 V AC)
- Peak current at power-on after 1 ms max. 20 A (230 V AC)
- Frequency 50...60 Hz
- Input fuse (internal) 4 A (T)
There are no reviews
Data sheet
- Type:
- Power supplies
- Voltage:
- 24V
- Degree of protection:
- IP20
- Amps:
- 2.5A
- Connection:
- Single-phase
