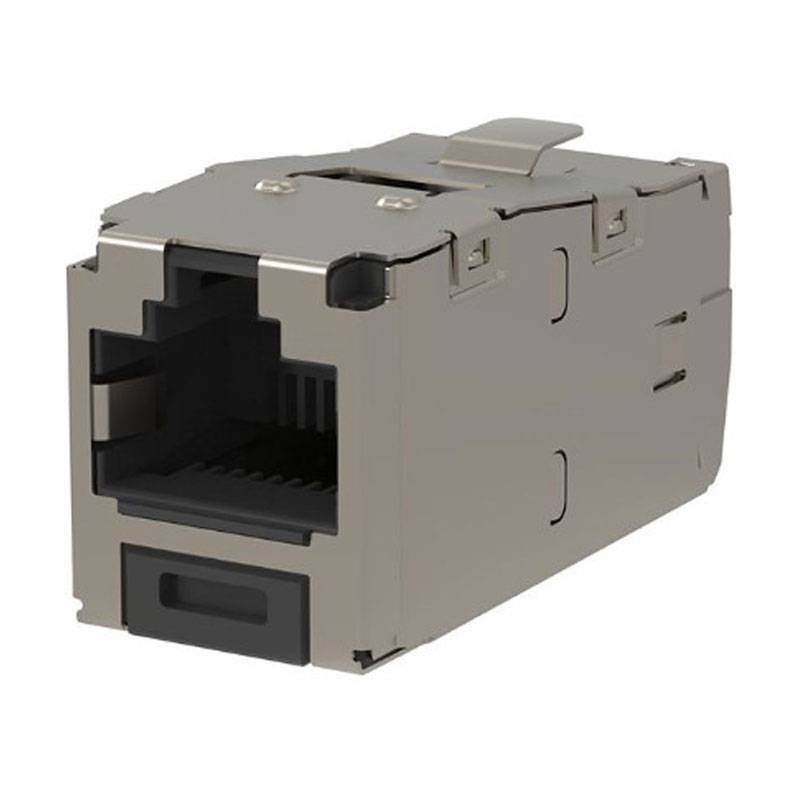

Panduit Cat 6 TG Shielded RJ45 Module Adapter CJS688TGY
PAN CJS688TGY
RJ45 Panduit Cat 6 TG shielded RJ45 adapter with the following features:
- Performance level: Category 6
- Termination Style: TG style
- Shield Type: Shielded
- Body Material: Polycarbonate
- Contact material: Phosphor bronze plated
Each jack is individually serialized for traceability and is compatible with Mini-Com shielded modular patch panels and faceplates.
Panduit Cat 6 TG Shielded RJ45 Module Adapter CJS688TGY
€11.90
€11.90
Tax included
Tax included
Items Available: 30
: 24

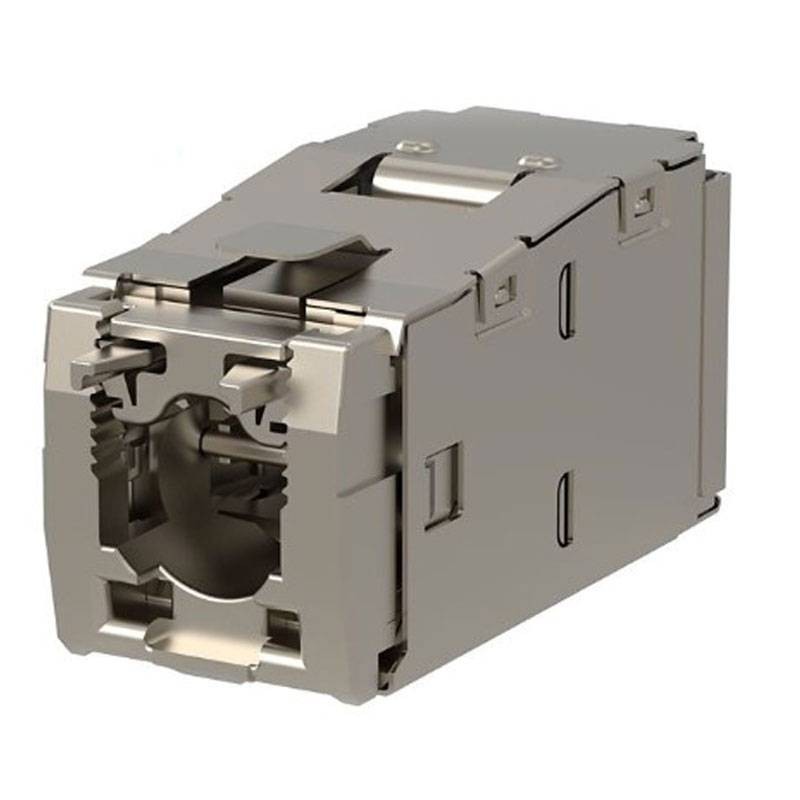

The RJ45 TG shielded Mini-Com Cat 6 RJ45 jack module is designed to terminate 4-pair, 22-26 AWG twisted pair cables. TG-style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com shielded modular patch panels and faceplates.
Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA channel requirements to support 10GBASE-T transmission over twisted-pair cabling systems in a 4-connector configuration up to 100 meters at sweep frequencies from 1 to 500 MHz.
Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6A component requirements at sweep frequencies up to 500 MHz, complies with ANSI/TIA-1096A, complies with IEC 60603-7 and IEC 60512-99-001, rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4 proposed for up to 100 W, complies with UL 1863 and RoHS.
Features:
- Performance level: Category 6
- Product Type: Jack Module
- Connector Type: Standard Jack Module
- Termination Style: TG Style
- Shield Type: Shielded
- Body Material: Polycarbonate
- Contact Material: Phosphor Bronze Plated
- Module Type: Mini-Com
- Operating temperature: -10/+75 degrees
- Storage temperature: -40/+75 degrees
- Heat resistant
- Depth: 38.1 mm
- Height: 18.8 mm
- Width: 15.7 mm
- Length: 38.1 mm
