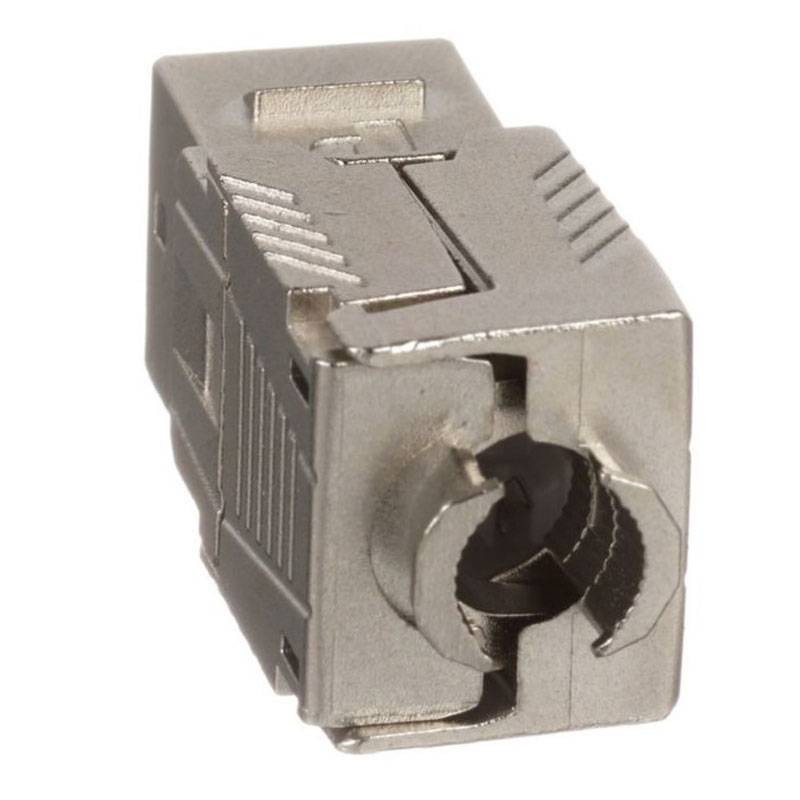

Panduit Keystone Cat 6A TG Shielded RJ45 Adapter KJS6X88TC
PAN KJS6X88TC
Panduit Cat 6A TG shielded RJ45 adapter with the following characteristics:
- Performance level: Category 6A
- Wiring Diagram: Model T568A/T568B
- Shield type: STP shielded
- Depth: 41.6 mm
- Height: 20.5 mm
- Length: 41.6 mm
- Width: 20.5 mm
Panduit Keystone Cat 6A TG Shielded RJ45 Adapter KJS6X88TC
€14.82
€14.82
Tax included
Tax included
Items Available: 621
: 400
The Cat 6A keystone shielded RJ45 jack adapter is designed to terminate 4-pair, 22-24 AWG shielded twisted pair cables. Shielded jack modules use a forward-moving termination method to optimize performance. Die-cast housing provides a rugged design to protect against physical and electromagnetic damage.
Features:
- Performance Level: Category 6A
- Connector Type: Standard Jack Module
- Housing material: Die-cast
- Contact material: Phosphor bronze plated
- Wiring Diagram: Model T568A/T568B
- Shield Type: Shielded STP
- Operating temperature: -10/+60 degrees
- Heat resistant
Meets ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA channel requirements to support 10GBASE-T transmission over twisted-pair cabling systems in a 4-connector configuration up to 100 meters at sweep frequencies from 1 to 500 MHz.
Meets ANSI/TIA-568.2-D and ISO 11801 Category 6A component requirements at sweep frequencies up to 500 MHz, complies with ANSI/TIA-1096A, is IEC 60603-7 and IEC 60512-99-002 compliant, rated for 750 cycles with IEEE 802.3af, 802.3at and 802.3bt Type 1, 2, 3 and 4 for power up to 100 W, and RoHS compliant.
There are no reviews
Data sheet
- Type:
- Sockets and plugs
