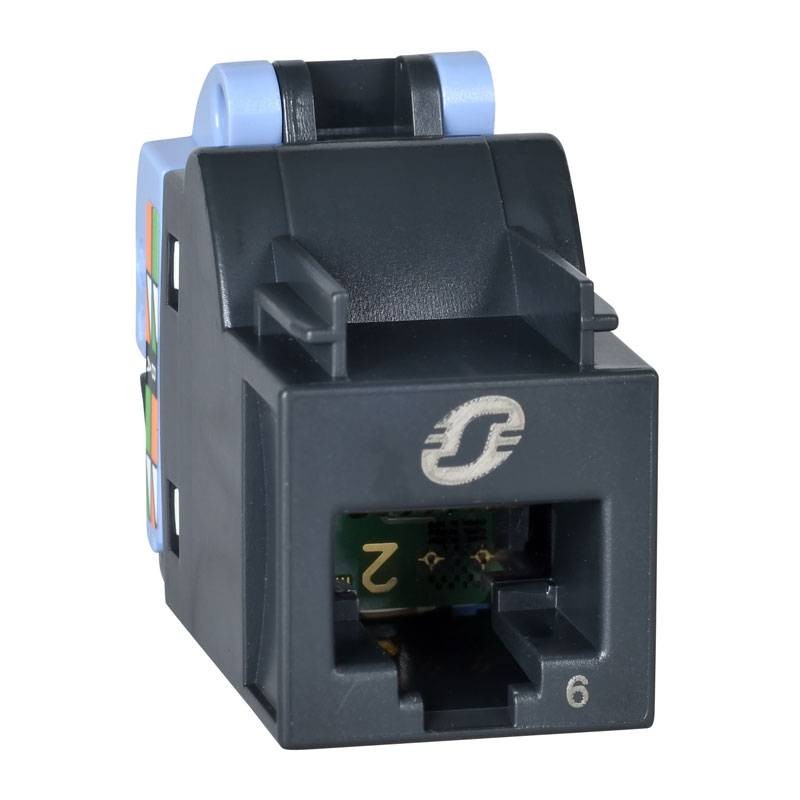

Schneider Unshielded Connector One-Piece Actassi S-One RJ45 VDIB17726U12

Schneider
SNR VDIB17726U12 3606480384608

Schneider unshielded one-piece Actassi S-One RJ45 connector with the following characteristics:

  • Current rating: 1.5 A at 25 °C
  • Voltage: 1000 V AC/DC insulation between contacts
  • Contact resistance: 20 mOhm
  • Durability: 750 cycles
  • Traction: 50 N during 60 s
  • Cable outer diameter: 0.91.4 mm
  • Compatible LAN cable types: UTP
  • Category: 6
Do you have questions about this product or did you not find what you were looking for? Ask us!

Schneider Unshielded Connector One-Piece Actassi S-One RJ45 VDIB17726U12

€9.23
€9.23

Schneider Unshielded Connector One-Piece Actassi S-One RJ45 VDIB17726U12

€9.23
Tax included
Items Available: 85
Further availability of the manufacturer

Schneider Unshielded Connector One-Piece Actassi S-One RJ45 VDIB17726U12

€9.23

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

It is a state-of-the-art RJ45 connector for structured cabling system solutions for buildings and data centers.

Its one-piece design enables faster and safer installation and provides a high level of performance in Cat5e. It is an RJ45 connector that requires no tools and is part of the full ACTASSI range that enables the creation of complete cabling solutions with extended system warranty. It is designed for shielded infrastructure and is certified to the most widely used standards (IEC, TIA, UL).

Green Premium (RoHS/REACH) compliant. Ready to use. S-ONE DPM footprint connector.

One-piece design: easy to handle and connect. Supplied open/ready for use. U-shape for cable insertion simplifies the installation process. Built-in ground contact provides double grounding.

Intelligent retainer automatically locks cable and provides 360-degree grounding

Central cable entry for optimized performance. IDC protected so no damage to cables or fingers.

Component certified according to ISO/IEC 60603-7. Audible "Click" to confirm that S-ONE has been closed and connected. Quick release button to reopen jack in case of wiring check or change request.

Cat5e shielded RJ45 connector requiring no tools, S-ONE footprint, one-piece design: easy to handle and connect

Supplied open and ready to use. U-shape for cable insertion simplifies the installation process

Features:

  • Contact pins: 8 pins of copper and gold alloy complying with IEC 60603-7
  • Loss: >= 50 dB - >= 68 - 20 x log(f) dB at 1100000 kHz
  • Protocols: VoIP (Voice IP) - PoE+ (Power over Ethernet) - 4PPoE 100 W (Power over Ethernet)
  • Dimensions: height 28 mm - length 33 mm - width 18 mm

Ottimo Consigliato - Servizio clienti efficente e materiale disponibile

Read all reviews

Data sheet

Type:
