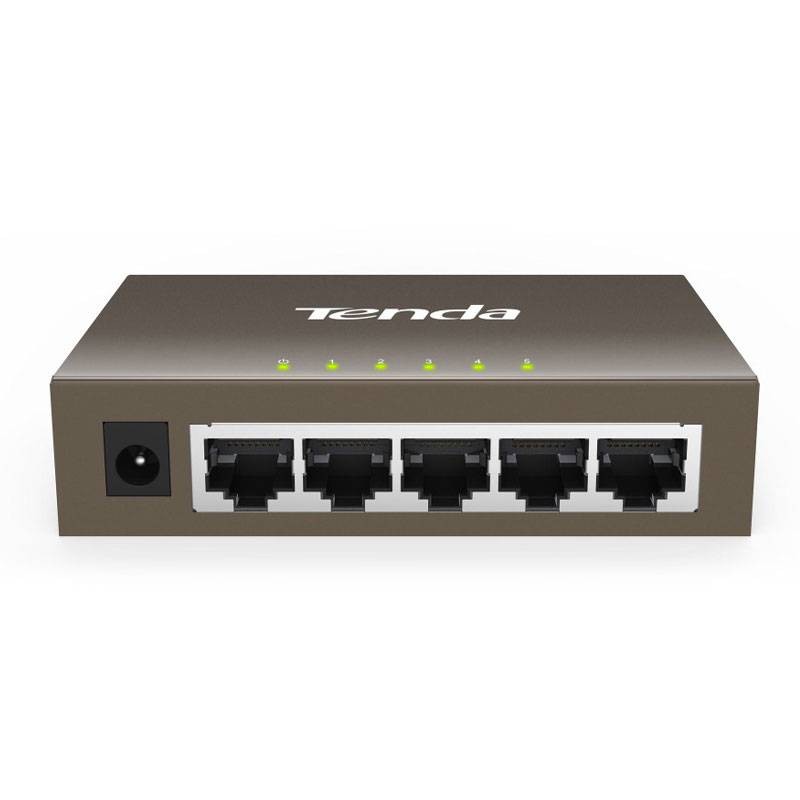

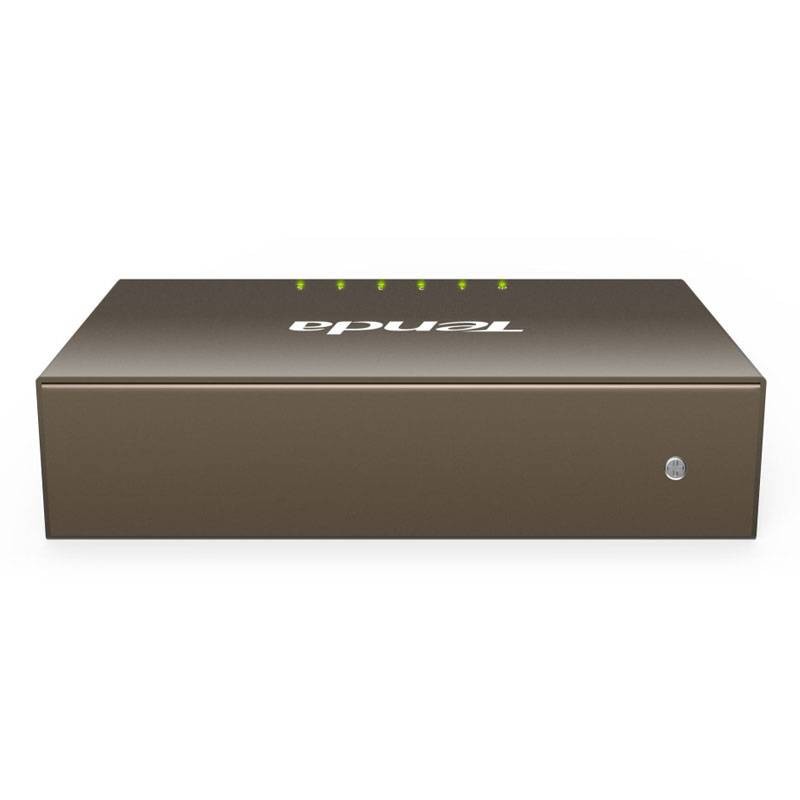

Tenda 5-Port 10/100/1000Mbps Gigabit Desktop Switch TEG1005D
67V TEG1005D
6932849431261
Tenda Gigabit Desktop Switch, designed for home and business networks, lightning protection, jumbo frame support and user-friendly design, offers a reliable solution for data transmission, video surveillance and daily use, with the following features:
-
5 Gigabit Ethernet 10/100/1000 Mbps ports
-
6 kV lightning protection
-
15K jumbo frame support
-
Backplane bandwidth: 10 Gbps
-
Forwarding Mode: Store-and-Forward
€17.17
€17.17
Tax included
Tax included
Items Available: 47
: 20
Tenda Desktop Gigabit Switch 5 Ports 10/100/1000Mbps
Integrates a professional lightning protection circuit that offers 6KV protection on each port to effectively prevent lightning-induced current from damaging the ports or the switch and to ensure system stability. The housing made of 0.8mm galvanized industrial steel provides excellent durability and has good heat dissipation capability, ensuring stable operation and more reliable security. The 5 Gigabit RJ45 ports with auto-negotiation support wire-speed speeds and a large-capacity cache, ensure smooth surveillance video playback and stable data transmission around the clock.
High performance
With 10 Gbps backplane bandwidth and store-and-forward forwarding support, the TEG1005D ensures stable data transmission, ideal for applications such as HD video playback, video surveillance and large file sharing.
Protection and reliability
The integration of 6 kV lightning protection on all ports and power supply protects the switch from electrical discharges, improving system stability and extending equipment life.
Hardware Specifications
| Feature | Detail |
|---|---|
| Color | Black |
| LAN port speed | 10/100/1000 Mbps |
| Interface | 5 RJ45 10/100/1000 Mbps RJ45 ports auto-negotiation, auto MDI/MDIX |
| LEDS | 1 LED x power 5 LEDs x 10/100/1000Mbps Link/Act |
| LAN port number | 5 |
| MAC table size | 2k |
| Backbound bandwidth | 10 Gbps |
| Access control | CDMA/CD |
| Current voltage | 100-240V AC |
| Power consumption | 2,5 W |
| Operating temperature | -10/+45°C |
| Storage temperature | -40/+70°C |
| Operating humidity | 10/90% RH without condensation |
| Storage humidity | 5/90% RH non-condensing |
| Dimensions | 100x25x64 mm (W-A-P) |
Package Contents.
| Element | Detail |
|---|---|
| Desktop 5-port Gigabit Switch | Included |
| 5V 0.6A power supply | Included |
| Instruction manual | Included |
There are no reviews
Data sheet
- Type: Network Switch
- System: IP
- Doors: Five
