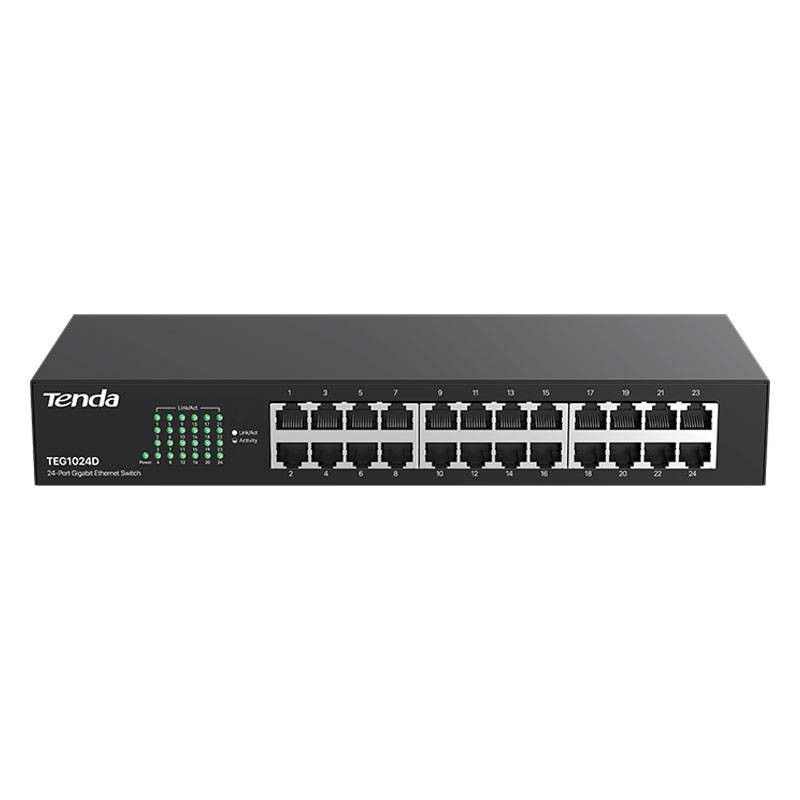

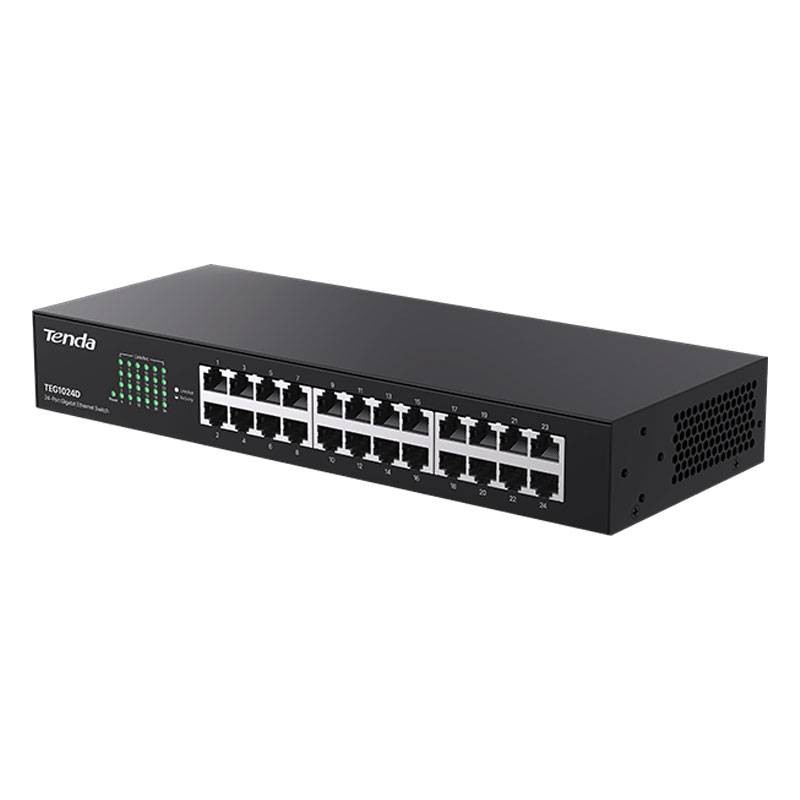

Tenda Gigabit Ethernet Switch 24-port 10/100/1000 Mbps 100-240V TEG1024D
Tenda Gigabit Ethernet Switch is a powerful and versatile solution for managing high-speed networks. Ideal for business, office and professional environments, it offers advanced lightning protection, stable operation and a compact design with rack, wall or desktop mounting options, with the following features:
-
Number of ports: 24 Gigabit RJ45, fast data transfer up to 1000 Mbps
-
Power supply: 100-240V AC, 50/60Hz
-
Switching capacity: 48 Gbps, efficient transmission without bottlenecks
-
Lightning protection: 6KV, enhanced security for network infrastructure
-
Low power consumption: <12W, high operating efficiency
-
Dimensions: 294x120x44mm

Tax included
Tenda Switches: Gigabit Speed and Stability with High Performance Chip
High-speed, low-latency networking
The 24 Gigabit Ethernet ports provide ultra-fast data transmission, enabling stable video streams, fast file transfers, and a smooth network experience in any context.
High-performance chip for enhanced stability
Equipped with an advanced chip, it offers powerful processing capacity and reliable operation, minimizing network interruptions.
EtherneT Gigabit Switch: 6KV Lightning Protection and Versatile Installation.
Advanced Lightning Protection
With 6KV protection on the ports and 4KV on the power supply, the switch is designed to withstand inductive lightning strikes, ensuring a secure network even in adverse weather conditions.
Flexible and easy installation
With support for rack, wall or desktop mounting, the switch's compact design fits easily into any environment, offering quick and configuration-free installation.
Tenda Ethernet Switch Technical Specifications
Hardware
Feature | Value |
---|---|
Network Standard. | IEEE 802.3 IEEE 802.3u IEEE 802.3 3x IEEE 802.3ab |
LED Indicator | Power Link/Act |
Interfaces | (24) 1GE RJ45 ports |
Transmission media | CAT5/5e UTP |
Dimensions | 294 x 120 x 44 mm |
Protection level | Port: 6 KV Power: 4 KV |
Switching Interval | 48 Gbps |
Forwarding rate | 35.7 Mpps |
Buffer | 4 Mb |
MAC address table | 8K |
Power method | 100-240 VAC 50/60 Hz |
Power Consumption | Maximum: <12W |
Mounting | On rack On desktop Wall mounting |
Operating temperature | 0 / +45 degrees |
Operating humidity | 10 / 90% non-condensing |
Certifications | FCC, CE, RoHS |
Software
Feature | Value |
---|---|
Protocols | CDMA/CD |
MAC address learning | Automatic learning and updating |
Data sheet
- Type: Network Switch
- System: IP
- Doors: 24
