Tenda PoE 5-Port 10/100/1000Mbps Gigabit Switch TEG1105PD
67V TEG1105PD
6932849431827
Compact and versatile Tenda Gigabit PoE switch designed to simplify the deployment of wired networks with PoE devices. Allows you to power IP cameras, access points and other PoE devices without the need for a separate power supply. Ideal for low-power wireless surveillance and coverage applications, with the following features:
-
5 Gigabit Ethernet 10/100/1000 Mbps ports
-
4 PoE OUT ports (data/power)
-
1 PoE IN port (data power)
-
PSE & PD functionality: Powers PoE devices (PSE) and powers itself via PoE (PD)
-
Gigabit speed: Stable transmission up to 200 meters for medium/long distance scenarios
-
Switching capacity: 10 Gbps
-
MAC table: 2K with automatic update
-
Protection: 6 kV lightning strikes on all ports
€31.70
€31.70
Tax included
Tax included
Items Available: 17
Tenda PoE 5-Port 10/100/1000Mbps Gigabit Switch

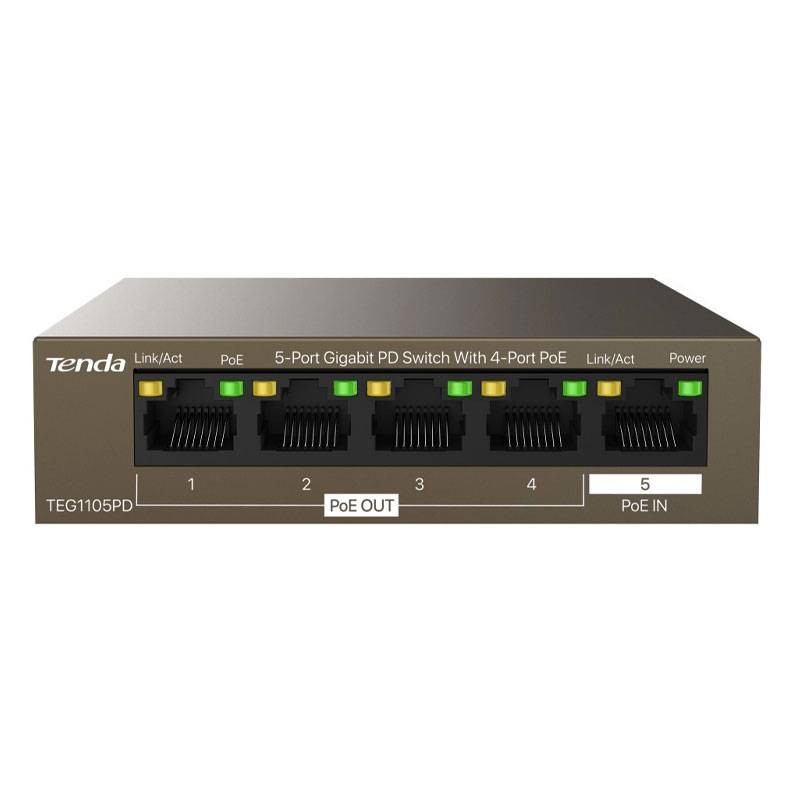

PoE 5-port Gigabit PD switch, with 4 PoE OUT ports (ports 1 to 4) and 1 PoE IN port (port 5); The switch can be powered via IEEE 802.3af compliant PSE standard via port 5 through an Ethernet cable and provide necessary power to low-power APs and IP cameras via ports 1 to 4.
High performance and convenience
Gigabit speed without slowdown up to 200 meters, stable transmission. Does not require a dedicated, stand-alone power supply, is fully plug & play; 6KV lightning protection, always stable operation. Compact and portable, can be easily installed in a waterproof box to be placed outside. Supports smooth and no-slow transmission with a switching capacity of 10 Gbps and forwarding speed of 7.44 Mpps. Support for jumbo 9K frames improves efficiency in handling large files and transmitting HD video.
Gigabit speed without slowdown up to 200 meters, stable transmission
As a switch, the switch can extend the data transmission distance up to a maximum of 325 meters and offer long-distance PoE power through multiple PoE ports. Suitable for medium- and long-distance wired monitoring scenarios or low-power wireless coverage scenarios.
Low cost, convenience of use and stability
TEG1105PD does not require a dedicated, stand-alone power supply and is fully plug & play; it also allows the use of a reduced number of cables. Therefore, the cost of network implementation can be greatly reduced while ensuring the quality of the project.
6KV lightning protection, always stable operation
This switch implements a protection system against short circuits and surges that can be caused by lightning for all ports, allowing constant operation.
Hardware Specifications
| Feature | Detail |
|---|---|
| LAN port speed | 10/100/1000 Mbps |
| LAN port number | 5 |
| Number of RJ-45 ports | 5 |
| Number of POE ports | 5 |
| LED Indicators | 1x Power LED indicator 4x PoE LEDs 5x Link/Act LED indicators |
| Switching capacity | 10 Gbps |
| Packet forwarding rate | 7.44 Mpps |
| Buffer memory | 1 Mb |
| Jumbo frame | 9K |
| MAC table size | 2k |
| Maximum single POE port power | 15,4 W |
| Operating Temperature | 0/+45 degrees |
| Storage temperature | -40/+70 degrees |
| Operating humidity | 10/90% non-condensing |
| Storage humidity | 5/90% non-condensing |
| Dimensions | 100x26x100 mm (W-H-P) |
Package Contents.
| Element | Detail |
|---|---|
| I-SWHUB Switch TEG1105PD | Included |
| User's manual | Included |
| Power supply | Included |
There are no reviews
Data sheet
- Type: Network Switch
- System: IP
- Doors: 4+1
