M710E Notifier Addressed Input Module 1
NOT M710E

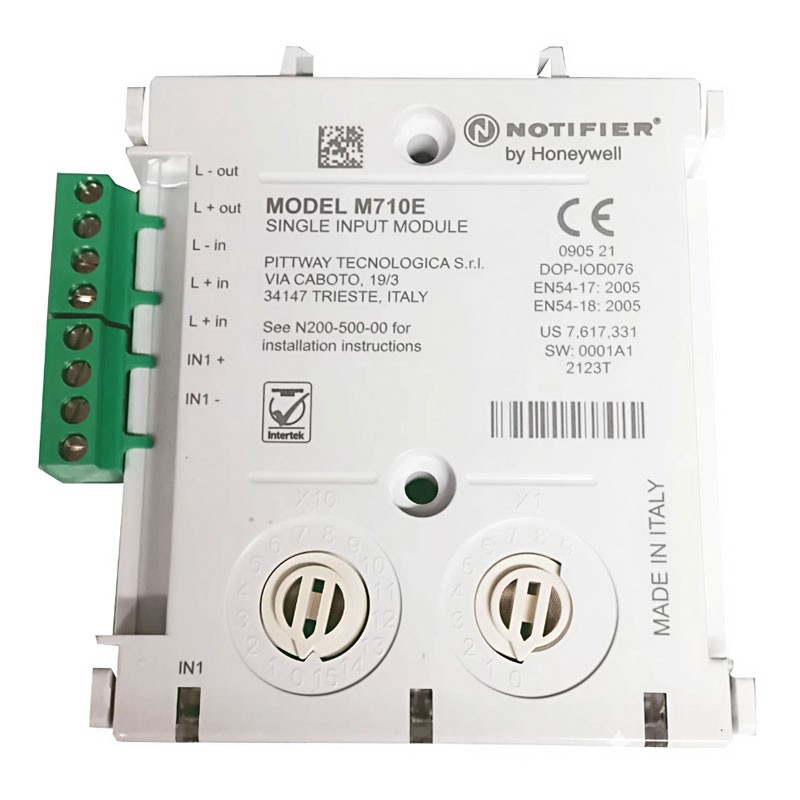

Notifier addressed input module 1 for use with analog addressed control panels. The controlled input will be on a supervised line. The module is addressed by means of rotary switches with numbering from 01 to 159.
M710E Notifier Addressed Input Module 1
€49.74
€49.74
Tax included
Tax included
Items Available: 539
: 60
It is equipped with a green led that blinks in normal conditions and is on in alarm conditions. The module has a short circuit isolator. Integrated DIN rail support. CPR certified according to EN54 parts 17 and 18. 15-30Vdc power supply. Current at rest 310 microA and 510 microA with active led. Operating temperature from -20°C to +60°C. Relative humidity up to 95%.
Microprocessor input modules for addressed systems. M710E and M720E are compatible with all NOTIFIER addressed control panels.
They allow the monitoring of a single input (M710E) or two inputs (M720E) for fire-fighting devices with normally open contacts.
A three-color LED (green/red/yellow) for each address will display the module states. By programming the control unit it will be possible to make them flash or not when interrogated by the same.
All 700 Series modules are equipped with an internal communication loop isolation device.
Advantages:
- NOTIFIER addressed control panels automatically identify these devices as input modules.
- Module addressing is achieved via decimal rotary switches (01-159)
- The module is powered directly from the 2-wire loop of the various NOTIFIER addressable control panels. No additional power supply is required
- Isolation module on the communication loop
- Wide LED viewing angle
- Built-in LED flashes every time a communication is received from the control panel, unless you program it not to flash
- High immunity against electromagnetic interference
- Easy connection thanks to the Plug-in terminals.
Applications:
- These modules can be used to control manual pushbuttons or devices with N.O. clean contact. The controlled circuit can be connected with 47 K Ohm end-of-line resistor.
Installation: Thanks to its particular mechanical design the M710E and M720E modules allow:
- wall mounting, in a special plastic container M200E-SMB
- mounting on standard 35mm x 7,5mm DIN rail by means of integrated fixing clip.
BUILT-IN DISCONNECTION MODULE:
- All 700 series modules are equipped with a loop short circuit monitoring device and isolators. If necessary, the device can be omitted by connecting directly with the positive loop output to terminal 5 instead of terminal 2.
Features:
- Maximum cable section: 2,5 mm2
- Operating voltage: 15 ÷ 30 Vdc. (Communication loop)
- In order to guarantee the correct functioning of the LED it is necessary to guarantee 17,5 Vdc. (Communication loop)
- Standby current: 310µA M710E 340µA M720E (LED = No blink) 510 µA M710E 600µA M720E (LED = blink)
- Supervisory current: 0 µA OPEN, 100 µA NORMAL, 200 µA SHORT-CIRCUIT
- Operating temperature: - 20° C + 60° C
- Relative humidity: 5% - 95% without condensation

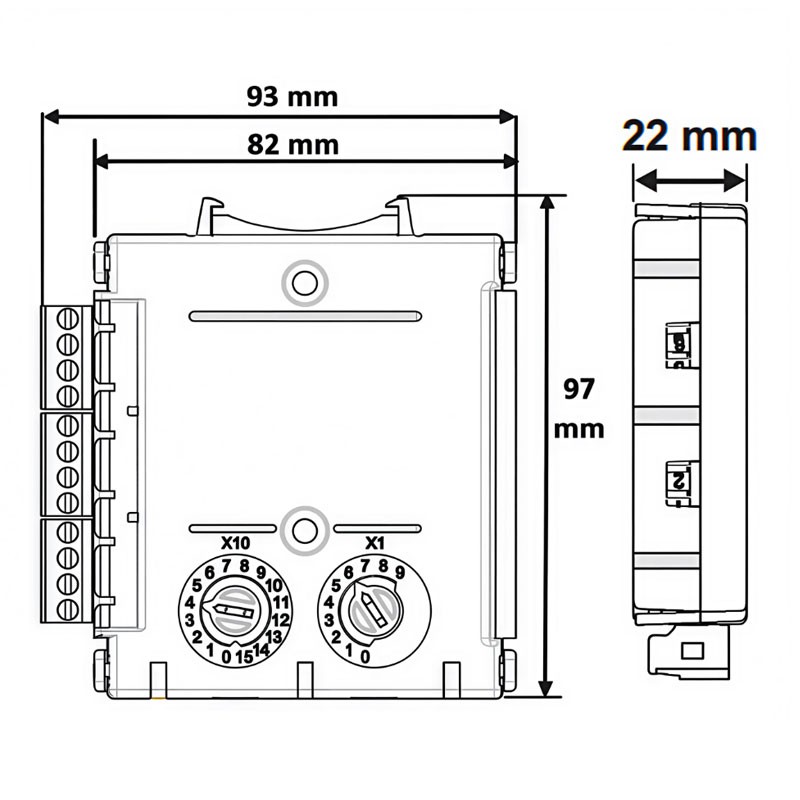

- Dimensions: 93mm (H) 97mm (W) 22mm (D) Including Terminal Blocks
- Weight (Module only): 118 grams
- Weight (Module + M200E-SMB) 263 grams.
