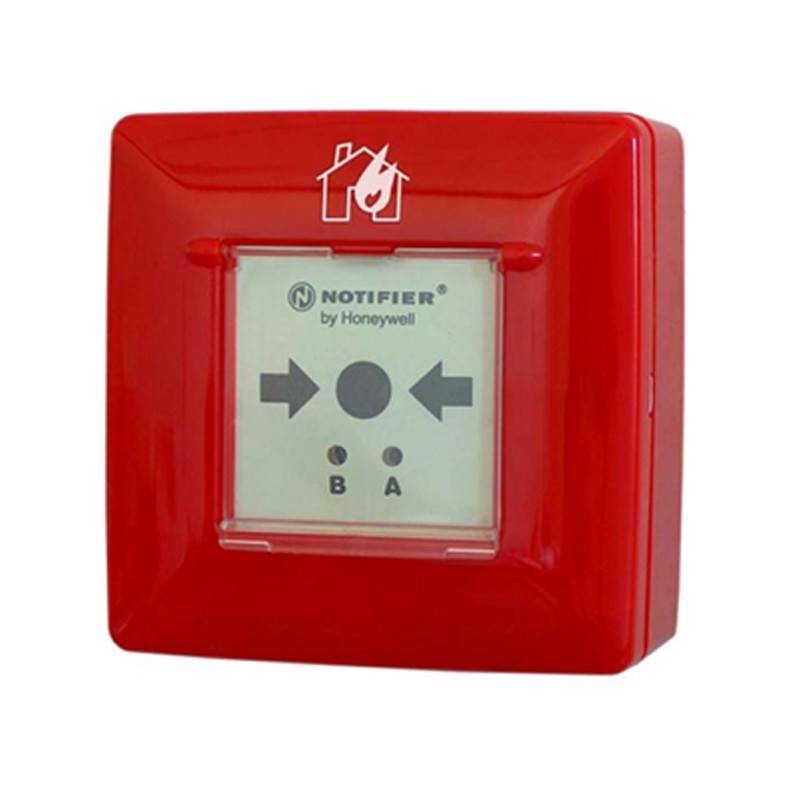

Notifier glass-break addressed manual fire button P700N
NOT P700N
Notifier manual addressed glass-break fire button with key with the following features:
- Max number of buttons per loop: 159 in ADV protocol or 99 in CLIP
- Operating voltage: 15/30 Vdc
- Operating voltage: 24 Vdc
- Absorption at Rest: 94µA
- Absorption in Alarm: 106µA
- Degree of Protection: IP30
- Operating Temperature: -10°C/+55°C
- Relative Humidity 10/93% (non-condensing)
- Weight 213 grams
- Color: Red
Notifier glass-break addressed manual fire button P700N
€68.99
€68.99
Tax included
Tax included
Items Available: 137
: 34
Glass-break addressed manual pushbutton with isolator complete with test key. Plug-and-play terminal block for easy wiring. Equipped with red LED for local alarm signaling. Addressing by rotary switches and with double isolator for communication line protection.
The P700N analog glass-break button is designed to be used as a manual alarm station in a fire detection system. The P700N button is equipped with rotary-switch for addressing and jumper for bypassing the isolator function. The button can operate in either CLIP or ADV Advanced Protocol.
To access the rotary-switches, remove the red-colored plastic cover, Lift the slide by moving it upward, being careful not to damage it, under the breakout slide are the unit and tens rotaries for addressing the Button.
Features:
- Easy Operation
- Rotary-switch addressing
- Plug-in terminal block that facilitates wiring
- Breakable slide provided with protective film
- Can be wall-mounted or flush-mounted in type 503 enclosures
- Simple test operation by inserting the key provided in the switch package
Applications: Can be used for commercial, industrial and residential applications. It is used as a manual intervention station in case of fire. It is generally installed on the outside of doors so that it can be used in the event of evacuation from the premises.
Installations: A plastic box, included, suitable for wall installation is used for mounting. It is also suitable for mounting in flush-mounted boxes type Bticino B503. The package includes the appropriate screws for mounting to the flush-mounted box. Wiring of the button is easy thanks to the use of plug-in terminals.
There are no reviews
Data sheet
- Type: Buttons
