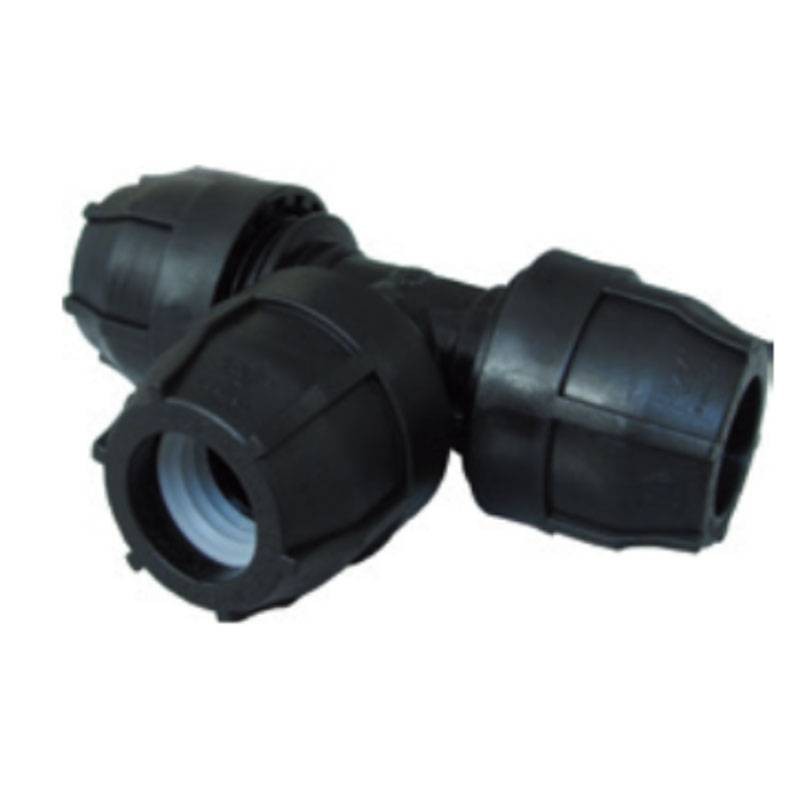

Nupi 90-degree T-fitting Diameter 20 mm PE 10KT20
NUP 10KT20
8022207603039
Nupi ELOPRESS 90-degree polyethylene T-fitting for pipe connection with the following characteristics:
- Diameter: 20 mm
- Pressure: 16 bar
- Material: Polyethylene

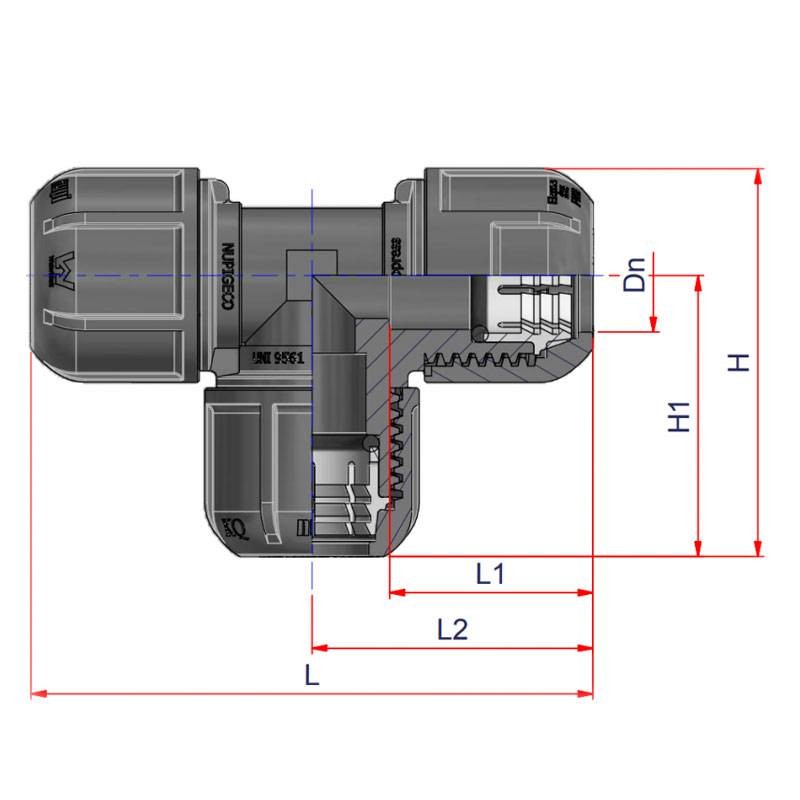

- Dimensions: 52.5x68x136x68x91.5 (L1-L2-L-H1-H)
The ELOPRESS range of compression fittings is suitable for the construction of: Potable water conveying systems, Food fluid conveying systems, Fire-fighting systems, Pressure systems, Irrigation systems.
Nupi 90-degree T-fitting Diameter 20 mm PE 10KT20
€1.67
€1.67
Tax included
Tax included
Items Available: 115
: 17
The ELOPRESS line of compression fittings complements the ELOFIT line of polyethylene pipes and electrofit fittings for the transport of drinking water and food liquids. These are mechanically clamped fittings that can be used with high, medium and low density polyethylene pipes with a maximum pressure of 16 bar.
The ELOPRESS fitting is designed and manufactured according to the UNI 9561 standard and complies with the non-toxicity guidelines set forth in Ministerial Decree No. 174 of April 6, 2004.
There are no reviews
Data sheet
- Diameter:
- 20mm
- Type:
- Fittings
- Model:
-
90 Degrees
T-Fittings - Material:
- Polyethylene
