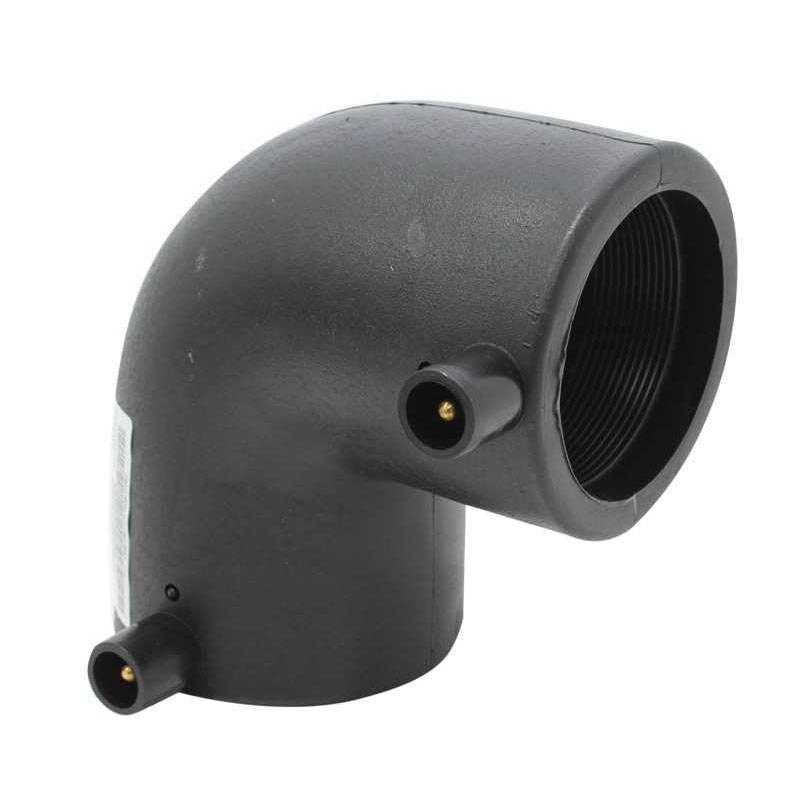

Nupi electro-weldable 90 degree elbow fitting 50 mm diameter PE 12EGEM050
NUP 12EGEM050
8022207102594
Nupi single-wire ELOFIT 90-degree electrofusion elbow fitting in Polyethylene for pipe connection with the following characteristics:
- Diameter: 50 mm
- Material: Polyethylene
- Weldable on SDR 17.6

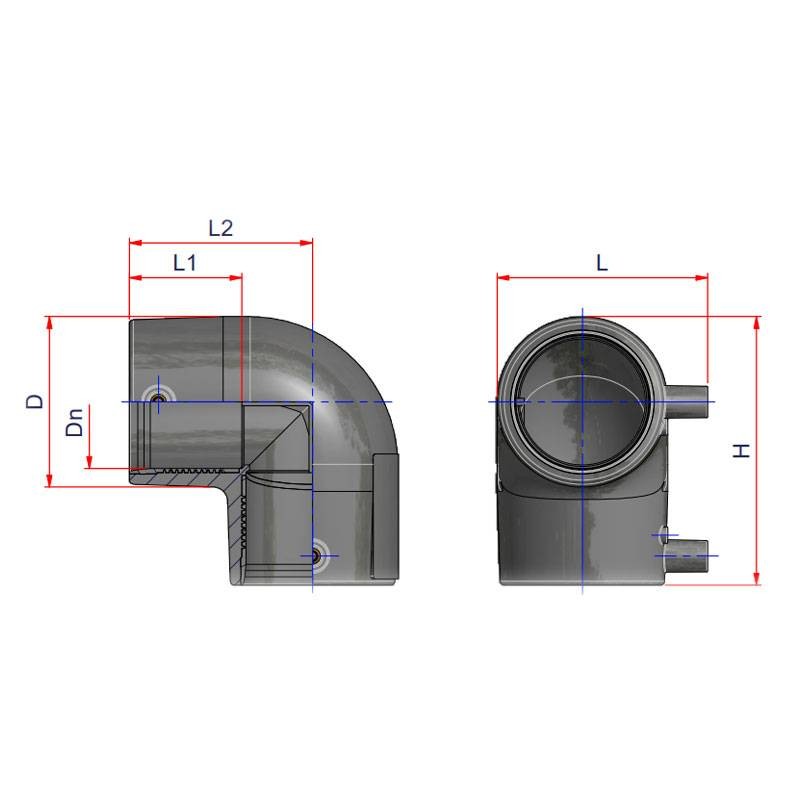

- Dimensions: 65x48x77x84x109.5 (D-L1-L2-L-H)
The main fields of application of the ELOFIT system are as follows: Transportation of drinking water and liquids for food use, Transportation of combustible gas, Sewage treatment plants, Centralized irrigation systems, Pipelines for the transportation of chemical plants, Pressure sewer networks for industrial uses, Fire-fighting networks, Relining (rehabilitation of old networks).
Nupi electro-weldable 90 degree elbow fitting 50 mm diameter PE 12EGEM050
€9.40
€9.40
Tax included
Tax included
Items Available: 133
: 56
Elofit high-density polyethylene fittings predominantly use the technology and method of joining through the electrofusion process. This welding process involves housing electrical resistors inside the electrofusion fittings that are connected to the outside by two lugs.
By connecting to the two ends of the resistor a welding machine capable of supplying energy to the fitting, a certain voltage is created in a set time. The resistor converts the received current into heat so that the polyethylene of the pipe with that of the fitting fuse into a monolithic system. When the cooling has taken place, a homogeneous, strong, safe and reliable connection is then obtained over time.
Each fitting in this range is conceived, designed and manufactured in accordance with strict international standards such as:
- UNI EN 1555, which regulates plastic piping systems for the transport and distribution of combustible gases
- UNI EN 12201, which defines plastic piping systems suitable for water distribution
- UNI EN ISO 15494, which regulates plastic material systems suitable for industrial applications
All items in the Elofit range are also made of non-toxic materials in accordance with Ministerial Decree 174 of April 06, 2004 for the transport of potable water.
Data sheet
- Diameter:
- 50mm
- Type:
- Fittings
- Model:
-
90 Degrees
Elbow - Material:
- Polyethylene
