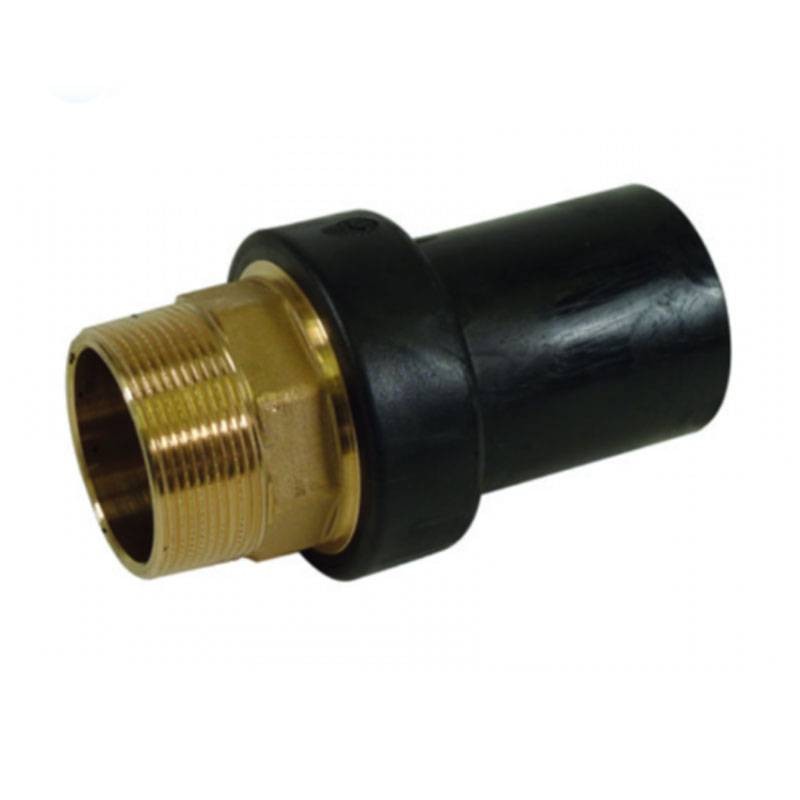

Nupi Male D 63 x 2 inch PE and brass transition fitting 12ERFM632
NUP 12ERFM632
8022207155552
Nupi ELOFIT polyethylene threaded transition fitting for pipe connection with the following characteristics:
- Diameter: 63 mm
- Connection: Male
- Fittings: 2 inches
- Material: Polyethylene and Brass

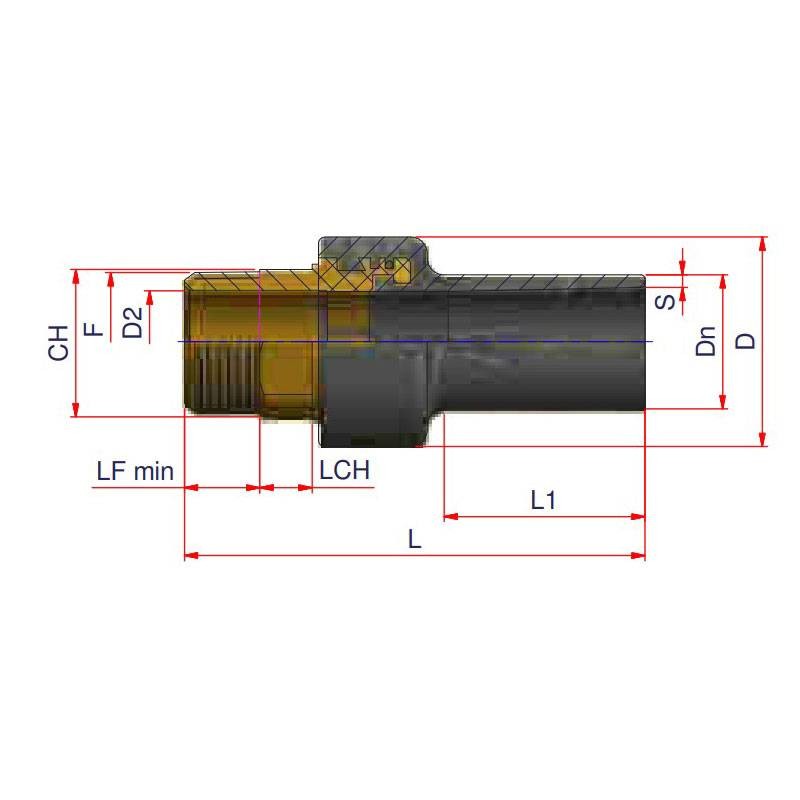

- Dimensioni: 63x5,8x69x49x23,4x147x83x60x18 (Dn-S-L1-D2-Lfmin-L-D-CH-LCH)
The main fields of application of the ELOFIT system are as follows: Transportation of drinking water and liquids for food use, Transportation of combustible gas, Sewage treatment plants, Centralized irrigation systems, Pipelines for the transportation of chemical plants, Pressure sewer networks for industrial uses, Fire-fighting networks, Relining (rehabilitation of old networks).
Nupi Male D 63 x 2 inch PE and brass transition fitting 12ERFM632
€20.81
€20.81
Tax included
Tax included
Items Available: 35
: 12
Elofit high-density polyethylene fittings use, predominantly, the technology and method of joining through the process of electrofusion. This welding process requires that inside the 'electrofusion fittings are housed electrical resistors connected to the outside by two lugs.
By connecting to the two ends of the resistor a welding machine capable of supplying energy to the fitting, a certain voltage is created in a set time. The resistor converts the received current into heat so that the polyethylene of the pipe with that of the fitting fuse into a monolithic system. After cooling, a homogeneous, robust, safe and reliable connection is then obtained over time.
ELOFIT is a system of electrofusion-weldable high-density polyethylene fittings and special pieces for transporting pressurized water and pressurized fluids in general.
Each fitting in this range is conceived, designed and manufactured in accordance with strict international standards such as:
- UNI EN 1555, which regulates plastic piping systems for the transport and distribution of combustible gases
- UNI EN 12201, which defines plastic piping systems suitable for water distribution
- UNI EN ISO 15494, which regulates plastic material systems suitable for industrial applications
All items in the Elofit range are also made of non-toxic materials in accordance with Ministerial Decree 174 of April 06, 2004 for the transport of drinking water.
There are no reviews
Data sheet
- Diameter:
- 63mm
- Type:
- Fittings
- Connection:
- M
- Model:
- Threaded
- Connections:
- 2 inches
- Material:
-
Brass
Polyethylene
