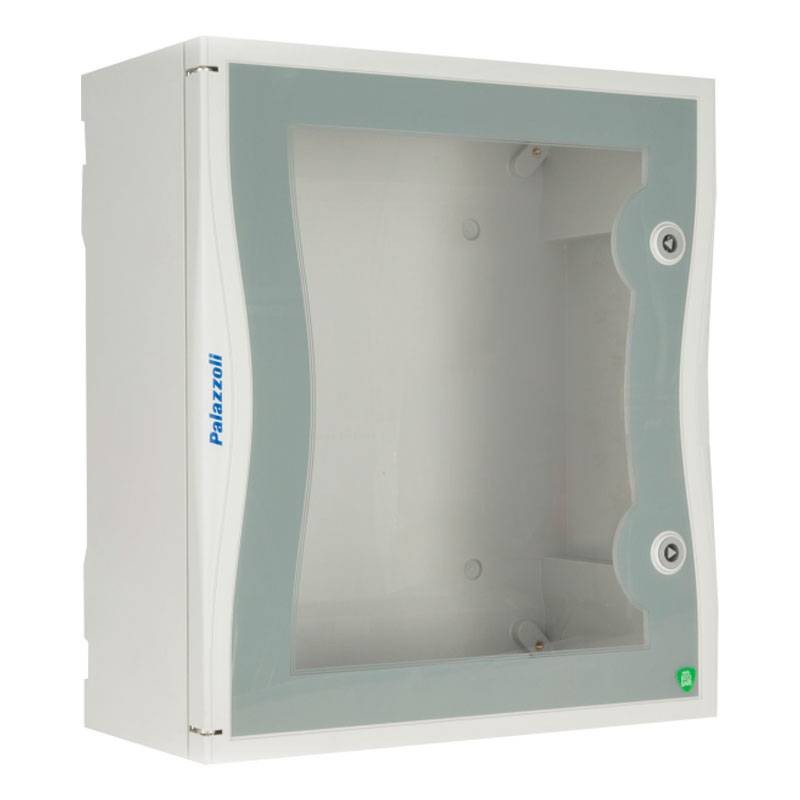

Palazzoli empty square transparent door 449x656x220 mm 550034
PAL 550034
8014950050932
Palazzoli thermoset vacuum panel Tais Cube series with the following features:
- Installation: Wall-mounted
- Door type: Transparent
- Color: Gray
- Degree of protection: IP66

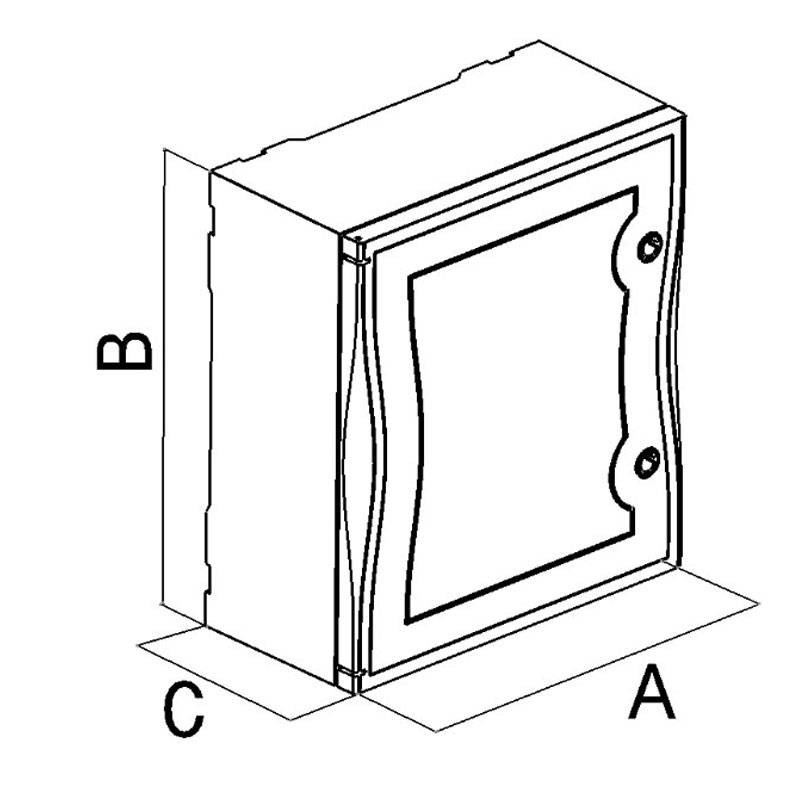

- Dimensions: 449x656x220 mm (A-B-C)
- Maximum allowable load: On the doors: 0 kg - Mounting surfaces: 40 kg - On the bottom: 40 kg
- Size 4
![](https://www.elettronew.com/73168-large_default/palazzoli-empty-square-transparent-door-449x656x220-mm-550034.jpg)
Palazzoli empty square transparent door 449x656x220 mm 550034
€241.85
€241.85
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 8
Features:
- Insulation class: II
- Rated insulation voltage: 1000 Vac - 1500 Vdc
- Power dissipation: 174W
- Body material: Thermosetting resin
- Door type: Transparent
- Installation: Wall-mounted
- Color: Gray
- Number and type of latches: 2 triangle key latches
- Degree of protection: IP66
- Impact Resistance: IK10
- Operating Environment Temperature: -30/+70 degrees
- Storage Environment Temperature: -50/+70 degrees
- Dimensions: 449x656x220 mm (A-B-C)
- Weight: 8.215 kg
- Maximum Allowable Load: On doors: 0 kg - Mounting surfaces: 40 kg - On bottom: 40 kg
Data sheet
- Type:
- Switchboards
- Degree of protection:
- IP66
- Model:
- Glass Door
