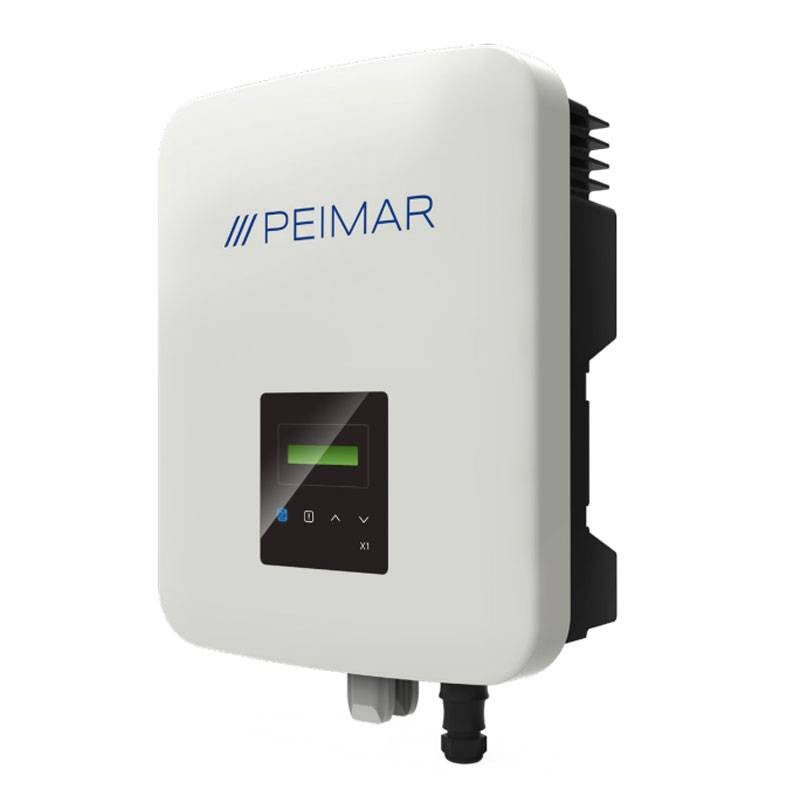

Peimar Photovoltaic Inverter 4.2KW 2MPPT WI-FI Single Phase PSI-X1P4200-TLM

Peimar
492 PSI-X1P4200-TLM

Peimar PSI-X1P Series Photovoltaic Inverter:

  • Rated AC power 4.2KW
  • Number of MPPTs 2
  • DC disconnect switch (DC-PV2) integrated
  • Wi-Fi (PSI-X-H-WIFI-3.0 module included)
  • Single-phase
  • wifi
Do you have questions about this product or did you not find what you were looking for? Ask us!

Peimar Photovoltaic Inverter 4.2KW 2MPPT WI-FI Single Phase PSI-X1P4200-TLM

€797.60
€797.60

Peimar Photovoltaic Inverter 4.2KW 2MPPT WI-FI Single Phase PSI-X1P4200-TLM

€797.60
Tax included
Out of stock
Further availability of the manufacturer
Incoming

Peimar Photovoltaic Inverter 4.2KW 2MPPT WI-FI Single Phase PSI-X1P4200-TLM

€797.60

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Advantages:

  • 2 MPPT
  • Connects linverter to your home Wi-Fi network
  • Free app for iOs and Android for real-time data reading
  • Compatible with Type M10 cells
  • Equipped with display For direct control

Features:

DC input:

  • Maximum DC power 6300 W
  • Maximum power (MPPT1 / MPPT2) 4200 / 4200W
  • Maximum DC voltage 600 V
  • MPPT voltage range 70 - 580 V
  • Nominal DC voltage 360V
  • Start-up voltage 100V
  • Maximum DC input current 14 / 14 A
  • Maximum short-circuit current 16 / 16 A
  • Number of DC inputs for each MPPT 1/1
  • Number of MPPTs 2
  • DC disconnect switch (DC-PV2) Integrated

AC output:

  • Nominal AC power 4200 W
  • Maximum AC power 4620 VA
  • Nominal AC current 18.3 A
  • Maximum AC Current 20.1 A
  • Nominal AC voltage / Range 220 V, 230 V, 240 V / 180 - 280 V
  • Mains frequency / Range 50 Hz, 60 Hz / ± 5Hz
  • Power factor
  • cos ? 0.8 capacitive - 0.8 inductive
  • Total harmonic distortion < 2 %
  • Connection Single-phase 1L + N + PE

Elective parameter measurement:

  • PSI-X-1PMETER-ZI compatible meter (supply not included)
  • Functionality Measurement of grid load power (self-consumption) and power export limit function
  • Meter - inverter connection cable 10 m connection cable and RJ45 plug (supplied with meter PSI-X-1PMETER-ZI) - For longer lengths (maximum 100 m) use CAT5 data cable (supply not included)

Yield:

  • Maximum efficiency 98.0%
  • European efficiency 97.0%
  • MPPT accuracy 99.9%

General information:

  • Transformerless topology
  • Standby consumption (overnight) < 2 W
  • Operating temperature range -25°C to +60°C (derating from +45°C)
  • Cooling method Natural convection
  • Ambient humidity 0 to 100 % without condensation
  • Altitude Up to 3000 m
  • Noise < 25 dB
  • Overvoltage category II (DC input), III (AC output)
  • Degree of protection IP66
  • Mounting Wall mounting bracket
  • Dimensions (H x W x D) 430 x 341.5 x 143 mm
  • Net weight 15.0 kg
  • Warranty 10 years

Interface:

  • AC connection Plug connector
  • MC4 / H4 DC connection
  • LCD screen
  • Communication ports Dongle (USB port for Wi-Fi/Ethernet module) - Upgrade (USB port for firmware upgrade) / RS485 (RJ45 port for external communication)
  • Communication modes Wi-Fi (PSI-X-H-WIFI-3.0 module included) - LAN (optional PSI-X-H-ETH-3.0 module not included)

Protections:

  • Integrated overvoltage protection
  • Integrated overcurrent protection
  • Integrated DC insulation monitoring
  • Integrated GFCI monitoring
  • Integrated DCI monitoring
  • Integrated residual current protection

There are no reviews

Data sheet

Type:
Inverter
Power:
1 to 5KW
WIFI:
Integrated
MPPT:
2
Connection:
Single-phase
