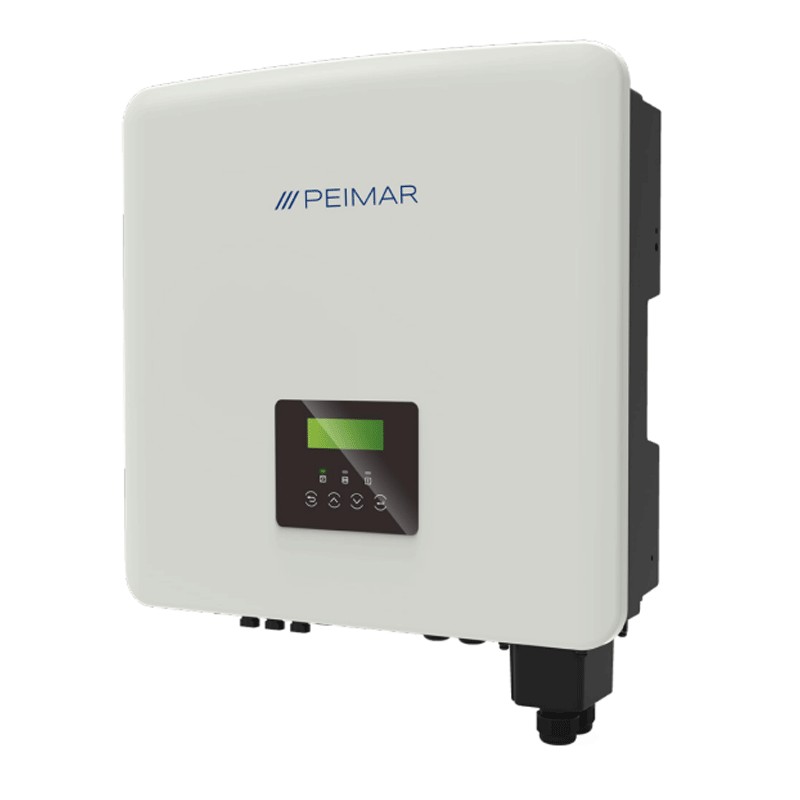

Peimar PSI-X3S 10 KW Three Phase WIFI Hybrid Photovoltaic Inverter PSI-X3S10000-HY

Peimar
492 PSI-X3S10000-HY

Peimar PSI-X3S Hybrid Photovoltaic Inverter:

  • Rated power 10 KW
  • Rated grid voltage Three-phase
  • WIFI (PSI-X-H-WIFI module included)
  • Number of MPPTs 2
  • BACK-UP function
  • Practical and quiet
  • Storage capacity up to 46,0 0 kWh
  • Including energy meter (TA)
  • wifi
Do you have questions about this product or did you not find what you were looking for? Ask us!

Peimar PSI-X3S 10 KW Three Phase WIFI Hybrid Photovoltaic Inverter PSI-X3S10000-HY

€3,479.10
€3,479.10

Peimar PSI-X3S 10 KW Three Phase WIFI Hybrid Photovoltaic Inverter PSI-X3S10000-HY

€3,479.10
Tax included
Out of stock
Further availability of the manufacturer
Incoming

Peimar PSI-X3S 10 KW Three Phase WIFI Hybrid Photovoltaic Inverter PSI-X3S10000-HY

€3,479.10

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

DC INPUT:

  • Maximum DC power 15000 W
  • Maximum power (MPPT1 / MPPT2) 9000 / 6000 W
  • Maximum DC voltage 1000 V
  • MPPT voltage range 180 - 950 V
  • DC nominal voltage 640 V
  • Start-up voltage 200 V
  • Maximum DC input current 26 / 16 A
  • Maximum short-circuit current 30 / 20 A
  • Number of DC inputs for each MPPT 2 / 1
  • Number of MPPTs 2
  • DC disconnect switch (DC-PV2) Integrated

AC OUTPUT:

  • Rated power 10000 W
  • Maximum power 11000 VA
  • Maximum output current 16.1 A
  • Maximum input current 32.0 A
  • Rated line voltage 415 / 240 V; 400 / 230 V; 380 / 220 V
  • Rated mains frequency 50, 60 Hz
  • Power factor
  • cos ? 0.8 capacitive - 0.8 inductive
  • THDi, rated power < 3%
  • 3-phase connection 3L + N + PE

AC OUTPUT (BACK-UP MODE):

  • Maximum AC power 10000 W
  • Maximum peak power 15000 VA, 60s
  • Max. continuous current 14.5 A
  • Rated voltage 400 / 230 V
  • Rated frequency 50, 60 Hz
  • Switching time <10ms
  • THDv, linear load < 2%
  • Three-phase connection 3L + N + PE
  • Switching interlock panel Supply not included. Refer to instructions posted at www.peimar.com for further guidance.

PROTECTION:

  • AC and DC over- or undervoltage protection
  • Reverse current monitoring
  • Anti-island protection
  • Overload protection
  • Overtemperature protection
  • Battery reverse polarity protection

ELECTRICAL PARAMETER MEASUREMENT:

  • Measuring device No. 3 TA current transformers included, for currents up to 100 A
  • Functionality Measurement of electrical parameters of withdrawal and input, necessary for management of external loads and charging/discharging of the storage system
  • TA - inverter connection cable 0.5 m connection cable (included). For longer lengths (maximum 100 m) use CAT5 data cable or higher (supply not included). RJ45 plugs (included), RJ45 splice for data cable extension (included).

EFFICIENCY:

  • Maximum efficiency 98.0%
  • European efficiency 97.7%
  • Max. battery charge/discharge efficiency 98.5% / 97.5%

INTERFACE:

  • AC connection Terminal block
  • Photovoltaic input MC4
  • Backup line connection Terminal block
  • Phoenix battery
  • LCD screen
  • Communication modes (monitoring system) Wi-Fi (PSI-X-H-WIFI module included) - LAN (optional PSI-X-H-ETH module not included)
  • Communication ports (internal and with battery) Dongle (USB port for Wi-Fi/Ethernet module) - BMS (RJ45 port for battery communication) - Meter/CT (RJ45 port TA communication) - CAN (RJ45 port for parallel function) - COM/LCD (RJ45 port for external communication)

GENERAL INFORMATION:

  • Parallel composition Up to 10 inverters in the on-grid configuration, even of different models forming part of the X3S line. Only 3 CTs (included) are always required, to be connected to the master inverter
  • Transformerless topology
  • Standby consumption < 5 W
  • Operating temperature range -35°C to +60°C (derating from +45°C)
  • Cooling method Natural convection
  • Ambient humidity 0 to 100% without condensation
  • Storage temperature From -40°C to +70°C
  • Altitude Up to 3000 m
  • Noise <35 dB
  • Overvoltage category II (DC input), III (AC output)
  • Degree of protection IP65
  • Mounting Wall mounting bracket
  • Dimensions (H x W x D) 503 x 503 x 199 mm
  • Net weight 30 kg
  • Warranty 10 years

There are no reviews

Data sheet

Type:
Inverter
Power:
6 to 10KW
Degree of protection:
IP65
Model:
Hybrids
WIFI:
Integrated
MPPT:
2
Connection:
Three-phase
