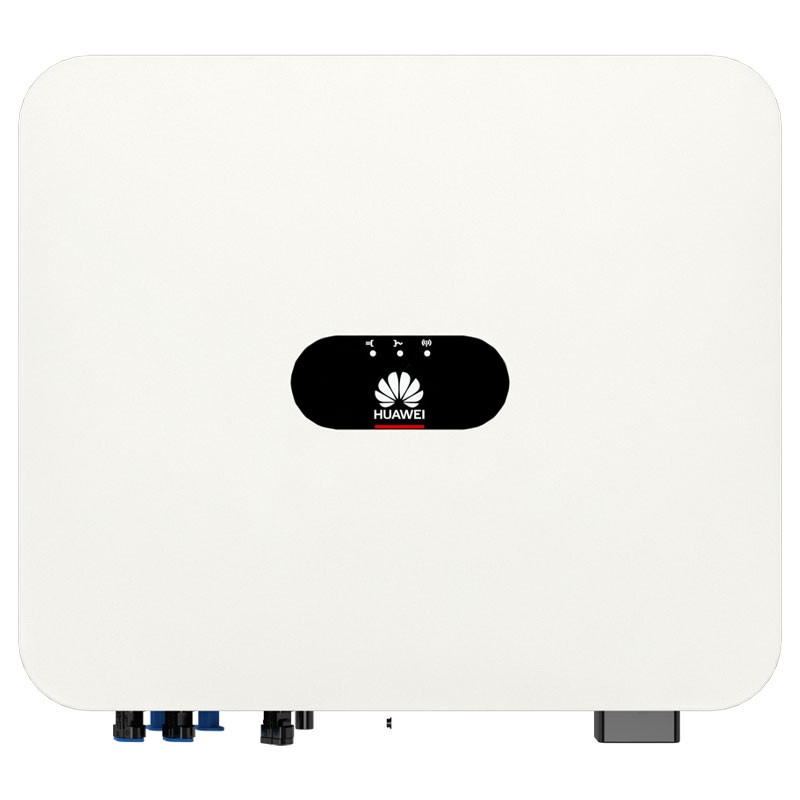

Huawei SUN2000 6K TL-L1 Single-Phase Hybrid Photovoltaic Inverter SUN20006KTLL1

Huawei
35T SUN20006KTLL1

Huawei SUN2000 6K TL-L1 Hybrid Photovoltaic Inverter:

  • Rated output power 6,000 watts
  • Power supply Single-phase 220 Vac / 230 Vac / 240 Vac
  • Number of MPP trackers 2
  • Max. number of inputs per MPPT 1
  • RS485, WLAN via WLAN module integrated in the inverter
Do you have questions about this product or did you not find what you were looking for? Ask us!

Huawei SUN2000 6K TL-L1 Single-Phase Hybrid Photovoltaic Inverter SUN20006KTLL1

€1,943.81
€1,943.81

Huawei SUN2000 6K TL-L1 Single-Phase Hybrid Photovoltaic Inverter SUN20006KTLL1

€1,943.81
Tax included
Out of stock
Further availability of the manufacturer
Incoming

Huawei SUN2000 6K TL-L1 Single-Phase Hybrid Photovoltaic Inverter SUN20006KTLL1

€1,943.81

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Advantages:

  • Active safety Active arc protection based on Artificial Intelligence.
  • Higher efficiencies Up to 30%+ power thanks to optimizers
  • 2x the power available to recharge the battery 5kW for AC output + 5kW for battery charging

Efficiency:

  • 98.4 % max efficiency
  • European weighted efficiency 97.8 %

Input (PV):

  • Recommended max PV power 9,000 Wp
  • Input voltage max 600 V 2
  • Start-up voltage 100 V
  • MPPT operating voltage range 90 V 560 V
  • Nominal input voltage 360 V
  • Max. input current for MPPT 12.5 A
  • Max short-circuit current 18 A
  • Number of MPP trackers 2
  • Max. number of inputs for MPPT 1

Input (DC battery):

  • LG Chem RESU 7H_R / 10H_R compatible battery.
  • Operating voltage range 350 ~ 450 Vdc
  • Max operating current 10 A @7H_R / 15 A @10H_R
  • Max charging power 3,500 W @7H_R / 5,000 W @10H_R
  • Maximum discharge power @ 7H_R 3,500 W
  • Maximum discharge power @ 10H_R 5,000 W
  • Compatible HUAWEI Smart LUNA2000 ESS Battery 5kWh 30kWh
  • Operating voltage range 350 ~ 560 Vdc
  • Max operating current 15 A
  • Maximum charging power 5,000 W
  • Maximum discharge power 5,000 W

Output (Mains):

  • Single-phase grid connection
  • Rated output power 6,000 W
  • Max apparent power 6,000 VA
  • Nominal output voltage 220 Vac / 230 Vac / 240 Vac
  • Rated AC mains frequency 50 Hz / 60 Hz
  • Maximum output current 27.3 A
  • Adjustable power factor 0.8 capac... 0.8 induc
  • Max. Total Harmonic Distortion 3 %

Output (Backup power supply via Backup Box-B0):

  • Maximum Apparent Power 5,000 VA
  • Rated Output Voltage 220 V / 230 V
  • Maximum Output Current 22.7 A
  • Power factor 0.8 capac ... 0.8 induc

Protection & Features:

  • Anti-islanding protection Yes
  • DC reverse polarity protection Yes
  • Insulation monitoring Yes
  • DC overvoltage protection Yes, compatible with protection class TYPE II according to EN / IEC 61643-11
  • AC overvoltage protection Yes, compatible with protection class TYPE II according to EN / IEC 61643-11
  • Residual current monitoring Yes
  • AC overcurrent protection Yes
  • AC short-circuit protection Yes
  • AC overvoltage protection Yes
  • Overheating protection Yes
  • AFCI arc-fault protection Yes
  • Reverse battery charging from the grid Yes

General data:

  • Operating temperature range -25 ~ +60 °C (reduction over 45 °C at rated output power)
  • Relative operating humidity 0 %RH?100 %RH
  • Operating altitude 0 ~ 4,000 m (reduction over 2,000 m)
  • Cooling Natural convection
  • Display LED indicators; integrated WLAN + FusionSolar APP
  • RS485, WLAN communication via WLAN module integrated in the inverter
  • Ethernet via Smart Dongle-WLAN-FE (optional not integrated); 4G / 3G / 2G via Smart Dongle-4G (optional not integrated)
  • Weight (including mounting bracket) 12.0 kg
  • Dimensions (including mounting bracket) 365mm * 365mm * 156mm
  • Degree of protection IP65
  • Power consumption at night <2.5 W

Standards Compliance:

  • Safety EN/IEC 62109-1, EN/IEC 62109-2
  • Standard grid connections G98, G99, EN 50549-1, IEC 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116.

There are no reviews

Data sheet

Type:
Inverter
Power:
6 to 10KW
Model:
Hybrids
MPPT:
1
Connection:
Single-phase
