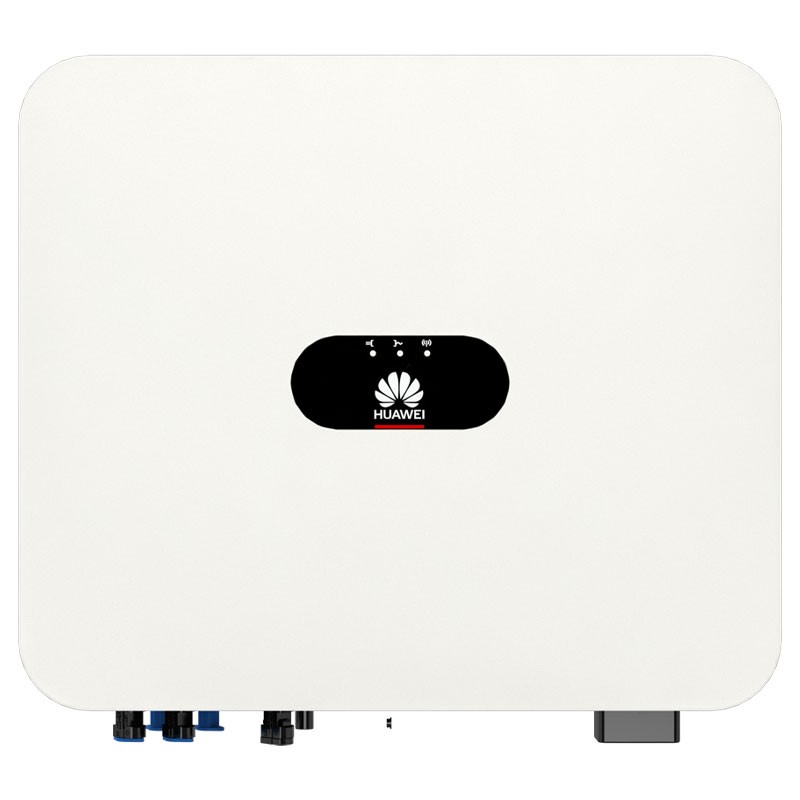

Huawei SUN2000 Hybrid Photovoltaic Inverter 3.68KW 2 MPPT Single Phase WIFI ZIGHMK36

Huawei
860 ZIGHMK36

Huawei SUN2000 KTL1 hybrid photovoltaic inverter with the following characteristics:

  • Rated output power 3.680W
  • Single-phase power supply
  • Number of MPPT trackers 2
  • DC disconnect switch
  • RS485 communication, WLAN via WLAN module integrated in the inverter
  • wifi
Do you have questions about this product or did you not find what you were looking for? Ask us!

Huawei SUN2000 Hybrid Photovoltaic Inverter 3.68KW 2 MPPT Single Phase WIFI ZIGHMK36

€1,148.84
€1,148.84

Huawei SUN2000 Hybrid Photovoltaic Inverter 3.68KW 2 MPPT Single Phase WIFI ZIGHMK36

€1,148.84
Tax included
Out of stock
Further availability of the manufacturer
Incoming

Huawei SUN2000 Hybrid Photovoltaic Inverter 3.68KW 2 MPPT Single Phase WIFI ZIGHMK36

€1,148.84

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Huawei'sSUN2000 (Smart Energy Center) series single-phase inverters are Huawei's Hybrid solution for grid-connected residential PV systems. The special feature of these products is that they are already prepared for the simultaneous or future insertion of lithium batteries for storage. All Huawei inverters are CEI 0-21 compliant.


The Huawei SUN2000 single-phase inverter is a jewel of efficiency and elegance. The minimalist, streamlined design was awarded the prestigious 2016 Reddot Award as the best product of the year. Highly reliable performance and high output are its strengths. The Huawei inverter can reach an efficiency of 98.6%! With Huawei single-phase inverters, you are sure to make the most of your PV system's output.

Strengths:

  • Character: the inverter features an attractive design and a weight of just over 10 kg
  • Innovative: the hybrid inverter works in Ac and is ready for Storage with Lithium Ion Batteries. Ability to manage Huawei Optimizers (optional)
  • Easy to Install: Can also be installed by one person due to its light weight. Features optimized AC Connector for quick wiring and Supports one-click inverter configuration
  • Safe and Reliable: built-in electronic Ac and DC protections and IP65 protection rating with natural cooling
  • Higher yield Up to 30%+ energy thanks to optimizers
  • Double power available for battery: 5kW for AC output + - 5kW for battery charging
  • AI-based active arc protection

Efficiency:

  • Max. efficiency 98.4 %
  • European weighted efficiency 97.3 %

Input (PV):

  • Recommended max PV power 5,520 Wp
  • Input voltage max 600 V
  • Start-up voltage 100 V
  • MPPT operating voltage range 90 V 560 V
  • Nominal input voltage 360 V
  • Max. input current for MPPT 12.5 A
  • Max short-circuit current 18 A
  • Number of MPP trackers 2
  • Max. number of inputs 1

Battery input (DC):

  • LG Chem RESU 7H_R / 10H_R compatible battery.
  • Operating voltage range 350 ~ 450 Vdc
  • Max operating current 10 A @7H_R / 15 A @10H_R
  • Max charging power 3,500 W @7H_R / 5,000 W @10H_R
  • Maximum discharge power 7H_R 3,500 W
  • Maximum discharge power 10H_R 3.680 W
  • Compatible HUAWEI Smart LUNA2000 ESS Battery 5kWh 30kWh 1
  • Operating voltage range 350 ~ 560 Vdc
  • Max operating current 15 A
  • Maximum charging power 5,000W
  • Maximum discharge power 3680W

Output:

  • Single-phase grid connection
  • Rated output power 3680 W
  • Max apparent power 3680 VA
  • Nominal output voltage 220 Vac / 230 Vac / 240 Vac
  • Rated AC mains frequency 50 Hz / 60 Hz
  • Maximum output current 16A
  • Adjustable power factor 0.8 capac...0.8 inut
  • Max. Total Harmonic Distortion 3 %

Protection & Feature:

  • Anti-islanding protection Yes
  • DC reverse polarity protection Yes
  • Insulation monitoring Yes
  • DC overvoltage protection Yes, compatible with protection class TYPE II according to EN / IEC 61643-11
  • AC overvoltage protection Yes, compatible with protection class TYPE II according to EN / IEC 61643-11
  • Residual current monitoring Yes
  • AC overcurrent protection Yes
  • AC short-circuit protection Yes
  • AC overvoltage protection Yes
  • Overheating protection Yes
  • AFCI arc-fault protection Yes
  • Reverse battery charging from the grid Yes

General data:

  • Operating temperature range: -25/+60 °C
  • Relative operating humidity 0 %RH 100 %RH
  • Operating altitude 0 ~ 4,000 m (reduction over 2,000 m)
  • Cooling Natural convection
  • Display LED indicators; integrated WLAN + FusionSolar APP
  • RS485, WLAN communication via WLAN module integrated in the inverter
  • Ethernet via Smart Dongle-WLAN-FE (optional not included); 4G / 3G / 2G via Smart Dongle-4G (optional not included)
  • Weight (including mounting bracket) 12.0 kg
  • Dimensions (including mounting bracket) 365mm x 365mm x 156 mm
  • Degree of protection IP65
  • Nighttime power consumption < 2.5W


Standards compliance (others available upon request):

  • Safety EN/IEC 62109-1, EN/IEC 62109-2
  • Standard grid connections G98, G99, EN 50549-1, IEC 0-21, VDE-AR-N-4105, AS 4777.2, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, IEC61727, IEC62116

There are no reviews

Data sheet

Type:
Inverter
Power:
1 to 5KW
Model:
Hybrids
WIFI:
Integrated
MPPT:
2
Connection:
Single-phase
