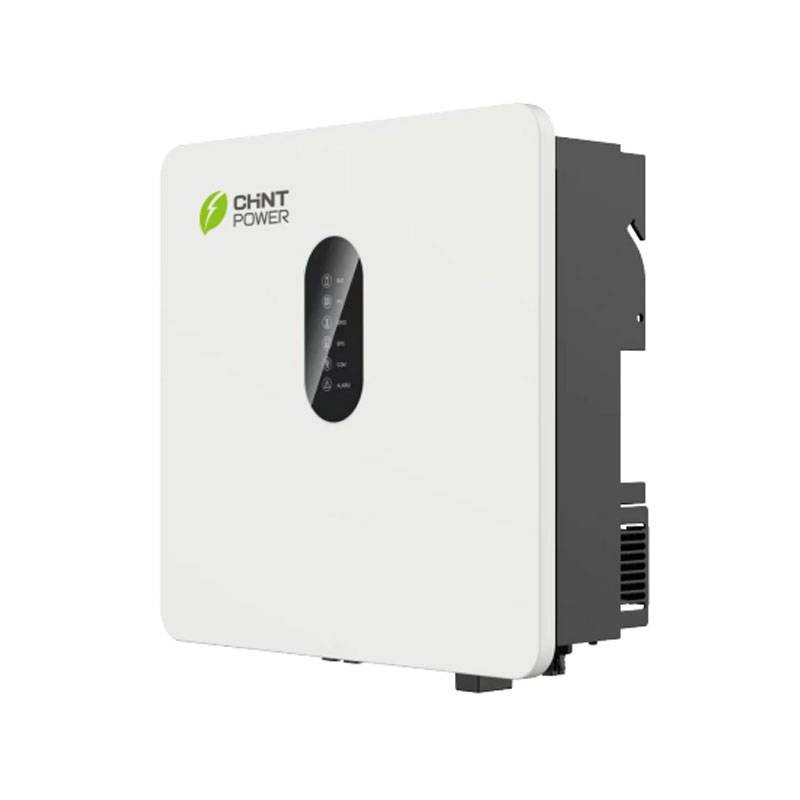

Chint single-phase hybrid photovoltaic inverter 6.0KW 2MPPT

Chint
67B 1.0101.1142

The Chint CPS SCE6KTL-120/EU hybrid photovoltaic inverter is an advanced solution for residential installations, designed for efficiency, reliability and flexibility. With an output of 6.0KW, dual MPPT and compatibility with storage systems, it is ideal for both new installations and retrofit of existing systems:

  • Energy efficiency: Maximum efficiency of 96.6%, with battery efficiency of 94%.

  • Universal compatibility: Supports lead-acid and lithium-ion batteries, as well as 500 W+ PV modules

  • Advanced battery management: Integrated BMS system to extend battery life

  • Optimized design: Natural cooling for high performance without the need for active maintenance

  • Suitable for retrofit: Perfect for increasing self-consumption in existing PV systems.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Chint single-phase hybrid photovoltaic inverter 6.0KW 2MPPT
€1,578.83
€1,499.89
€1,499.89

Lowest price in 30 days:
€1,578.83
Save 5%
€1,499.89
Tax included
Items Available: 8
Further availability of the manufacturer
€1,499.89

Buy it within and receive it from Tuesday, 18 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Chint CPS SCE 6K photovoltaic inverter: High efficiency and energy savings

The Chint CPS SCE6KTL-120/EU inverter provides exceptional yields with a maximum efficiency of 96.6%. Intelligent battery management, with an efficiency of 94%, optimizes energy storage and consumption. This feature makes it perfect for maximizing self-consumption and reducing grid dependence.

Compatibility and flexibility

Compatible with lead-acid and lithium-ion batteries, this inverter supports PV modules of 500 W or higher. It is a versatile solution for residential installations and easily integrates into existing systems, improving their performance.

Protection and reliability

Equipped with an advanced battery management system ( BMS ), the inverter protects batteries from overcharging, overheating, and other anomalies, ensuring longer life. The naturally cooled design reduces the need for maintenance, making it reliable even in harsh environments.

Technical Specifications Hybrid Photovoltaic Inverter



Efficiency

FeatureDetail
Maximum efficiency (grid-connected PV) 96,6%
Maximum efficiency (Battery to be charged) 94,0%



PV

FeatureDetail
Rated input voltage 360 V
Maximum input voltage 550 V
Maximum input power 9.0 kW
Maximum input current per MPPT 15 A/15 A
Maximum short-circuit current per MPPT 20 A/20 A
No. of MPPTs 2
No. of strings per MPPT 1
Starting voltage 90 V
PV operating voltage range 70 ~ 520 V



Batteries

FeatureDetail
Cell type Lithium-ion/Lead-acid
Battery voltage range 40 ~ 60 V
Maximum charge/discharge current 120 A/120 A
Maximum charging/discharging power 6.0 kW/6.0 kW



Network

FeatureDetail
Maximum input current 41,0 A
Rated apparent output power 6.0 kVA
Maximum apparent output power 6.0 kVA
Rated output voltage 220 V/230 V
Rated grid frequency 50 Hz/60 Hz
THDi < 3% (rated power)
Power factor > 0.99 (Adjustable 0.8 early - 0.8 late)



Backup

FeatureDetail
Maximum output current (on grid) 28,6A
Rated apparent output power (off grid) 6.0 kVA
Maximum apparent output power (off grid) 6.0 kVA
Peak apparent output power 9 kVA @1s
Rated output voltage 220 V/230 V
Rated output frequency 50 Hz/60 Hz
Maximum apparent single-phase output power /
THDV < 3% (rated power)
Switching time 10 ms



Protection

FeatureDetail
DC switch Integrated
Anti-islanding protection Integrated
AC overcurrent protection Integrated
AC short circuit protection Integrated
Inversion protection for PV string Integrated
Surge voltage limiter Type III (DC and AC side)
AFCI Optional (the interruption of the arc fault circuit)
RSD function Optional (rapid shutdown device)



General

FeatureDetail
Topology High-frequency isolation (battery)
Degree of protection IP65
Cooling method Natural cooling
Operating temperature range -25 ℃ ~ -60 ℃
Relative humidity range 0 ~ 100% without condensation
Maximum operating altitude 4000 m
Noise (typical) < 35 dB
Dimensions (W x H x D) 515 x 487 x 175 mm
Weight 25 kg
Display LED & APP
Connection RS485, CAN, Wi-Fi/4G (optional)



Certifications

FeatureDetail
Safety IEC/EN 62109-1/2, IEC/EN 61000-6-1/2/3/4, IEC 62477, IEC 62040-1

There are no reviews

Data sheet

Type:
Inverter
Power:
6 to 10KW
MPPT:
2
Connection:
Single-phase
