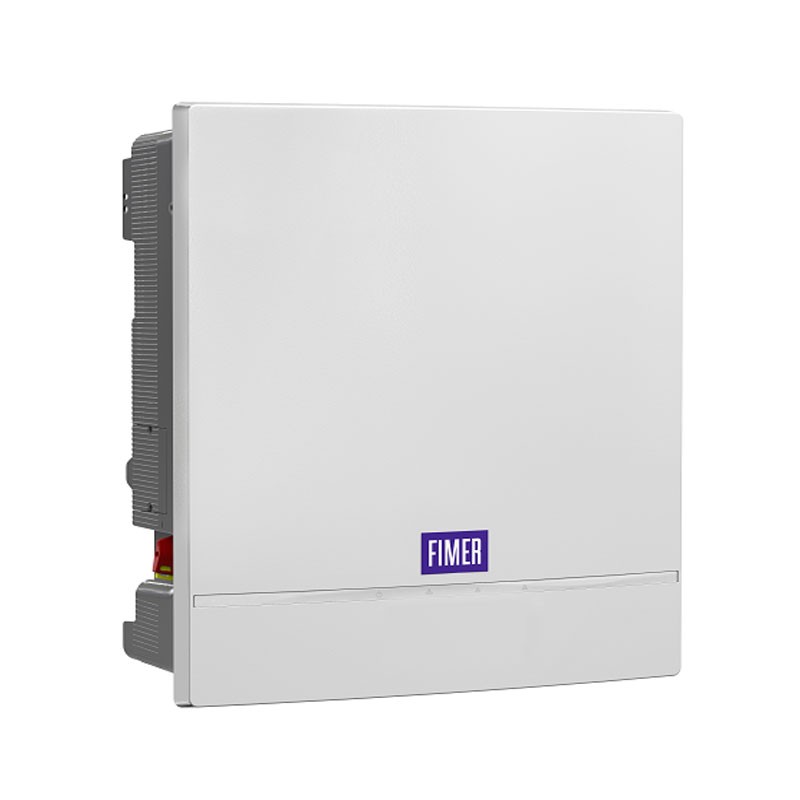

Photovoltaic Inverter Fimer PVS-10-TL-SX 10KW 2MPPT Three-phase 3Q009902000F

Brand: Fimer

Code: 06R 3Q009902000F EAN:

Fimer PVS-10-TL-SX Photovoltaic Inverter, Nominal DC input power 10200W, number of independent MPPT 2, Three phase AC grid connection type (3W+PE or 4W+PE).

Model with 4 inputs with quick connect PV connectors + Type 2 AC and DC surge arresters.

Fimer PVS-10-12.5-15-TL

Photovoltaic Inverter Fimer PVS-10-TL-SX 10KW 2MPPT Three-phase 3Q009902000F

€1,568.55

Photovoltaic Inverter Fimer PVS-10-TL-SX 10KW 2MPPT Three-phase 3Q009902000F

€1,568.55
Tax included

Out of stock

Further availability of the manufacturer

Incoming

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

The new PVS family of string inverters, up to 15 kW, is designed with the goal of maximizing return on investment in commercial and industrial applications such as canopies, rooftop installations and trackers.

Easy installation and maintenance:

The product's compact design, consisting of a single mechanical, saves on installation costs. Thanks to the connectors on the outside of the inverter, installation is quick and easy, with no need to open the front cover. In addition, the absence of fuses ensures savings in maintenance costs and time, reducing on-site interventions to a minimum.

Maximum flexibility and integration:

Its input voltage range and connection system provides flexibility to the inverter and makes it suitable for both new installations and retrofit projects. The new inverter family ensures maximum integration with the latest technologies in the PV field, including double-sided modules.

Advanced communication:

Fast commissioning thanks to the Installer for solar inverters app, which allows multiple inverters to be commissioned simultaneously, saving up to 70% of commissioning time. The monitoring of the currents of the individual strings allows the status of the photovoltaic generator to be kept under control and any faults to be detected in real time. FIMER's Export limitation solution is standard and allows you to meet the power export limits imposed by utilities, without the need for additional external devices.

Main features:

Compact inverter suitable for vertical installation
Fuse-free design
Installation on new plants and retrofit applications
Maximum string voltage 1100Vdc
PID prevention function (optional)
Commissioning via lapp Installer for solar inverters
Integrated export limitation function
Current monitoring of each individual string
Arc detection system (optional)

INPUT

Maximum absolute DC input voltage (Vmax,abs) 1100 V
Input DC activation voltage (Vstart) 250...500V (default 360V)
Operating range of DC input voltage (Vdcmin...Vdcmax) 200-1000 V
Nominal DC input voltage (Vdcr) 620V
Nominal DC input power (Pdcr) 10200 W
Number of independent MPPT 2
Maximum recommended photovoltaic power (PPV, max) 14500 Wp
Maximum DC Input Power for each MPPT (PMPPT,max) 7000W
MPPT DC voltage range (VMPPTmin to VMPPTmax) at Pacr 460-850V
Maximum DC input current (Idcmax) for each MPPT 2x17A
Maximum input short circuit current for each MPPT 30A
Number of DC input connection pairs for each MPPT 2
DC Connection Type PV plug-in connector.

Input protections

Reverse polarity protection Yes, current limited
Input overvoltage protection for each MPPT SPD Type II / Type I+II (optional)
Insulation control Yes, according to local regulations.

OUTPUT

Type of AC connection to the grid Three-phase (3W+PE or 4W+PE)
LV distribution system TN-S, TN-C, TN-CS, TT
Nominal AC power output (Pacr @cos=1) 10000 W
Maximum AC power output (Pacmax @cos=1) 10000 W
Maximum apparent power (Smax) 10000 VA
Maximum reactive power (Qmax) 6000 VAR
Rated power factor and adjustment range > 0.995; 0.81 inductive/capacitive
Nominal AC output voltage (Vac,r) 380V, 400V
Maximum AC output current 16A
Rated output frequency (fr) 50 Hz / 60 Hz
Output frequency range (fmin...fmax) 47...53 Hz / 5763 Hz
Total current harmonic distortion <3%.
Maximum permissible AC cable cross section 16 mm2 copper
AC connection Quick plug-in AC connector.

Output protections

Anti-islanding protection In accordance with local regulations
Maximum external AC overcurrent protection 25 A
Output overvoltage protection SPD Type II.

COMMUNICATION:

Built-in communication interfaces Double Ethernet port, WLAN, RS485 port
Communication protocols Modbus TCP Sunspec, Modbus RTU Sunspec
LEDs Monitoring Service, Web User Interface, Installer APP, Display (optional)
Aurora Vision® Plant Management Platform Cloud Services, Rest API
Advanced features Integrated export limitation control (in combination with external meter), 24h self-consumption monitoring.

Physical Features
