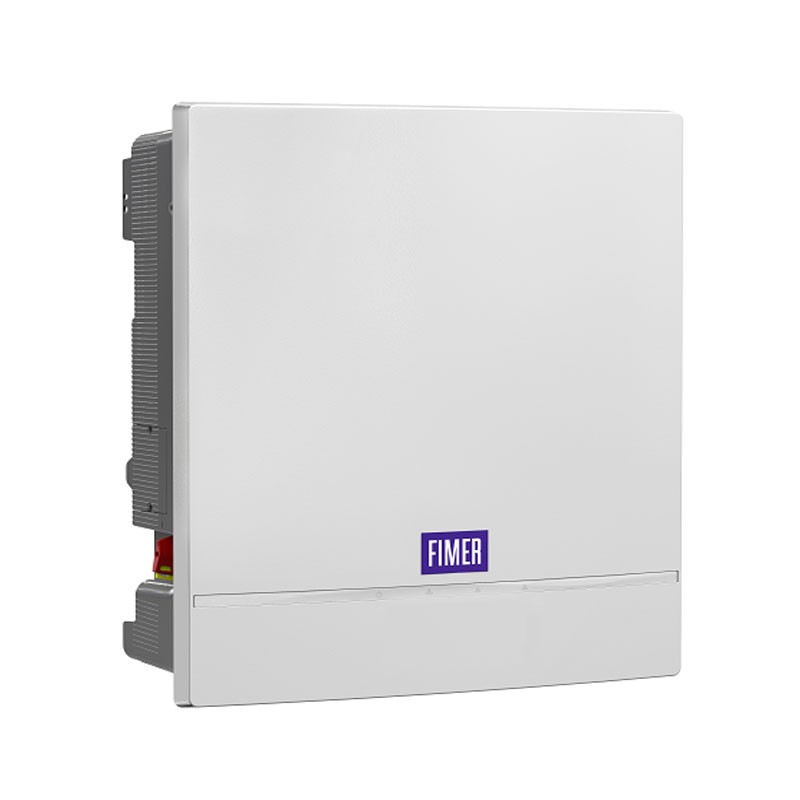

Easy installation and maintenance:

• The product's compact design, consisting of a single mechanical unit, saves on installation costs. Thanks to the connectors on the outside of the inverter, installation is quick and easy, with no need to open the front cover. In addition, the absence of fuses ensures savings in maintenance costs and time, reducing on-site interventions to a minimum.

Maximum flexibility and integration:

• Its input voltage range and connection system provides flexibility to the inverter and makes it suitable for both new installations and retrofit projects. The new inverter family ensures maximum integration with the latest technologies in the PV field, including double-sided modules.

Advanced communication:

• Fast commissioning thanks to the Installer for solar inverters app, which allows multiple inverters to be commissioned simultaneously, saving up to 70% of commissioning time. The monitoring of the currents of the individual strings allows the status of the photovoltaic generator to be kept under control and any faults to be detected in real time. FIMER's Export limitation solution is standard and allows you to meet the power export limits imposed by utilities, without the need for additional external devices.

Integrated PID recovery function:

• The inverter with integrated PID (Potential Induced Degradation) recovery function, is able to re-establish the optimal conditions of the photovoltaic panel in order to prevent the loss of performance that the PID could cause during normal operation. This feature allows you to maintain an optimal level of performance with the effect of maximizing the life of the system and therefore the return on investment.

Integrated arc interruption system:

• The Integrated Arc Detection System (AFCI) allows for the immediate detection and interruption of any occurrence of an arc on the PV generation system. With this feature, the inverter is able to provide a reliable fire prevention mechanism where required for rooftop PV systems.

RSD compatibility:

• The PVS-10/33 inverter is tested to work with photovoltaic systems where there is the presence of rapid electrical disconnection (RSD) systems or I-V operating point optimizers at the individual module level (contact FIMER for a list of compatible systems).

Main features:

• Compact inverter suitable for both vertical and horizontal installation
• Fuse-free design
• Installation on new systems and retrofit applications
• Maximum string voltage 1100Vdc
• Support for high current photovoltaic panels
• PID recovery function (optional)
• Commissioning via lapp Installer for solar inverters
• Integrated export limitation function
• Current monitoring of each individual string
• Arc interruption system (optional).



Technical specifications:

INPUT:

• Maximum absolute DC input voltage 1100V
• Input DC activation voltage (Vstart) 250500V (default 430V)
• Operating range of DC input voltage (Vdcmin...Vdcmax) 200-1000 V
• Nominal DC input voltage (Vdcr) 620V
• Nominal DC input power (Pdcr) 20500 W
• Maximum recommended photovoltaic power (PPV, max) 34000 Wp
• Maximum DC input current (Idcmax) for each MPPT 2x26A+2x22A
• Maximum DC Input Power (PMPPT,max) for each MPPT 2x12000W+2x10000W
• MPPT DC Voltage Range (VMPPTmin to VMPPTmax) at Pacr 460-850V
• Maximum input short circuit current for each MPPT 40A
• DC connection type PV plug-in connector

Input protections

• Reverse polarity protection Yes, current limited
• Input overvoltage protection for each MPPT SPD Type II / Type I+II (optional)
• Insulation control Yes, according to local regulations.

OUTPUT

• Type of AC connection to the grid Three-phase (3W+PE or 4W+PE)
• LV distribution system TN-S, TN-C, TN-CS, TT
• Nominal AC power output (Pacr @ cos?=1 ) 20000 W
• Maximum AC power output (Pacmax @cos?=1) 22000 W up to 30°C (3)
• Maximum apparent power (Smax) 22000 VA up to 30°C
• Maximum Reactive Power (Qmax) 20000 VAR
• Nominal AC output voltage (Vac,r) 380V, 400V
• Maximum AC output current (Iac,max) 33.4 A
• Nominal output frequency (fr) 50 Hz / 60 Hz
• Output frequency range (fmin...fmax) 47...53 Hz / 5763 Hz
• Total current harmonic distortion <3%.
• Maximum permissible AC cable cross-section 35 mm2 copper/aluminium
• AC connection type disconnectable terminal block

Output protection:

• Anti-islanding protection In accordance with local regulations
• Maximum AC overcurrent protection 63 A
• Output overvoltage protection SPD Type II.

COMMUNICATION:

• Built-in communication interfaces Double Ethernet port, WLAN, RS-485 advanced port (optional)
• Communication protocols Modbus TCP Sunspec, Modbus RTU Sunspec, (optional)
• User Interface LEDs, Web User Interface, Installer APP, Display (optional)
• Claud Aurora Vision® Plant Management Platform services, Rest API
• Advanced features Export limitation control integrated (in combination with external meter), 24h self-consumption monitoring.

PHYSICAL FEATURES

• Grid connected inverter type, double stage, transformerless
• Degree of environmental protection IP65
• Environmental classification 4K26 (IEC 60721-3-4)
• Cooling system Forced cooling
• Dimensions (H x W x D) 675 (799.2 with connection boxes) x 591.8 x 227.5 mm
• Weight 50 Kg
• Mounting system Single mounting bracket (vertical/horizontal installation).
