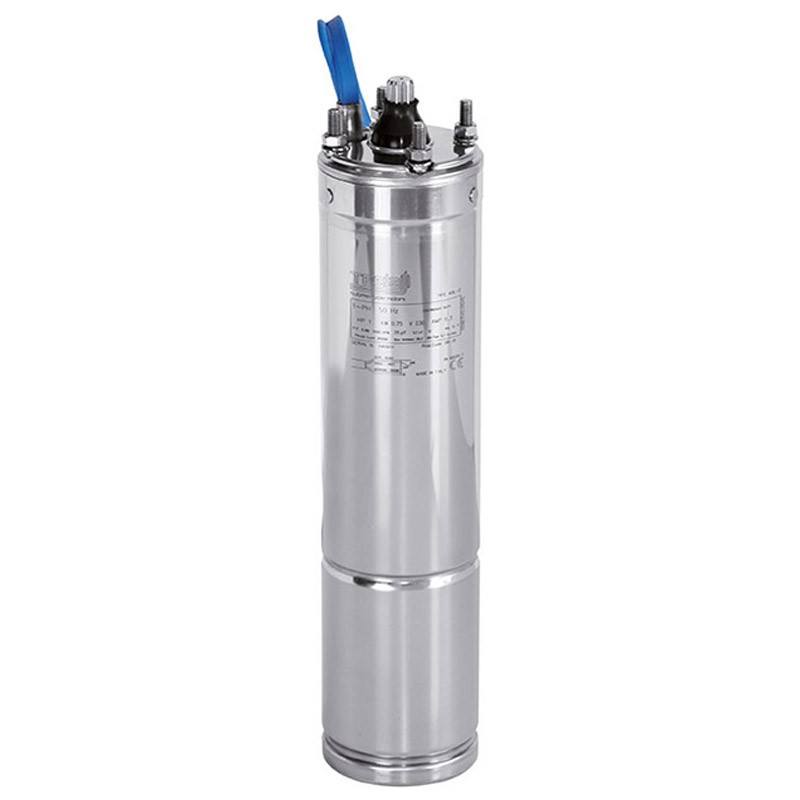

Submersible motor DAB 4OL 1.1 KW 4" Three-phase 400V 60168931
DAB 60168931
Submersible motor DAB 4OL 1.1 KW 4" Three-phase 400V two-pole asynchronous type, rewindable, constructed of AISI 304 stainless steel for parts in contact with water:
- Rated power 1.1kW
- Rated voltage 400W
- Rated current In 3.6
- Starting current/Nominal current 4.4
- Starting torque/Nominal torque 4.3
- Power consumption 1700W
- RPM - R.p.m 2830
- Cable cross-section 4x1.5 mm2
- Cable length 1.7 meters.
To be added Submersible electric pump DAB 4" S4 (see in accessories).
€192.96
€192.96
Tax included
Tax included
Items Available: 4
Frequently bought together
Cooling and lubrication of the ball bearings is provided by a special FDA-approved liquid. The stator is housed in an AISI 304L stainless steel jacket attached by steel pins to the upper motor support. The cable connector is removable to ensure fast and easy maintenance operations.
The cable is ACS, WRAS and KTW certified. The motor is suitable for use with variable speed drive (30 Hz-50/60 Hz). For the single-phase version, the capacitor and the manual reset current protection are placed in the switchboard that can be supplied separately; the 4OLTW version with capacitor included inside the motor is also available. For the three-phase version, protection must be provided by the user.
Features:
- Flanging: NEMA 4
- Insulation class: F
- Degree of protection: IP68
- Cooling flow speed: min. 0.3 m/s 35° C
- Power supply tolerance: + 6% / -10%
- Maximum number of starts: 20/h
- Max operating depth: 250 m
- Power 1.1kW/1.5hp
- Power supply 50Hz 400V
- In 3.6A
- Starting current/rated current 4.4
- Starting torque/Nominal torque 4.3
- Power consumption 1700W
- RPM - R.p.m 2830
- Length 334mm
- efficiency 65%
- Cable section 4x1.5mmq
- Cable length 1.7 meters
- Weight 8.7 Kg
- Axial thrust 2000 N
There are no reviews
Data sheet
- Type: Submersible motors
- Model: Three-phase
