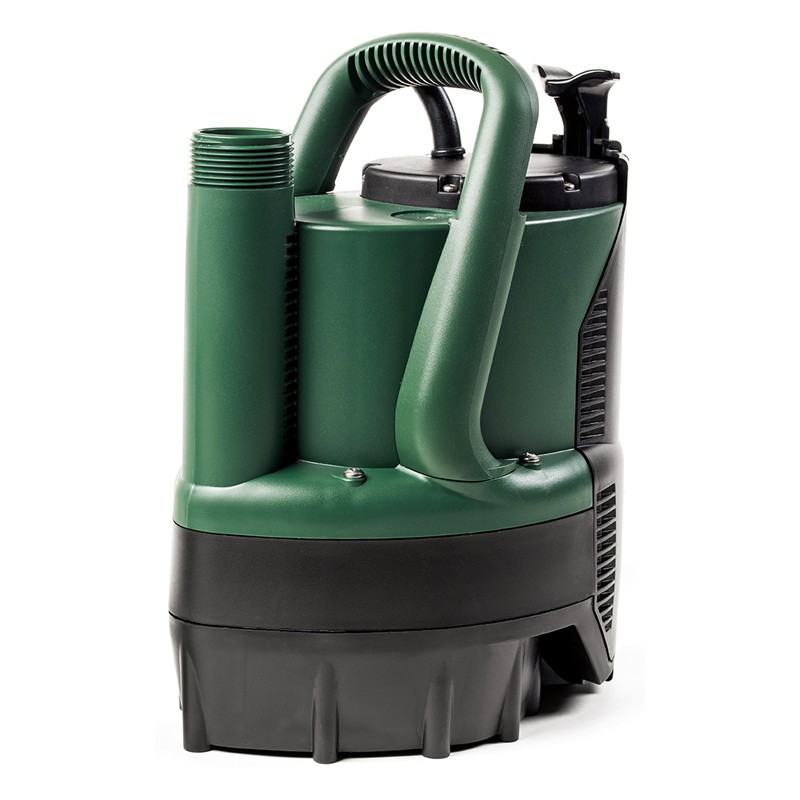

DAB VERTY NOVA 400M submersible pump 0.4kW 1"1/4 internal float 60122637H
DAB 60122637H
8059893035806
DAB VERTY NOVA 400M 0.4kW submersible pump with internal float switch for clear water drainage for domestic use:
- Power (kW): 0.4
- Maximum flow rate (l/h): 11.8
- Maximum head (m): 9
- DNM GAS: 1" ¼
- Single-phase power supply
- 10m power cord with plug
DAB VERTY NOVA 400M submersible pump 0.4kW 1"1/4 internal float 60122637H
€184.96
€184.96
Tax included
Tax included
Items Available: 7
: 1
The submersible drainage pump with vertical delivery is suitable for domestic use of fixed applications with automatic operation, for draining basements and garages prone to flooding. Due to its compact and handy shape, and integrated float switch, it is particularly suitable for small drainage sumps (minimum 20x20cm). It can find application as a portable pump for emergency cases such as: drawing water from tanks or rivers, emptying swimming pools and fountains or excavations and underpasses. Also suitable for gardening and general hobbies.
This pump can be used with liquids containing solids up to 5 mm in size.
The built-in float level switch allows for fixed installation ensuring automatic operation. Equipped with easy access to the float switch for maintenance and automatic or manual mode selector.
Minimum suction level down to 2/3mm.
Motor construction features: Submersible asynchronous type with continuous duty. Stator inserted in a hermetically sealed stainless steel casing and covered by a canopy enclosing wiring, microswitch and capacitor. Rotor mounted on greased-for-life, oversized ball bearings for quiet operation and durability. Built-in thermal-amperometric protection and permanently engaged capacitor.
Features:
- Pump body, impeller, cap and suction grille made of water-resistant technopolymer.
- Motor, rotor shaft and hardware made of stainless steel
- Triple interposed ring seal with dolio prechamber
- Operating range: from 1 to 10m3 /h with heads up to 9 meters
- Liquid temperature range: 0°C to +35°C for domestic use
- Pumped liquid: turbid water without fibers
- Pump priming limit: 10-15mm in manual operation
- Maximum immersion: 7 meters
- Power supply 50Hz 1 x 230V ~
- rated power 0.4kW
- rated power 0.55HP
- In 2.6A.
Data sheet
- Type: Submersible Pumps
- Model: 400 metres
- Connections: 1-1/4 inches
