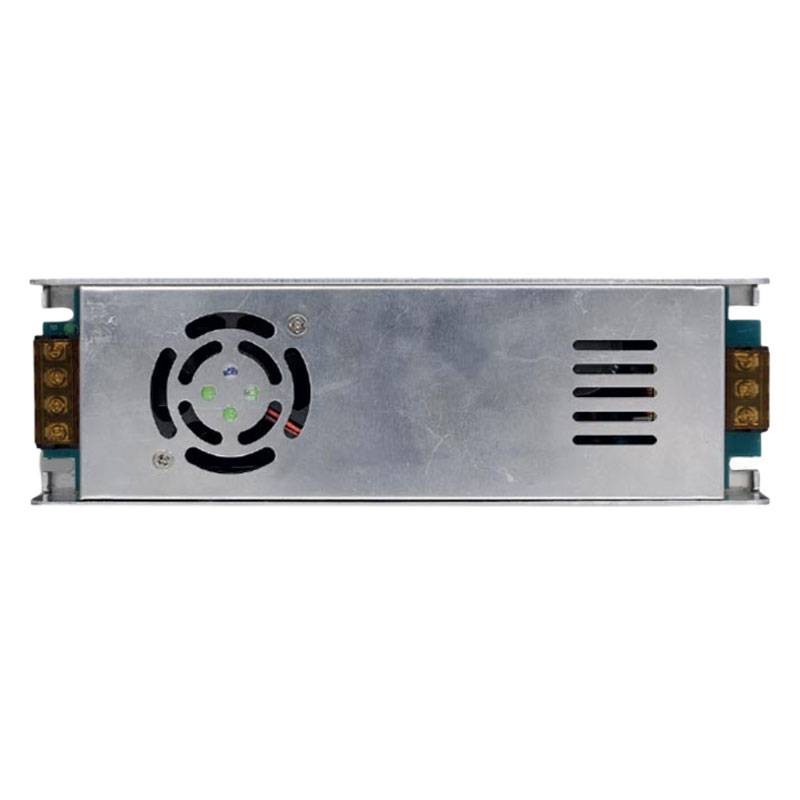

Ledco Transformer for LED Strips 360W 24Vdc IP20 TR24360
2AV TR24360
Ledco transformer for LED strips with the following characteristics:
- Voltage: 110-240 Vac - 24Vdc
- DC input current 40A - 230V AC
- Frequency: 50/60 Hz
- Power output 360W - 15A
- Power-on time < 1S (input 230V, Io=100%)
- Overload/overpower protection: 105 - 150 %
- Degree of protection: IP20
- Insulation Class: Class 1
- Safety Standards: GB4943, UL60950-1,EN60950-1
Ledco Transformer for LED Strips 360W 24Vdc IP20 TR24360
€50.51
€50.51
Tax included
Tax included
Items Available: 63
: 20
Features:
- Intended use: indoor
- Installation: Wall Mounting - Ceiling Mounting
- Fixing: With screws not included
- Body - Structure: Metal
- Power supply: 110-240 Volt alternating current
- Working temperature: -20°/+60°C / 20% ~ 90%RH (no frost)
- Storage temperature: -40°/+85C° / 10% ~ 95%RH (no frost)
- Weight: 0.557kg

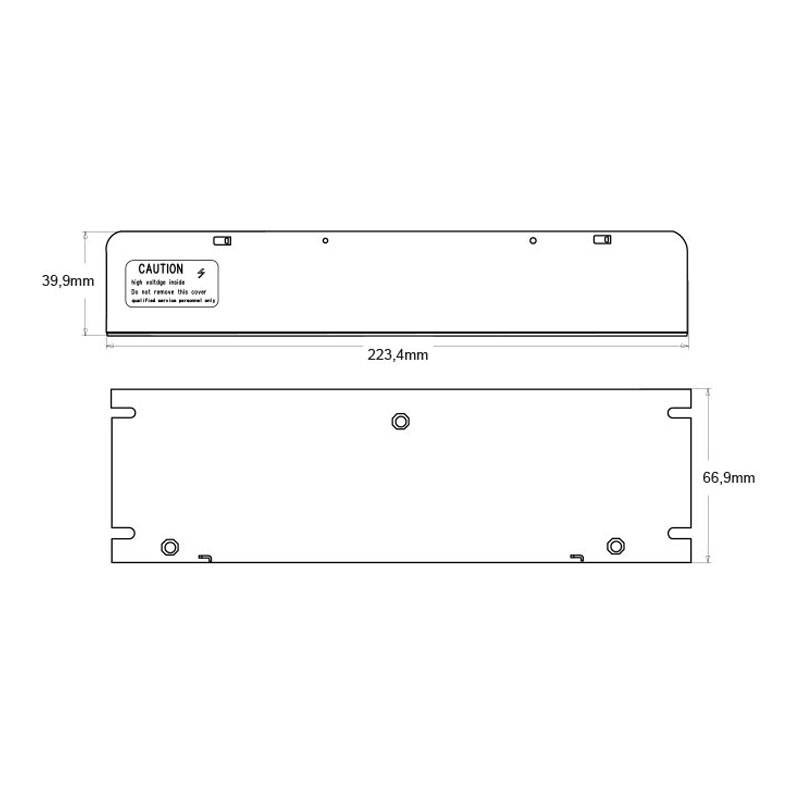

- Dimensions: 225 x 68 x 42 mm
- Cooling: forced ventilation
- Glow wire: 650C°
There are no reviews
Data sheet
- Type:
- Power supplies
- Voltage:
- 24V
- Degree of protection:
- IP20
- Watts:
- 201 to 500W
