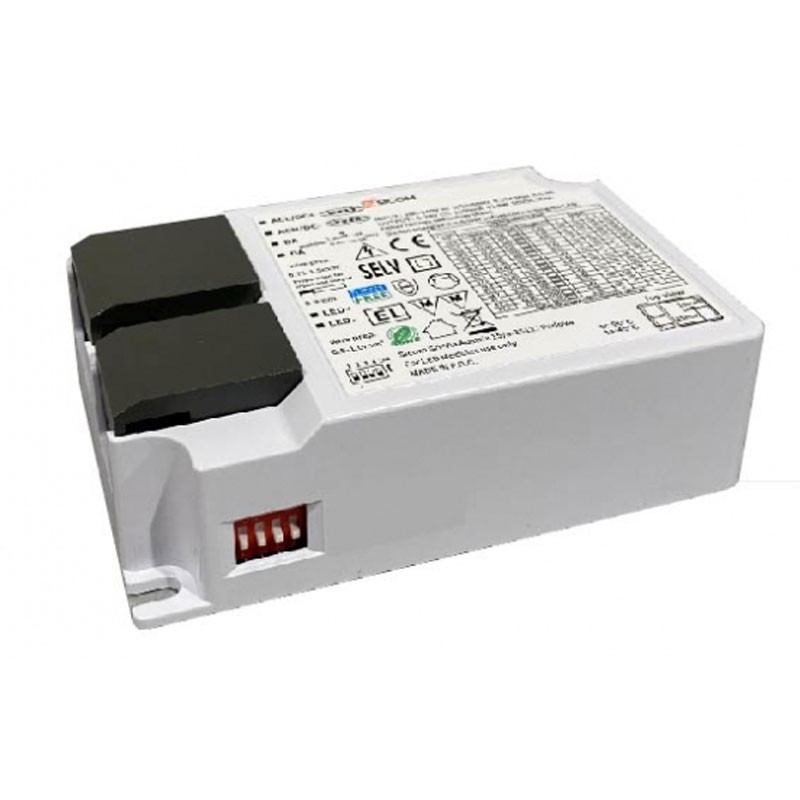

Sicom Dali Push Led Power Supply Driver 60W 800-2000mA 5601321

Sicom Lighting
SOL 5601321 8050038308823

Driver Power Supply Led Sicom Dali Push with the following characteristics:



  • Power: 60 watts
  • Nominal output current: 800-2000 mA
  • Rated output voltage: 6-42V
  • Regulation method: Direct current
  • Degree of protection: IP20
  • Driver has 16 current levels that can be set via dip-switch
  • Supports central emergency application (normal dimming in the DC input)
  • Supports DALI and Push Dimming mode
  • dimmable
    • Do you have questions about this product or did you not find what you were looking for? Ask us!

    Sicom Dali Push Led Power Supply Driver 60W 800-2000mA 5601321

    €47.34
    €47.34

    Sicom Dali Push Led Power Supply Driver 60W 800-2000mA 5601321

    €47.34
    Tax included
    Items Available: 18
    Further availability of the manufacturer

    Sicom Dali Push Led Power Supply Driver 60W 800-2000mA 5601321

    €47.34

    Buy it within and receive it from Monday, 11 November
    Two-year warranty
    Easy return within 14 days
    Purchase with tax breaks

    Are you a professional ?

    Request access to

    Trustpilot

    Short-circuit behavior of the output:

    • In the event of a short circuit on the LED output, the LED output will be turned off.
    • After restarting the LED driver, the output will be turned on again
    • Restart can be done by network restoration or by interface



    No-load operation of the output:

    • The LED driver will not be damaged during idle operation
    • The output will be turned off and thus de-energized
    • If an LED load is connected, the device must be restarted before the output is activated again



    Output overload protection:

    • If the output voltage range is exceeded, the LED drivers will turn off the LED output
    • After restarting the LED driver, the output will be activated again



    Hot plug-in output: For LED protection, if you connect the LED to the output of the powered driver, the LED will not turn on and the device will need to be restarted.



    Output parameters:

    • DIP Swich output current adjustment with 16 levels
    • Output current ripple LF ±2%.
    • Output current accuracy ±2%
    • Linear adjustment ±1%



    Input parameters:

    • Rated input voltage: 200-240V AC DC
    • Rated input voltage: 180-264V AC DC
    • Input frequency: 50/60 Hz
    • Inrush current: 9.1A



    Safety:

    • Voltage withstand: I/PO/P(LED):3750 V AC, O/P(LED)-O/P(DIM):500 V AC, I/PO/P(DIM):500 V AC, I/P-DALI: 500 V AC
    • Mains overvoltage capability: LN:2KV
    • Leakage current: <0.7 mA (230V AC and full load)
    • Insulation resistance: I/PO/P:100 Mÿ/500 V DC/25°C/70% RH



    Environment and durability:

    • Operating temperature: -20/+45 degrees
    • Housing temperature: 90 degrees
    • Operating humidity: 5-85% RH, non-condensing
    • Acoustic noise: <25 dB (30 cm, full load)

    There are no reviews

    Data sheet

    Type:
    Power supplies
    Voltage:
    6-42V
    Degree of protection:
    IP20
    Watts:
    51 to 100W
    Dimmable:
    Yes
