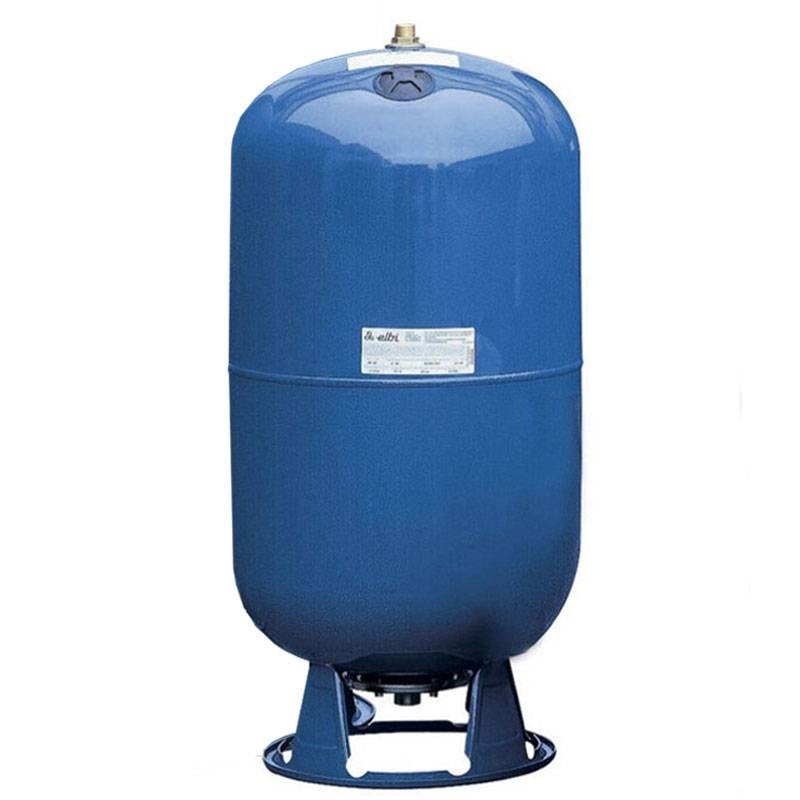

Elbi AFV 150-liter diaphragm pressure vessel for domestic water A032L43
ELB A032L43
8019742012211
Elbi AFV 150 membrane pressure vessel for domestic water with the following features:
- Capacity: 150 liters
- Precharge pressure: 2.5 bar
- Maximum pressure: 10 bar
- Blue color epoxy powder coating
- Interchangeable EPDM rubber diaphragm
- Complete separation of water and air
- Complete separation of water from the metal parts of the tank

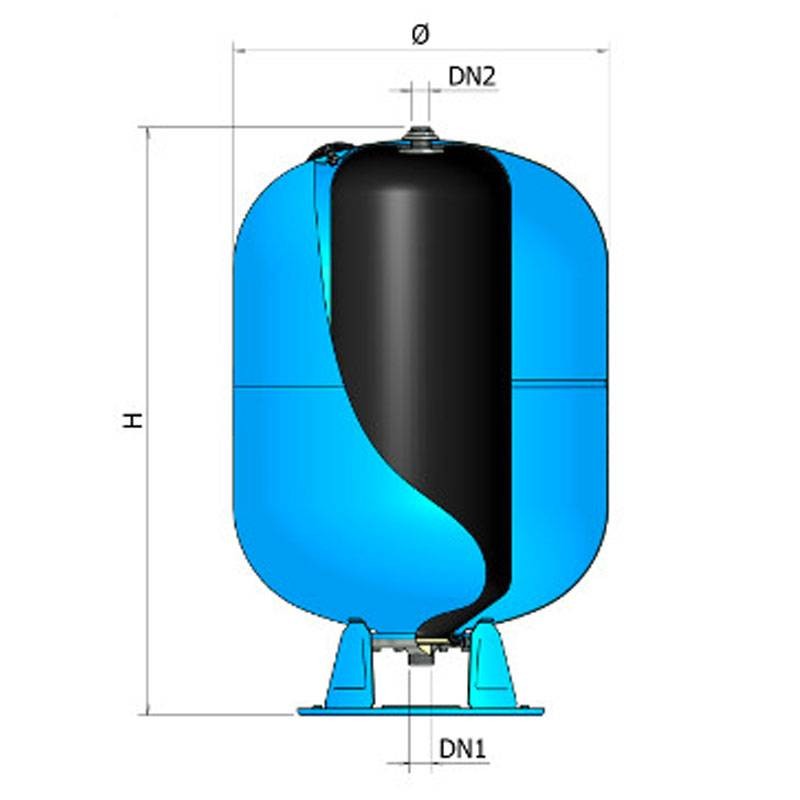

- Height: 945 mm
- Diameter: 500 mm
- DN1: 1 inch
- DN2: 1/2 female - 3/4 male
The diaphragm pressure vessel is a device designed to supply water at a chosen pressure, regardless of the supply pressure, by limiting the number of pump insertions.
Elbi AFV 150-liter diaphragm pressure vessel for domestic water A032L43
€267.43
€267.43
Tax included
Tax included
Items Available: 4
: 2
A diaphragm pressure vessel is a device designed to supply water at a chosen pressure, independent of the supply pressure, by limiting the number of pump insertions.
The driving agent that makes this energy transformation possible is a cushion of pressurized air (or nitrogen) stored between the membrane and the metal wall of the vessel. This cushion compresses as pressure increases, allowing water to enter the vessel and thus storing water under pressure.
Membrane pressure vessels, in contrast to conventional non-membrane air cushion autoclaves, offer:
- energy savings: decrease in the number of pump starts
- reduction in installation costs: air not being in contact with water cannot disperse so there is no need to install a compressor, to restore this cushion
- reduction of maintenance costs: the vessel needs only a precharge pressure check; in addition, the diaphragm can be changed, disassembled and reassembled, without any technical problems and in a short time
- reduction in the volume of water to be stored, thus less space required
- reduction of water pollution risks: the membrane also acts as a barrier for any suspended substance in the air, such as: oil, smoke, bacteria, odors, dust, etc.; causing a possible alteration of water quality. The membranes are certified for food use
- long tank life: by preventing direct contact of water with the tank walls, the membrane ensures that there is a marked reduction in corrosion
- dual utility: this type of tank also acts as a water hammer damper
AF series interchangeable diaphragm tanks are suitable in most residential and industrial installations where substantial water flow rates are required.
Food-grade EPDM rubber diaphragm tested, with elastic characteristics that allow full expansion within the tank to ensure better performance and longer life.
Features:
- Temperature. of operation: -10° / +99°C
- Long-lasting epoxy powder coating for added protection against weathering. Blue color
- Complete separation of water and air
- Complete separation of water from the metal parts of the tank
- Declaration of conformity with the essential safety requirements of Directive 2014/68/EU
There are no reviews
Data sheet
- Type:
- Diaphragm pressure vessels
- Capacity:
- 150 Liters
