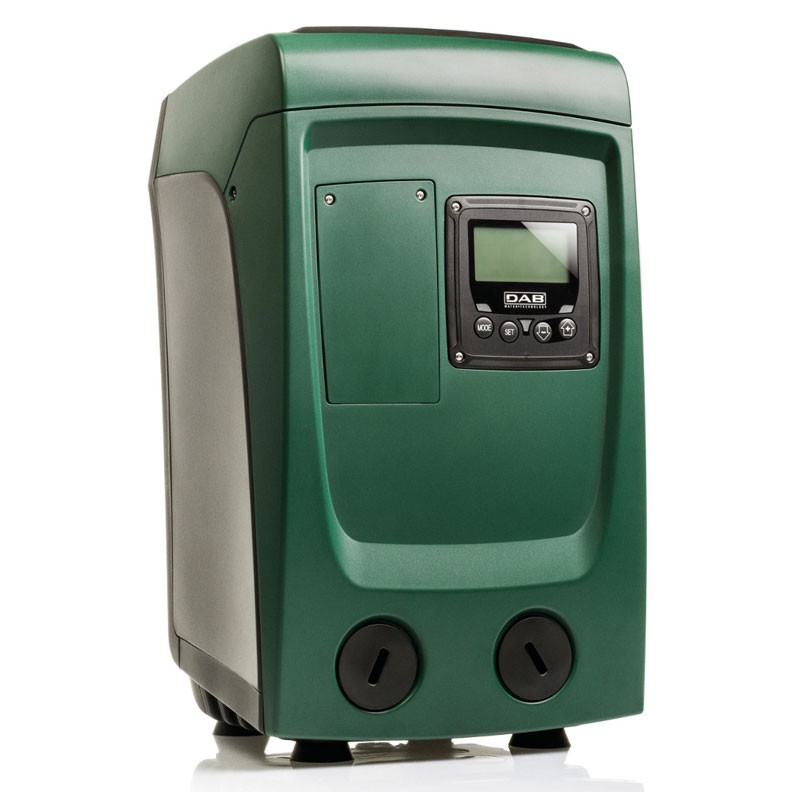

DAB ESYBOX MINI 3 NEW Pressure booster System 230V

Brand: Dab

Code: DAB 60212597 EAN: 8059893316530

DAB ESYBOX MINI 3 NEW Pressure booster System:

Single-phase power supply: 230 V 50 Hz
Connections DNA 1" Inch - DNM 1" Inch
Applications up to 3-story building - 4 bathrooms
Flow rate: 4.8 m3/h
Head: 55 m
Type of pumped liquid : Clean, free of solids or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral
Built-in connectivity (DAB Live APP for end user)
Maximum suction depth: 8 m
Maximum operating pressure: 7.5 bar / 750 kPa
Motor degree of protection: IP X4
Motor insulation class: F
Power cord length and plug type: 1.5 meters with schuko plug
Possible type of installation: Fixed, horizontal, vertical or wall-mounted using appropriate accessory
Certifications: WRAS, ACS, NFS

€667.38

€667.38
Tax included

Items Available: 18

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

Advantages:

DAB's Esybox Mini 3 is designed for pressurization, gardening and irrigation, and subsurface withdrawal activities in domestic and residential settings
It belongs to the Esyline series and thus has a variety of accessories
The system is all-inclusive, including an expansion tank, a self-priming multi-impeller pump, an inverter, and a display, among other components
Thanks to Esybox Mini 3 low water pressure in the home will no longer be a problem because the Esybox Mini 3 autoclave pump is able to increase it and keep it constant
Thanks to the built-in self-priming pump, it can also draw water from wells
The presence of the inverter allows the motor to vary the number of revolutions according to demand, allowing for greater efficiency and thus energy savings
Electronic self-priming multi-impeller pressurization system for underground withdrawal from shallow wells, rainwater reuse, and small garden and vegetable garden watering activities
Ability to create groups of up to two pumps wirelessly
Supports remote control function with DConnect service integrated directly into the system
Esybox Mini 3 is quiet, just 45dB, less than a conversation between people and therefore installable even in living areas, such as the kitchen. Remote control of the pump is possible with the DConnect service (integrated). It is also possible to create groups of two pumps

Construction features of the pump:

Multi-impeller self-priming pump. Sound-absorbing ABS protective casings. Technopolymer impellers. Stainless steel drive shaft. Integrated check valve and expansion tank.

Motor construction features:

Motor cooled by pumped liquid, stainless steel motor jacket. Complete with power cord with plug

Electronics features:

Swiveling display. Inverter function provides energy saving and water hammer protection. Wizard for first start-up, easy setup, ability to view alarm history
Number of impellers 3
Power supply single-phase 220-240V 50/60Hz
Max power 0.85kW/1.1HP
Current In 4.8A
Dimensions: depth 236 mm - width 263 mm - height 439 mm
