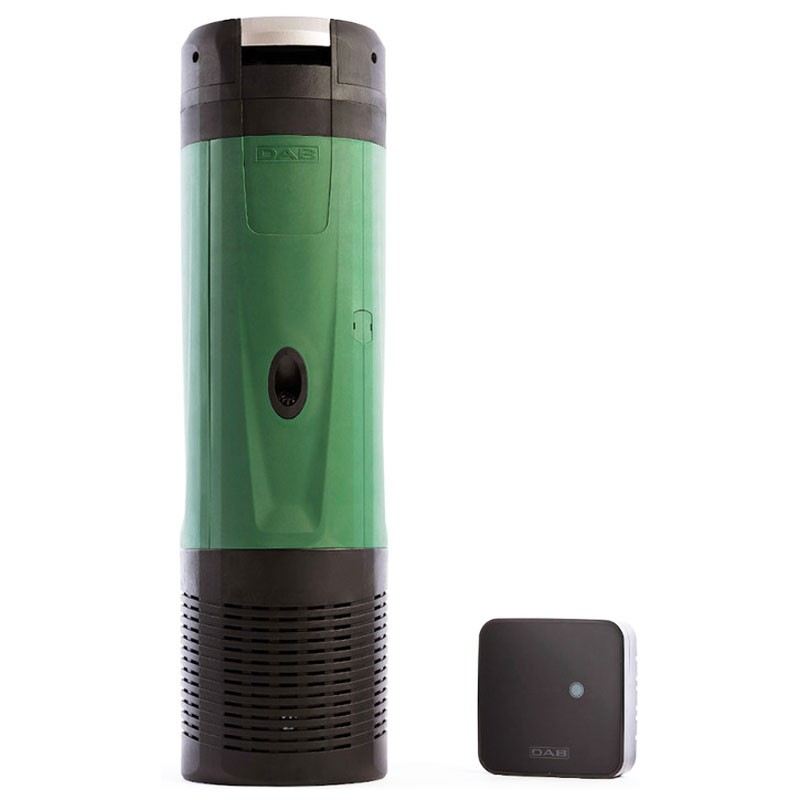

Dab Submersible pump with inverter ESY-DIVER 55/120 1,3HP WIFI 60188296
DAB 60188296
8059893250476
Dab ESY-DIVER 55/120 WIFI Multi-impeller 7" submersible pump with integrated inverter for clean water designed for use in sumps, cisterns or tanks.
- Power supply 1 x 220-240 V ~ 50Hz
- DNM connection diameter 1" 1/4
- Max Power 1.3KW
- Rated power 0.95kW
- Applications: up to 6 floors - 9 apartments
- Equipped with PLC (PowerLine Communication) and Wi-Fi technology
Dab Submersible pump with inverter ESY-DIVER 55/120 1,3HP WIFI 60188296
€1,121.18
€1,121.18
Tax included
Tax included
Items Available: 5
: 1
It is suitable for pressurization, rainwater reuse and gardening and irrigation in domestic and residential areas. The pump can also be installed horizontally. Equipped with PLC (PowerLine Communication) and Wi-Fi technology. The whole pump is IP68 certified.
Pump construction features:
- Technopolymer pump body to resist corrosion and oxidation
- There is a pressure relief valve to resist water hammer and pressure generated by ice that may form in the external piping, the valve prevents damage to the pump
- Relief valve that improves priming during initial installation or in the event of tank/sump emptying
- Stainless steel handle for transportation
- Built-in 0.04-liter expansion tank with no maintenance or refilling required, making the use of an external expansion tank unnecessary
- The coupling between the three technopolymer impellers, the floating ring and the washer disc, both made of stainless steel, allow a limited wear of the hydraulics and a more precise alignment of the components
- Adjustable suction height: 3.5, 4, 6 or 8 cm
Motor Construction Features:
- Submersible, high-efficiency permanent magnet motor, cooled by the pumped fluid
- Hydraulic-side motor shaft in AISI 303 stainless steel
- Double mechanical seal in dolio chamber where the seal on the motor side is subjected only to the submersibility pressure (1 bar), while the second one is subjected to the working pressure (up to 5,5 bar), thus ensuring the watertightness of the pump
- Electronic thermal protection against overheating of the motor
- Cable with quick coupling/uncoupling, to facilitate the installation inside tanks or cisterns
- Anti-tear power cord connection.
Electronics features:
- Inverter operation allows the pump to start up according to the demands of the system, maintaining a constant working pressure (adjustable from 1 to 5.5 bar) allowing energy savings, electronics protects against dry running
- PLC communication technology, the pump transmits data via the power cord to the DConnect Box 2
Applications:
- DAB's E.sybox Diver can be used for pressurization in domestic water systems, for irrigation of vegetable gardens and gardens, for withdrawals from underflow or from tanks and cisterns
- Its power allows to serve villas and small condominiums up to five floors with six apartments
- It can be used submerged, or partially submerged and, by purchasing the optional DOC68 base, also as a surface pump in partially protected locations
- Can be submerged up to a maximum of 12 m and the suction height adjusted up to 8 cm from the bottom
- The pumped liquid must be clean water.
Guaranteed savings and high comfort:
- E.sybox Diver from DAB boasts excellent performance in terms of head and flow rate
- The motor has a power rating of 0.95 kW (or 1.3 HP) and, thanks to the three technopolymer impellers supplied, achieves a flow rate of up to 110 l/min (6.6 m3/h) and a head of up to 55 m (55 ft).
- The working pressure, which can be set between 1 and 5.5 bar, will always be constant thanks to the inverter system: no more water pressure problems while showering or watering the garden! Savings are guaranteed because the use of inverter technology allows you to adjust the speed of the motor of E.sybox Diver depending on the actual demand for water at each withdrawal with a consequent reduction of costs in the bill.
- The NFC (Near Field Communication) pocket supplied allows you to connect a float or a level sensor without compromising the watertightness of the pump; PLC (Power Line Communication) technology and integrated Wi-Fi allow remote monitoring of the pump without any physical connection: the DConnect Box 2 supplied as standard and a Wi-Fi connection to the internet allow installers and end users to interact easily and quickly with the pump, make the setting, monitor consumption.
Dimensions:
- Height: mm 651 Diameter: mm 185 Outlet: 1 1/4
- Weight: kg 17.
E.sybox Diver is a robust pump with a modern and functional design; built with high quality materials, it is a product destined to last and perform over time.
I have owned a couple of these and they are a great pump. They are very reliable and that is why I bought 2 more.
Data sheet
- Type: Submersible Pumps
- Connections: 1-1/4 inches
