Grundfos UPA 15-120 hot water recirculation for domestic use 230V 1 inch 200mm 99553575
GRU 99553575
5713830937983
Hot water recirculation Grundfos UPA 15-120 for domestic use is a high-efficiency domestic inline supercharging pump that increases water pressure to required levels in showers, faucets, and other points in the home.

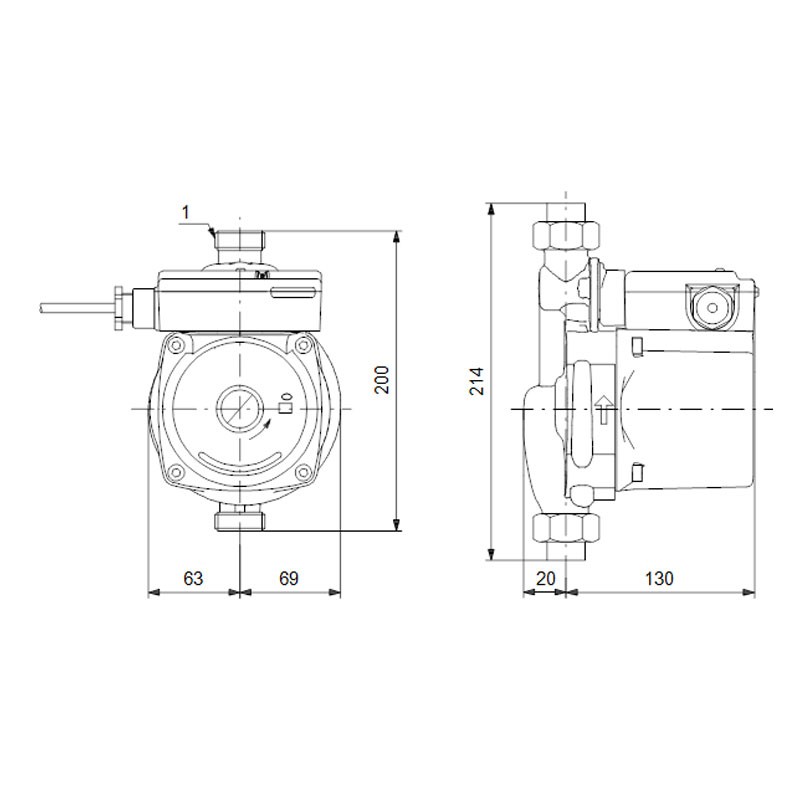

Pipe connection 1 inches, Connection pressure rating PN 10, Centre distance 200 mm.
Grundfos UPA 15-120 hot water recirculation for domestic use 230V 1 inch 200mm 99553575
€205.08
€205.08
Tax included
Tax included
Items Available: 5
Grundfos UPA 15-120 is a domestic booster designed to increase the pressure of drinking water supplied from an external source in residential homes. UPA booster pumps increase domestic water pressure to make the required pressure available at showers, faucets and other points of withdrawal.
Inlet to outlet port: This pump has an inlet and outlet port of 1. The pump pressure rating is PN 10 and the port to port length is 200 mm.
The UPA 15-120 offers the comfort of constant water pressure with automatic start and stop. This is controlled by the integrated flow switch which ensures optimal start/stop of the booster pump according to demand. The design is robust and built on anti-corrosion materials and cataphoresis coated cast iron pump body to ensure long life. The pump is a fixed rotor type where pump and motor form an integral unit without shaft seal.
This pump should always be installed with a horizontal motor shaft. This booster has a 2-pole asynchronous squirrel cage motor with thermal protection. The bearings are lubricated by the pumped liquid. These design features ensure maintenance-free operation.
Approvals: The pump has the following approvals CE, WEEE-UPA, MORO.
Advantages:
- Integrated flow switch: automatic start and stop according to demand.
- Low noise level
- Easy installation: Compact in-line booster plug and pump
- Integrated check valve
- Improved corrosion resistance
- Integrated motor protection.
LIQUID:
- Pumped liquid: Water
- Liquid temperature range: 2 ... 95 °C
- Liquid temperature during operation: 60 °C
- Density: 983.2 kg/m³.
MATERIAL:
- Pump body: Cast iron
- Impeller: PP Composite.
INSTALLATION
- Max ambient temperature: 40 °C
- Max operating pressure: 10 bar
- Connection type: G
- Pipe connection: 1
- Nominal connection pressure: PN 10
- Centre distance: 200 mm.
ELECTRICAL DATA
- Max power consumption: 200 W
- Mains frequency: 50 Hz
- Nominal voltage: 1 x 230 V
- Current at speed 3: 0.89 A
- Capacitor capacity - running: 6 µF
- Protection class (IEC 34-5): X2D
- Insulation class (IEC 85): F
- Power plug: Schuko plug.
OTHER:
- Gross weight: 5.45 kg
- Package volume: 0.006 m³.
good product purchased for a good price. Have to install still so don't know how it will work yet.
Data sheet
- Type:
- Water circulation
- Connections:
- 1 inch
- Axle base:
- 200mm
