Cappellotto MDSS manifold for 8-way 1-inch radiant systems UFH5708
HCO UFH5708
5414764430099

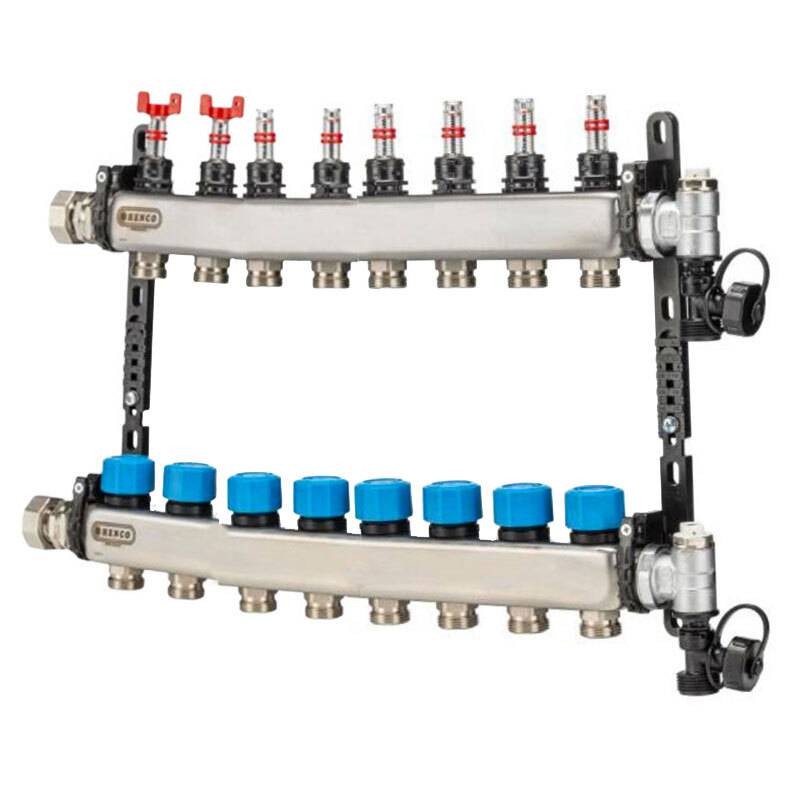

MDSS Cappellotto manifold specifically for radiant air conditioning systems with the following characteristics:
- 8-way
- Manifold main connection: 1 inch Female
- Eurocone branch connection: 3/4 Male EK
- Center distance: 50 mm
- Operating pressure: 0.2/6 bar
- Maximum pressure with water (24h <30°C): 10 bar
- Length: 528 mm
Cappellotto MDSS manifold for 8-way 1-inch radiant systems UFH5708
€274.77
€274.77
Tax included
Tax included
Items Available: 5
: 3
It consists of: supply and return manifolds, 2 manual vents and 2 loading/unloading taps. The manifold is equipped with height-adjustable anti-vibration brackets with special geometry that allows misalignment between supply and return manifolds facilitating self-adhesive passage.
The supply manifold is equipped with flow meters. The return manifold is equipped with pre-calibrated valves, with cap for manual control, arranged for installation of electrothermal heads.
The inlet and outlet connections are 1 female while the branches are 3/4" male eurocone and have 50 mm spacing. The manifold is supplied with a pair of self-adhesive thermometers.
Features:
- Body material: stainless steel
- Permissible fluids: water/glycol water
- Maximum percentage of glycol: 45 percent
- Operating temperature: 5/55 degrees
- Maximum temperature at 3 bar: 90 degrees
- Operating pressure: 0.2/6 bar
- Maximum pressure with 24h water <30°C: 10 bar
- Ambient temperature: -5/+70 degrees
- Ambient humidity %RH < 90
- Wheelbase: 50 mm
- Adjustable brackets 200-240 mm
- Flow meter: 0/3 l/m
- Cassette depth >76 mm
- Measuring range: 0/3 l/m
- Maximum flow rate adjustment torque: 1 Nm
The flow meter is equipped with a key for flow adjustment. For proper setting of the system, turn the key counterclockwise to the maximum flow rate, when the indicator reads 3 l/min.
To close the meter, turn the key clockwise to the minimum flow rate, when the indicator reads 0 l/min. To avoid possible damage to the manifold, it is recommended to use only the keys provided. Do not use any other tools to adjust the flow meters.
There are no reviews
Data sheet
- Type:
- Modular Manifolds
- Connection:
-
F
M - Connections:
-
1 inch
3/4 inches
