Cappellotto MDSS manifold for radiant systems 15 way 1 inch UFH5715
HCO UFH5715
5414764430167
MDSS Cappellotto manifold specifically for radiant air conditioning systems with the following characteristics:
- 15-way
- Manifold main connection: 1 inch Female
- Eurocone branch connection: 3/4 inch Male EK
- Center distance: 50 mm
- Operating pressure: 0.2/6 bar
- Maximum pressure with water (24h <30°C): 10 bar
- Length: 878 mm
Cappellotto MDSS manifold for radiant systems 15 way 1 inch UFH5715
€454.29
€454.29
Tax included
Tax included
Items Available: 2
: 1

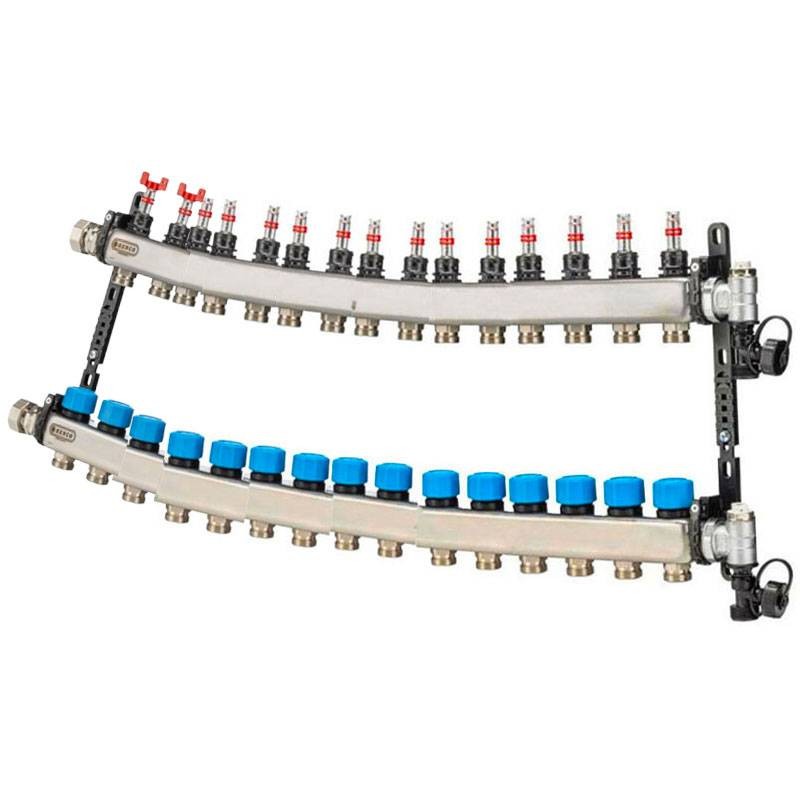

It consists of: supply and return manifolds, 2 manual vents and 2 loading/unloading taps. The manifold is equipped with height-adjustable anti-vibration brackets with special geometry that allows misalignment between supply and return manifolds facilitating self-adhesive passage.
The supply manifold is equipped with flow meters. The return manifold is equipped with pre-calibrated valves, with cap for manual control, arranged for installation of electrothermal heads.
The inlet and outlet connections are 1 female while the branches are 3/4" male eurocone and have 50 mm spacing. The manifold is supplied with a pair of self-adhesive thermometers.
Features:
- Body material: stainless steel
- Permissible fluids: water/glycol water
- Maximum percentage of glycol: 45 percent
- Operating temperature: 5/55 degrees
- Maximum temperature at 3 bar: 90 degrees
- Operating pressure: 0.2/6 bar
- Maximum pressure with 24h water <30°C: 10 bar
- Ambient temperature: -5/+70 degrees
- Ambient humidity %RH < 90
- Wheelbase: 50 mm
- Adjustable brackets 200-240 mm
- Flow meter: 0/3 l/m
- Cassette depth >76 mm
- Measuring range: 0/3 l/m
- Maximum flow rate adjustment torque: 1 Nm
The flow meter is equipped with a key for flow adjustment. For proper setting of the system, turn the key counterclockwise to the maximum flow rate, when the indicator reads 3 l/min.
To close the meter, turn the key clockwise to the minimum flow rate, when the indicator reads 0 l/min. To avoid possible damage to the manifold, it is recommended to use only the keys provided. Do not use any other tools to adjust the flow meters.
