Cappellotto Recessed cabinet for manifolds 700x630x90/130 mm 0700630090
HCO 0700630090

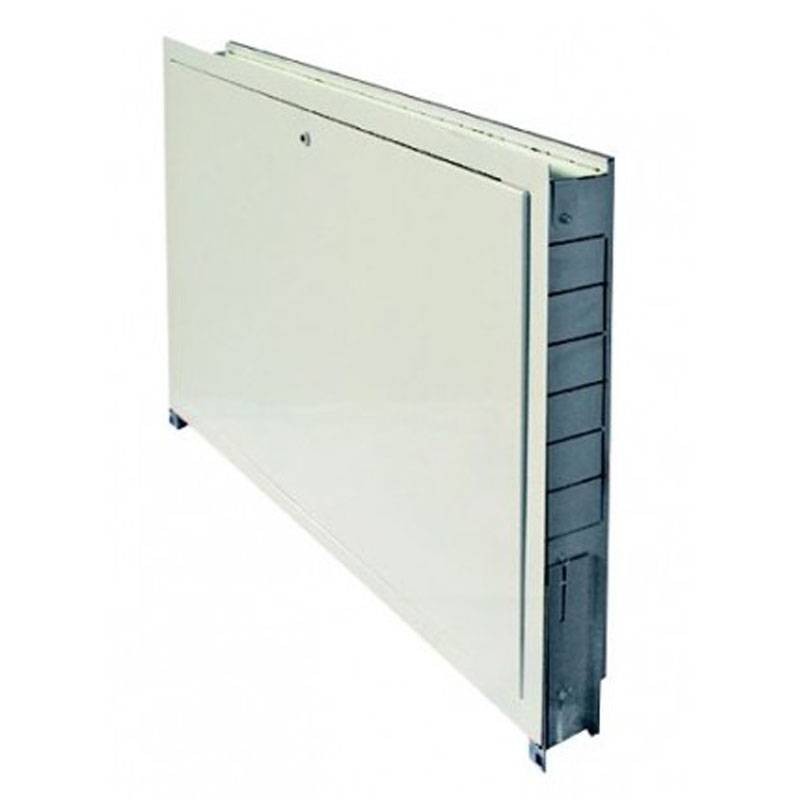

Galvanized metal recessed manifold cabinet with white color enameled frame and door with the following features:
- Side walls with pre-drilled holes for pipe entry
- Pipe passage possible at front and rear
- Adjustment rails allow the collector to be attached with maximum freedom
- Built-in site protection
- Adjustable depth from 90 to 130 mm and height 630 mm

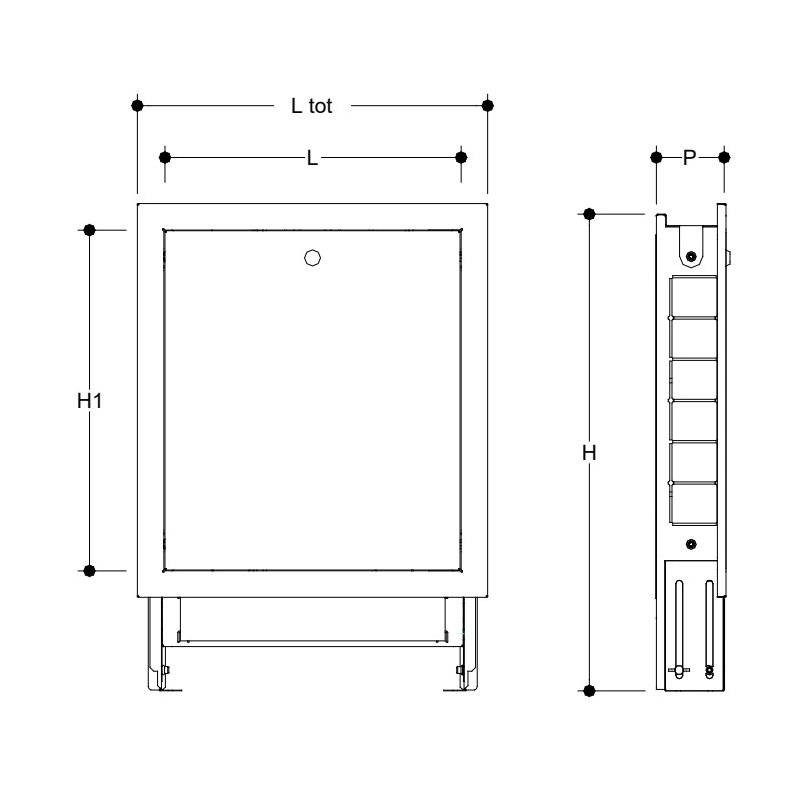

- Dimensions: 700x770x630x450x90 mm (L-L tot-H-H1-P)
Cappellotto Recessed cabinet for manifolds 700x630x90/130 mm 0700630090
€125.30
€125.30
Tax included
Tax included
Items Available: 4
: 2
Steel structure complying with CNR UNI 111 - 122/84 10024 standards; rustproof because it has no welding points; supplied fully assembled.
Recessed base complete with: electro-welded mesh for better fixing to plaster; feet to adjust height (100 mm range); anchors and cavities for better structural solidity. Side walls with pre-drilled holes for pipe entry. Pipe passage possible at front and rear.
Adjustment rails allow manifold attachment with maximum freedom. Built-in site protection. This type of cassette is the only one suitable to accommodate the regulating unit and 1 1/4-inch manifolds.
There are no reviews
Data sheet
- Type:
- Cabinets for Manifolds
