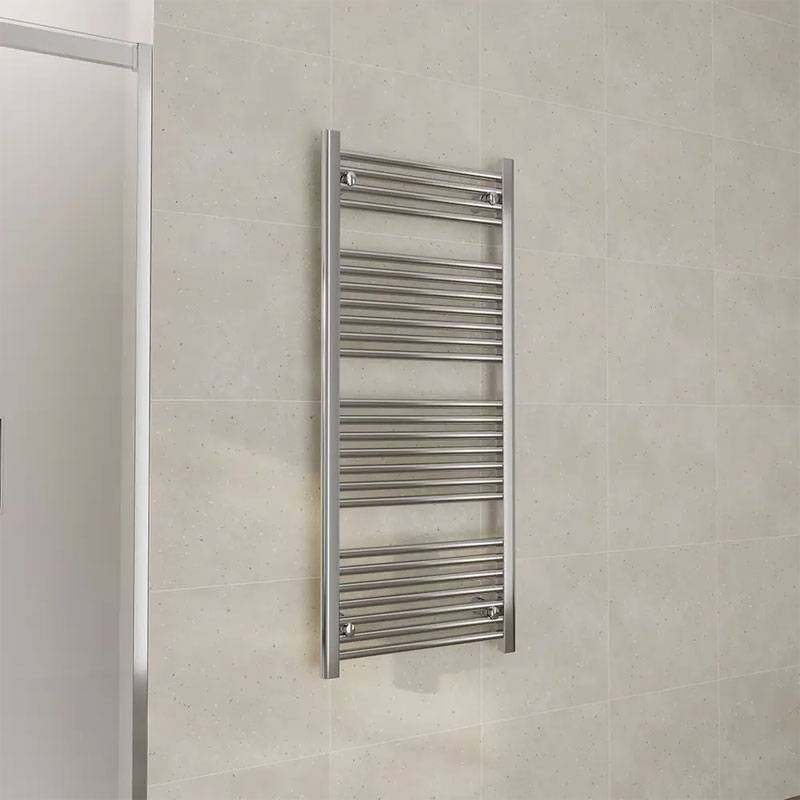

Lazzarini Sanremo straight electric radiator 803x500x450mm chrome 100974
LZZ 100974
Lazzarini Sanremo electric radiator straight model:
- Height 803mm
- Width 500mm
- Wheelbase 450mm
- Composed of 17 tubes
- Tubes diameter 22x0.9
- Colour Chrome
- Material Carbon steel
- Connections 3x1/2 (connection for relief valve, included)
- Wall mounting 3
- Manifolds "D" profile 40x30x1.2mm
Lazzarini Sanremo straight electric radiator 803x500x450mm chrome 100974
€92.28
€92.28
Tax included
Tax included
Items Available: 27
: 22
Overview:

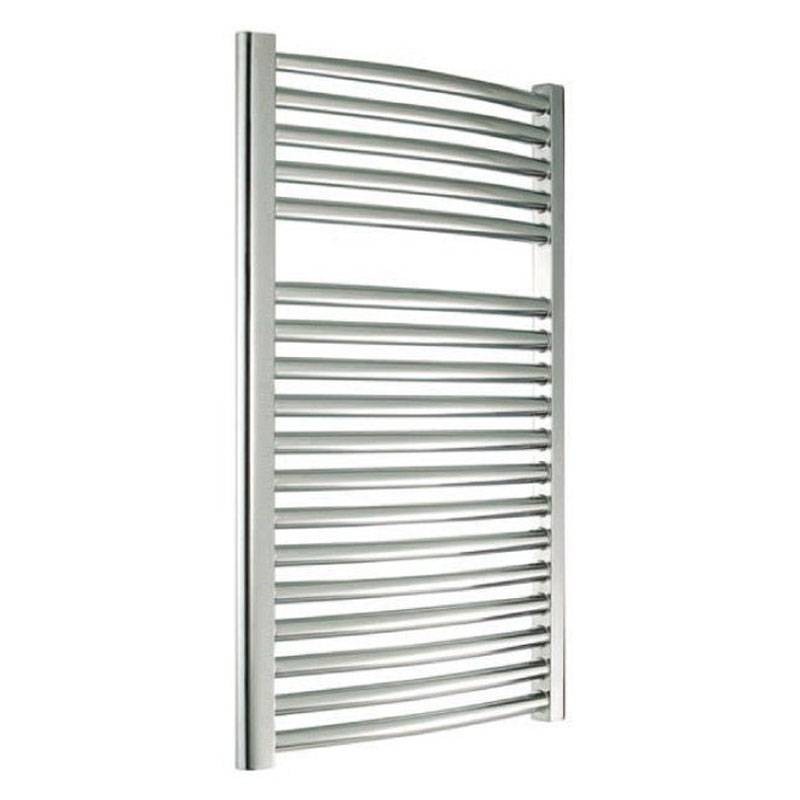

Steel bathroom towel warmer with 40x30 mm D-shaped side manifolds and 22 mm diameter brazed horizontal round tube in straight or curved variants. Oval brackets, three in the straight variant, four in the curved variant. The radiator offers excellent performance and is electrifiable. In addition to stock finishes, the product can be customized by choosing from Lazzarini's color map RAL colors and VOV's exclusive mineral finishes.
Features:
- Max operating pressure 10 bar
- Max operating temperature 90 °C
- Epoxy-polyester powder coating
- Packaging P.P. corners + cardboard box + outer nylon
- Standard equipment 1 wall mounting kit - 1 vent valve
- Weight 6 kg
- 3.8 liters water
- Temperature 50 degrees 291W
- Temperature 30 degrees 156W
- Temperature 42.5 degrees 239W
- Temperature 60 degrees 365W
- Heating element 300W
- Exponent n 1.23286
Suitable for:
- Single-pipe valve
- Flag connection
- Combined use
There are no reviews
Data sheet
- Colour:
- Chrome
- Type:
- Electric radiators
- Installation:
- Vertical
- height:
- 803mm
- Series:
- San Remo
- Axle base:
- 450mm
- Width:
- 500mm
