Fischer Aluminium Central Clamp For Photovoltaic With Frame 00571214
FIS 00571214
8001132072196
Central Clamp Fischer PM C 33-39 Aluminium Photovoltaic Clamp with frame, can be used with Solar Profiles, Panel thickness: from 33 to 39mm.
Fischer Aluminium Central Clamp For Photovoltaic With Frame 00571214
€2.14
€2.14
Tax included
Tax included
Items Available: 4267
: 3016
Features:

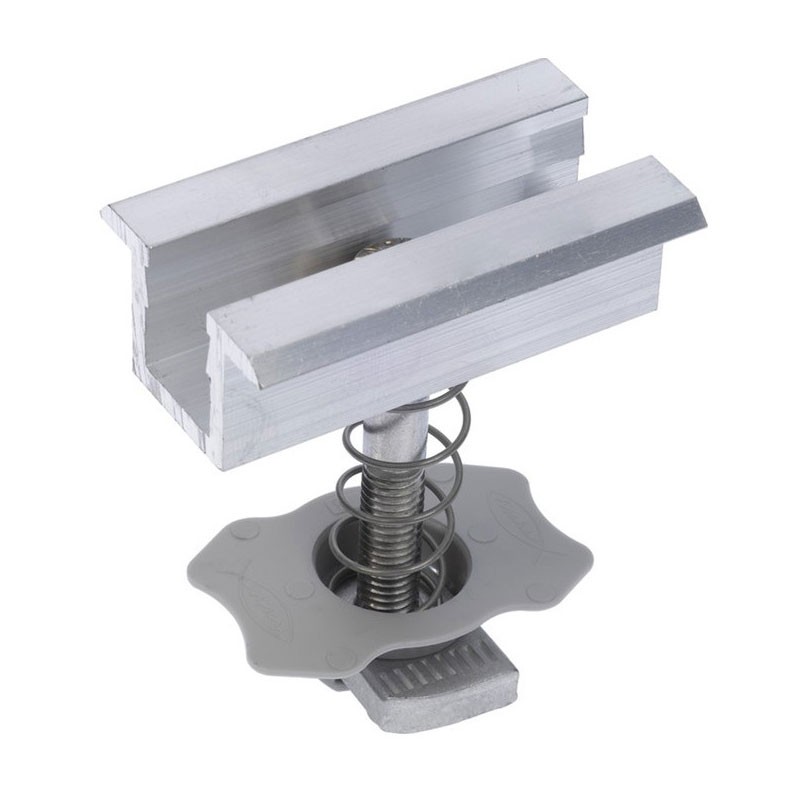

- Central Clamp for Photovoltaic Modules
- Can be used with Solar Profiles
- Material: Aluminum AW 6060 T66
- Panel thickness: from 33 to 39mm
- Weight: 0,075Kg

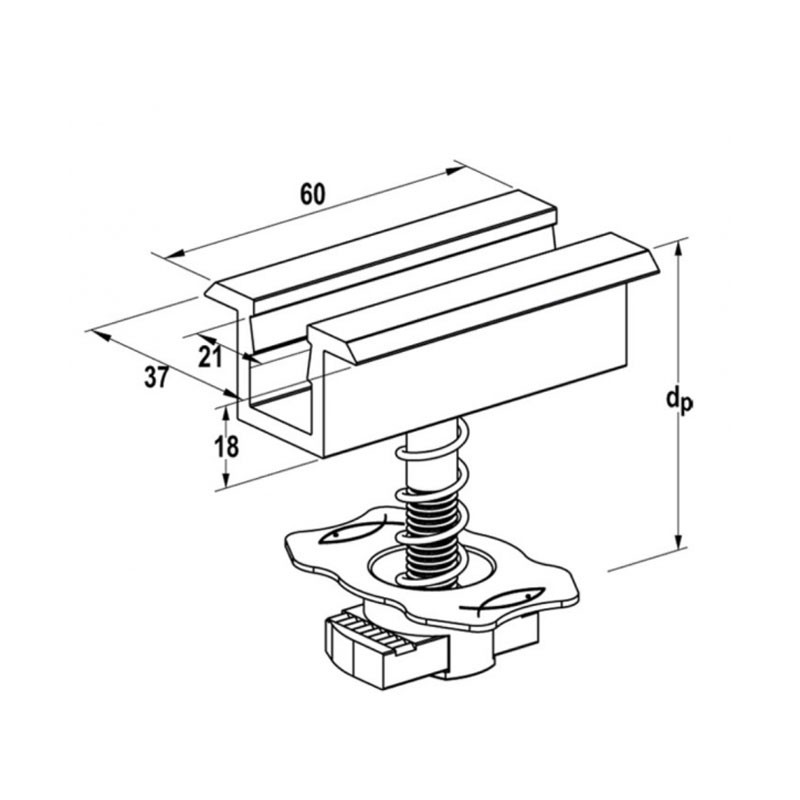

- Dimensions: 60x37mm
- Thread: M8.
Advantages:
- Full range: the pre-assembled clamps
- PM can clamp all PV modules with frame thickness from 26.5 mm to 50 mm
- Fast: Thanks to the hammerhead nut FCN AL, PM-Clamps can be quickly attached and locked at any point of the support profile.
- Convenient: the pre-assembled PM clamps are spring-loaded and stay up during clamping, and thanks to the plastic element they stay in position without sliding into the profile
- Complete: The pre-assembled PM clamps do not need any additional elements (screws, washers, bolts).
Applications:
- Pitched roofing system with hooks
- Flat roofing system with triangles
- Trapezoidal sheet metal roofing system
- Corrugated sheet roofing system
- Special structures system
- Powerskin system
