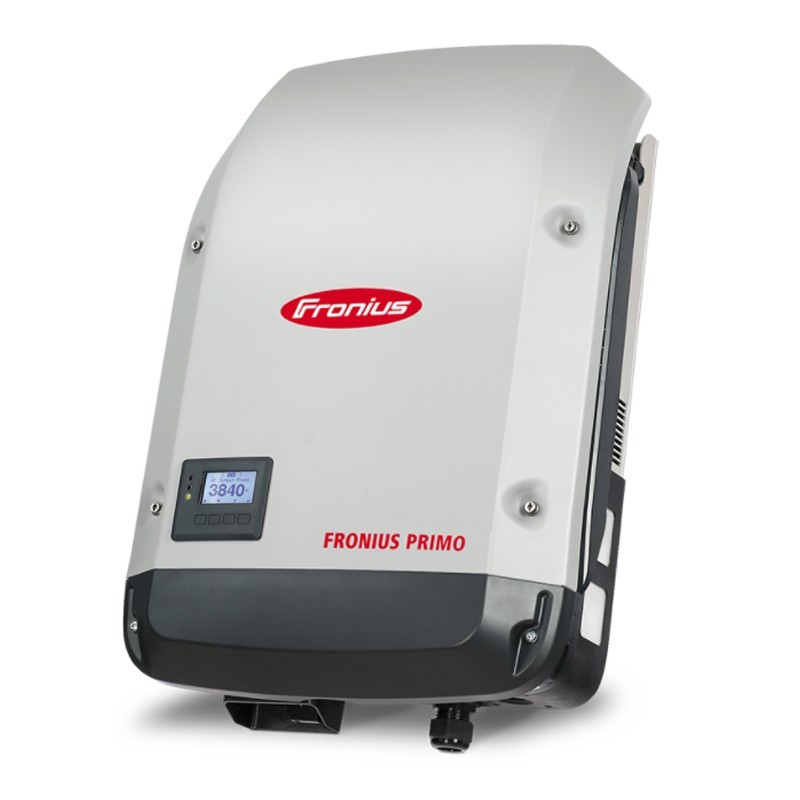

Fronius Primo 6.0 KW Light 2MPP IP65 4.210.063
FRO 4.210.062.001
9007947197412

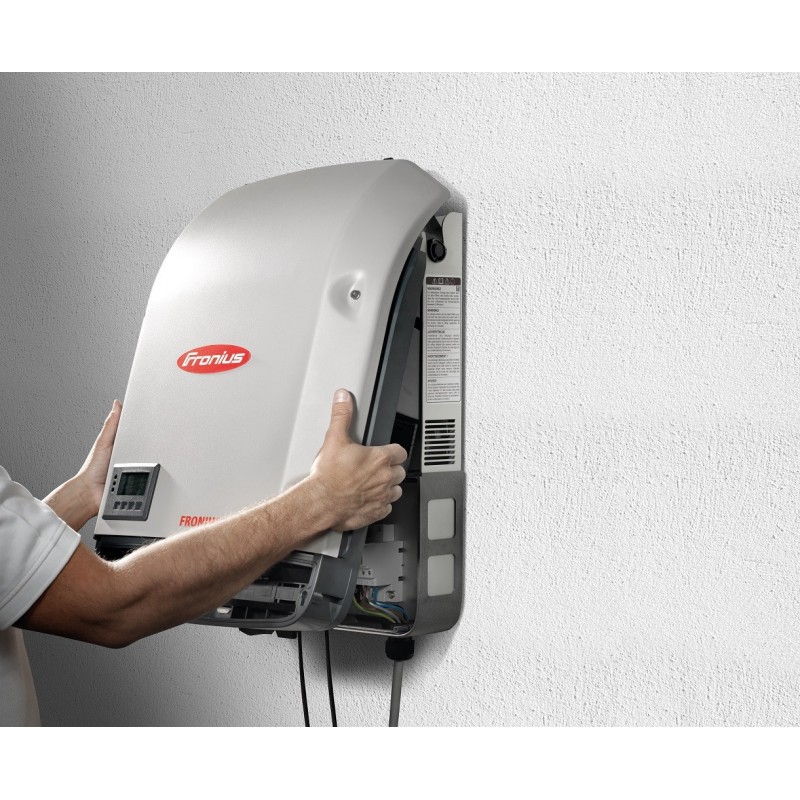

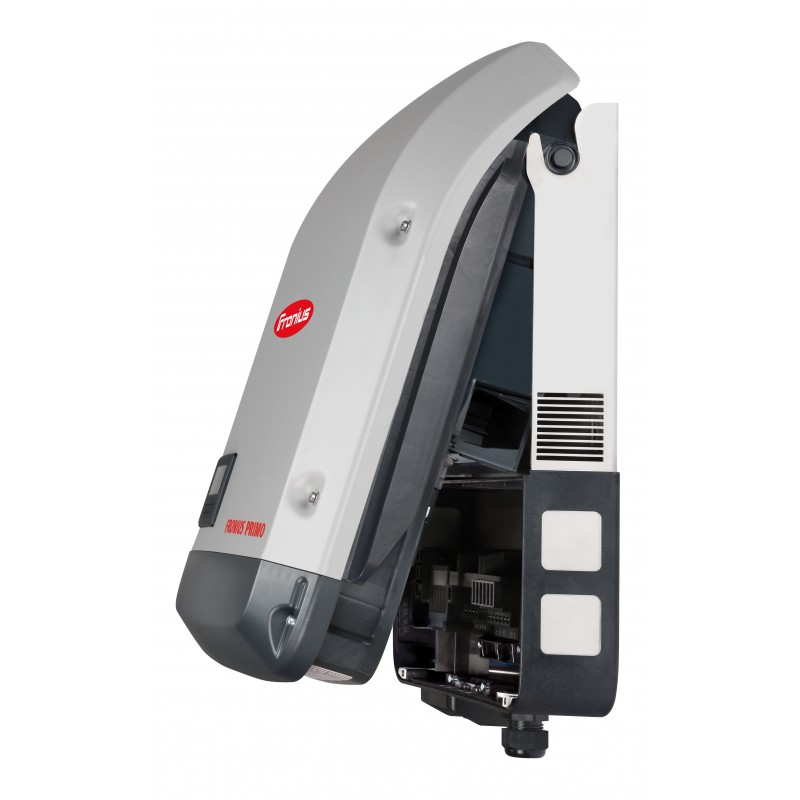

The Fronius is the First in the power categories from 3.0 to 8.2 kw brings to perfection the new generation of SnapINverter.This single phase inverter without transformer is ideal for domestic installations. The innovative Design SuperFlex offers a maximum of flexibility in the system, while the SnapINverter makes installation and maintenance easier than ever.
Fronius Primo 6.0 KW Light 2MPP IP65 4.210.063
€1,499.01
€1,499.01
Tax included
Tax included
Out of stock
Incoming
Frequently bought together
DATA-ENTRY:
Input current: max 12,0 A / 12,0 A
Max contribution to short circuit current (MPP1/MPP2) :18,0 A / A 18.0 TO
Input voltage min. (Udc min) :80 V
Start voltage supply (Vdc start): 80 V
Input voltage nominal value (Udc,r) :700 V
Input voltage max. (Udc max) :1000v
Range of MPP voltage: 240 - 800 V
Number of MPP tracker :2
Number of DC inputs :2 + 2
OUTPUT DATA:
Nominal AC power: 6000 W
Output power max: 6.000 VA
Output current max: 26.1 A
Grid connection (Uac,r) :1 ~ NPE 220 V / 230 V (180 V - 270 V)
Frequency (frequency range) :50 Hz / 60 Hz (45 - 65 Hz)
Distortion factor :< 5 %
Power factor (cos ?ac,r) :0,85 - 1 ind. / cap.
GENERAL DATA:
Dimensions (height x width x depth) :645 x 431 x 204 mm
Weight :21.5 kg
Degree of protection :IP 65
Protection class :1
Overvoltage category (DC / AC) 1): 2 / 3
Night-time consumption :< 1 W
Conception dellinverter :Without transformer
Cooling :Ventilation regulated
Mounting :indoor and outdoor
Range ambient temperature :-40 - +55 °C
The technique of DC connection :2 x DC+1, 2x DC+2 and 4x DC - screw terminal 2,5 - 16 mm2
Technical AC connection :3-pin AC screw terminals 2,5 - 16 mm2
Measurement dellisolamento CC: Yes
Behavior in case of overload: Shift of the point of work, limitation of power
DC circuit breaker :Yes
WLAN / Ethernet LAN :Fronius Solar.web ,Modbus TCP SunSpec,Fronius Solar API (JSON)
6 inputs or 4 digital inputs/outputs :Connection to receiver ripple control
USB Connector (Type A) :Datalogging, inverter update via USB flash drive
2 RJ45 sockets (RS422) :the Fronius Solar Net
Output signal: Energy management (relay potential-free output)
Data logger and Web server :Integrated
External Input:Interface So-Meter / Input for overvoltage protection
RS485 :Modbus RTU SunSpec or meter connection
Onduleur facile à installer et correspondant au descriptif.
Ottimo acquisto, consigliatissimo e ottimo venditore
Le produit est excellent comme tous les produits Fronius
Data sheet
- Type:
- Inverter
- Power:
- 6 to 10KW
- MPPT:
- 2
- Connection:
- Single-phase
