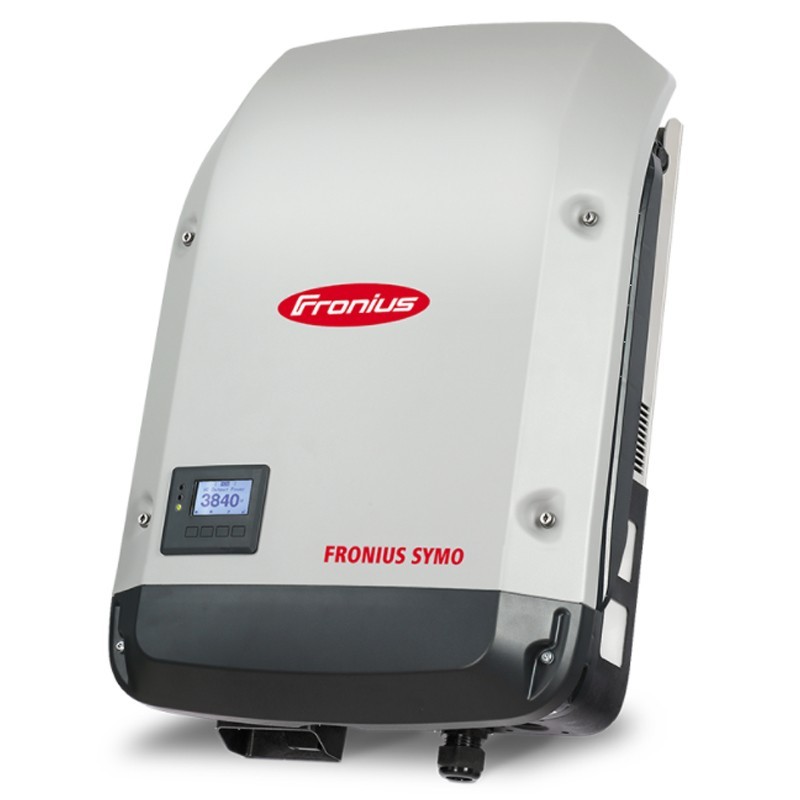

Fronius Symo LIGHT solar inverter 6.0KW 2MPPT IP65 4.210.040.001

Brand: Fronius

Code: FRO 4.210.040.001 EAN: 9007947119346

Fronius photovoltaic inverter model SYMO LIGHT:

Rated power 6.0KW
Number of DC inputs 2+2
MPPT tracker number 2
Degree of protection IP65

Not provided with connection for monitoring.

Inverter Fronius Symo

Fronius Symo LIGHT solar inverter 6.0KW 2MPPT IP65 4.210.040.001

€1,473.16

Fronius Symo LIGHT solar inverter 6.0KW 2MPPT IP65 4.210.040.001

€1,473.16
Tax included

Out of stock

Further availability of the manufacturer

Incoming

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

With power classes ranging from 3.0 to 20.0 kW, Fronius Symo is the suitable three-phase inverter for installations of any size. With its SuperFlex Design, Fronius Symo is the optimal device for pitched roofs or those with different orientations. Standard Internet connection via WLAN or Ethernet and easy integration of third-party components make Fronius Symo one of the most communicative inverters available on the market. The meter interface also enables dynamic management of fed energy and clear and concise display of consumption.

FEATURES:

INPUT DATA:

Number of MPP trackers 2
Max. input current 16 / 16 A
Max. short-circuit current solar module range 24 / 24 A
DC input voltage range 150 - 1000 V
Power supply start-up voltage 200 V
Nominal input voltage 595 V
MPP voltage range 195 - 800 V
Usable MPP voltage range 150 - 800 V
Number of DC connections 2 + 2
Maximum power of PV generator 12 kWpeak

OUTPUT DATA:

Rated AC power 6000W
Max output power 6000 VA
AC output current 8.7 A
Grid connection 3- NPE 400/230, 3- NPE 380/220 V
Voltage range 150 - 280 V
Frequency 50 / 60 Hz
Frequency range 45 - 65 Hz
Distortion factor 1.8 %
Power factor 0.85 - 1 ind./cap

GENERAL DATA:

Dimensions (height) 645 mm
Dimensions (width) 431 mm
Dimensions (depth) 204 mm
Weight 19.9 kg
Protection class IP65
Safety class I
Overvoltage category (DC/AC) 2/3
Inverter design Transformerless
Cooling Regulated ventilation
Mounting Indoor and outdoor
Ambient temperature range -25 Degrees - +60 Degrees
Allowable air humidity 0 - 100 %
Max. height above sea level 2,000 m / 3,400 m
DC connection technology 4 DC+ screw terminals and 4 DC- screw terminals 2.5 mm² - 16 mm² (For 16 mm² without wire end sleeves)
AC connection technology 5-pole AC screw terminals 2.5-16 mm² (For 16 mm² without wire end sleeves)

PROTECTIVE DEVICES:

DC insulation measurement
Overload behavior Working point shifting, power limitation
DC disconnect switch

INTERFACES:

WLAN/Ethernet LAN Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
6 inputs and 4 digital inputs/outputs Connection to receiver of cyclic control signals
USB (type A connector) Datalogging, inverter update via USB stick
2 RS422 (RJ45 connector) Fronius Solar Net
Signal output Energy management (potential-free relay output)
Datalogger and Web server Integrated
External input Connection to S0 meter/overvoltage protection analysis
RS485 Modbus RTU SunSpec or connection to the meter
