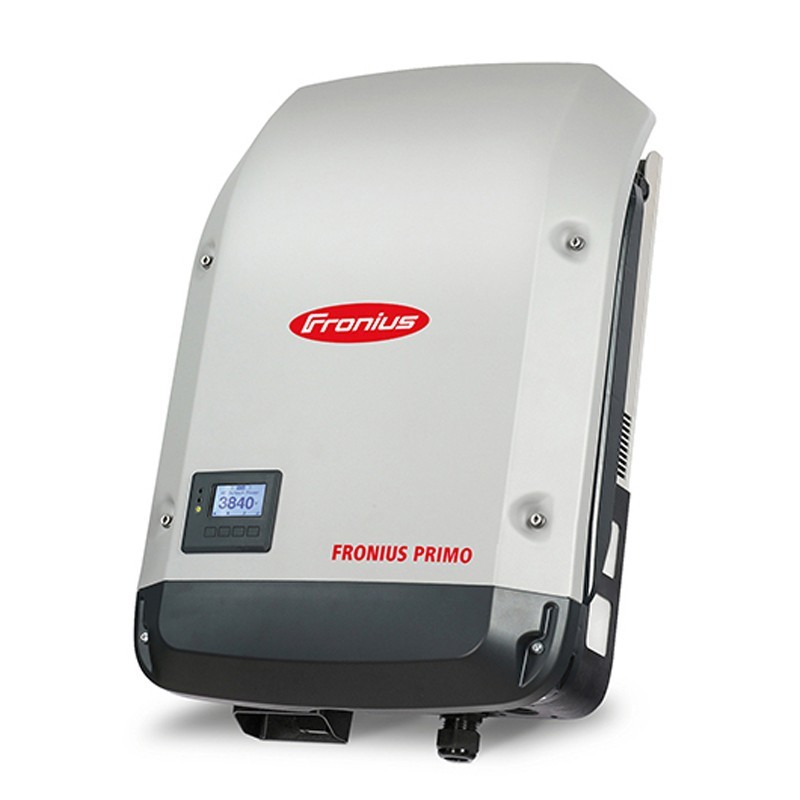

Fronius Inverter PRIMO LIGHT 5.0KW FULL 2MPPT IP65 4.210.063.001
FRO 4.210.063.001
9007947197436
Fronius PRIMO LIGHT inverter:
- Rated power 5.0KW
- Number of DC inputs 2+2
- Number trackers 2 MPPT
- Degree of protection IP65
Not provided with connection for monitoring.
Fronius Inverter PRIMO LIGHT 5.0KW FULL 2MPPT IP65 4.210.063.001
€1,228.85
€1,228.85
Fronius Inverter PRIMO LIGHT 5.0KW FULL 2MPPT IP65 4.210.063.001
€1,228.85
Tax included
Tax included
Out of stock
Incoming
Fronius Inverter PRIMO LIGHT 5.0KW FULL 2MPPT IP65 4.210.063.001
€1,228.85
The Fronius Primo Light in power categories from 3.0 to 8.2 kw brings the new generation of SnapINverter to perfection. This single-phase transformerless inverter is Ideal for home systems.
The innovative SuperFlex Design offers maximum flexibility in the system, while the SnapINverter makes installation and maintenance easier than ever. The communication package with all standards such as Wlan, energy management, many interfaces and much more makes the Fronius Primo linverter ideal for home use.
Features:
INPUT DATA:
- Max input current 12.0 A / 12.0 A
- Max contribution to short circuit current 18.0 A / 18.0 A
- Min input voltage 80 V
- Supply start voltage 80 V
- Nominal input voltage 700 V
- Max input voltage 1,000 V
- MPP voltage range 240 - 800 V
- Number of MPP trackers 2
- Number of DC inputs 2 + 2
- Maximum generator output power 7.5 kW peak
OUTPUT DATA:
- Rated AC power 5,000 W
- Max output power 5,000 VA
- Max output current 21.7 A
- Grid connection 1 ~ NPE 220 V / 230 V (180 V - 270 V)
- Frequency (frequency range) 50 Hz / 60 Hz (45 - 65 Hz)
- Distortion factor < 5 %
- Power factor 0.85 - 1 ind. / cap
GENERAL DATA:
- Dimensions (height x width x depth) 645 x 431 x 204 mm
- Weight 21.5 kg
- Degree of protection IP65
- Protection class 1
- Overvoltage category 2/3
- Nighttime consumption < 1 W
- Inverter design Transformerless
- Cooling Regulated ventilation
- Mounting Indoor and outdoor
- Ambient temperature range -40 - +55 °C
- Allowable air humidity 0 - 100 %
- Max. altitude 4,000 m
- DC connection technology 4x DC+ and 4x DC- screw terminals 2.5 - 16 mm²
- AC connection technology 3-pole AC screw terminals 2.5 - 16 mm²
EFFICIENCY DEGREE:
- Max. efficiency grade 97.1%
- European efficiency grade 96.4 %
- MPP adaptation efficiency degree > 99.9 %
SAFETY DEVICES
- DC insulation measurement
- DC disconnect switch
- Reverse polarity protection
INTERFACES
- WLAN / Ethernet LAN Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
- 6 inputs or 4 digital inputs/outputs Connection to ripple control receiver
- USB (Type A socket Datalogging, inverter update via USB flash drive
- 2 RJ45 sockets (RS422) Fronius Solar Net
- Energy management signal output (potential-free output relay)
- Datalogger and Web server Integrated
- External input So-Meter interface / Input for overvoltage protection
- RS485 Modbus RTU SunSpec or Smart Meter connection
Data sheet
- Type: Inverter
- Power: 1 to 5KW
- MPPT: 2
- Connection: Single-phase
