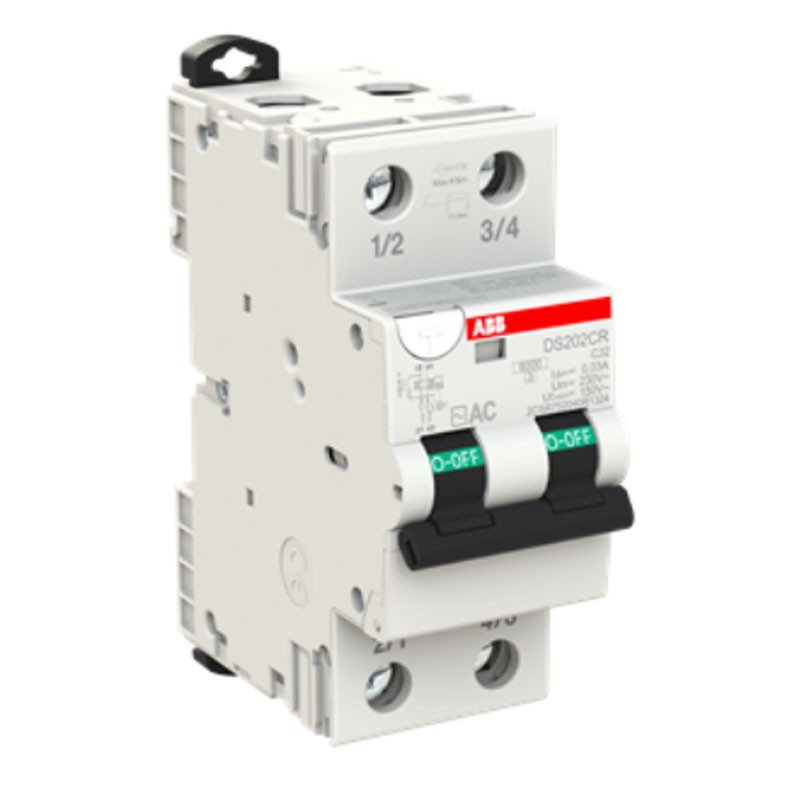

Abb Residual Current Operated Circuit Breaker 2 poles 32A 30mA AC type 6kA 2 modules DS202CRC32AC30
ABB DS202CRC32AC30
8012542142058
Abb Residual Current Operated Circuit Breaker, with the following characteristics:
- Rated operating voltage: acc. to IEC 60898-1 230V
- Rated insulation voltage (U i ): acc. to IEC/EN 60664-1 440V
- Rated impulse withstand voltage (U imp ):4 kV
- Tripping characteristic: C
- Residual current type: AC type
- Input voltage type :AC
- Rated current (In ):32 amps
- Rated residual current: 30 mA
- Rated short-circuit capacity: 6 kA
- Rated maximum short-circuit breaking capacity (I cu ): 10kA
- Rated service short-circuit breaking capacity (Ics ) : 6kA
- Maximum peak current : 0.25kA
- Leakage current type: AC
- Frequency: 50Hz
Abb Residual Current Operated Circuit Breaker 2 poles 32A 30mA AC type 6kA 2 modules DS202CRC32AC30
€67.94
€67.94
Tax included
Tax included
Pay in installments with Klarna
Items Available: 51
The DS202CR series residual current circuit breaker is a 2P device in two modules for protection of single-phase end-user circuits against overload and short-circuit currents. Protection against the effects of alternating and direct pulsating sinusoidal earth fault currents. Protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).
The Residual Current Operated Circuit Breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.
The Residual Current Operated Circuit Breaker in the electrical system integrates three different protections:
- the magnetic one for short circuits that can endanger an entire building with the danger of fire;
- the thermal one for overloads in the power supply (e.g., more than one appliance in operation);
- that differential proper of the circuit breaker that protects the subject from a power leakage.
The AC type circuit breaker the tripping is ensured for suddenly or slowly increasing applied differential sinusoidal alternating currents (IEC EN 61008-1).
Features:
- Abb series
- Standard: CEI/EN 61009-1 - CEI/EN 61009-2-1
- Rated frequency: 50Hz
- Power loss: 7.60W
- Power connection: Arbitrary
- Energy class limit: 3
- Electrical resistance:10000 operations
- Mechanical endurance:20000 operations
- 2 modules
- Number of poles:2
- Number of protected poles:2
- Fault indication:Blue flag on the window
- Operating characteristic:Instantaneous
- Overvoltage category: III
- Position of neutral terminals:Right Left
- Tightening torque: 4 Nm
- Type of accessory: Auxiliary contact - Signaling/auxiliary contact
- Type of earthing disconnect switch: Non-delayed
- Ambient air temperature: Operating -5 /+55 °C - Storage -40 /+70 °C
- Mounting type: DIN rail with mounting clip
- Mounting location: any
- Cable size: 35mm²
- Degree of protection: IP20
- Pollution degree: 3
- Connection capacity: Bar 10...10mm²: Flexible 1...25mm² - Rigid Solid 1...35mm²
- Nominal cross-sectional area: 1 - Solid-Core 1...35 mm² - 4 - Multi-Wired 1...25 mm²
- Environmental conditions: 28 cycles - with 55 °C / 90-96 % - and 25 °C / 95-100 %
- Wire stripping length: 11 mm
- RoHS status: following EU Directive 2011/65/EU and Amendment 2015/863 of July 22, 2019
- Net width of the product: 36 mm
- Net height of the product: 86 mm
- Net depth/length of product:72 mm
- Net product weight:0.220 kg
- Built-in depth ( t 2 ): 72 mm
Data sheet
- Modules:
- 2
- Poles:
- 2P
- Curve:
- C
- Breaking capacity:
- 6KA
- RCD Type:
- AC
- Differential current :
- 0.03A
- Amps:
- 32A
- Circuit Protections:
- RCBO
