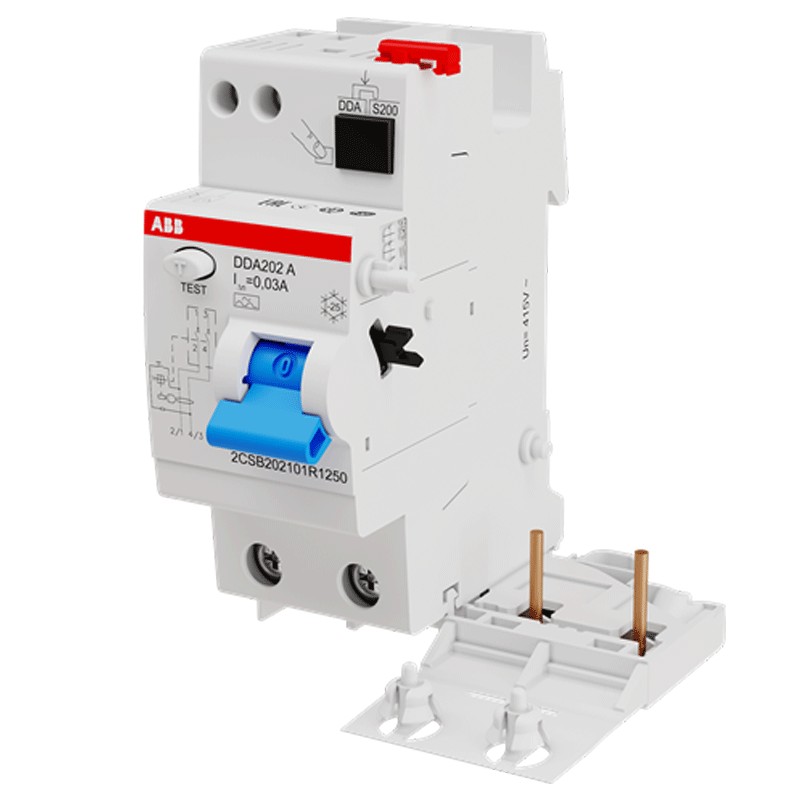

ABB DDA202 2P 63A 30mA differential lock type A 2 modules B427956
ABB B427956
8012542795605
Abb DDA202 series differential block (circuit breaker), with the following characteristics:
- 2 modules
- DIN connection (universal for any switchboard on the market)
- 2 poles
- 63 amperes
- Rated residual current 30mA
- Rated voltage 230/400 Vac
- Type of differential A
ABB DDA202 2P 63A 30mA differential lock type A 2 modules B427956
€141.04
€141.04
Tax included
Tax included
Items Available: 10
: 2
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The differential block type A, guarantees the operation for AC and unidirectional pulsating type currents.
Features:
- Abb series
- Rated voltage 230/400 Vac
- Current In 63A
- Differential current Idn 30mA
- Type of differential A
- 2 modules
- 2 poles
- Height 93 mm
- Width 70 mm
- Depth 76 mm
- Net weight 210 gr
There are no reviews
Data sheet
- Voltage: 230/400VAC
- Modules: 2
- Poles: 2P
- RCD Type: A
- Differential current : 0.03A
- Amps: 63A
- Circuit Protections: Earth Leakage add-on Blocks
