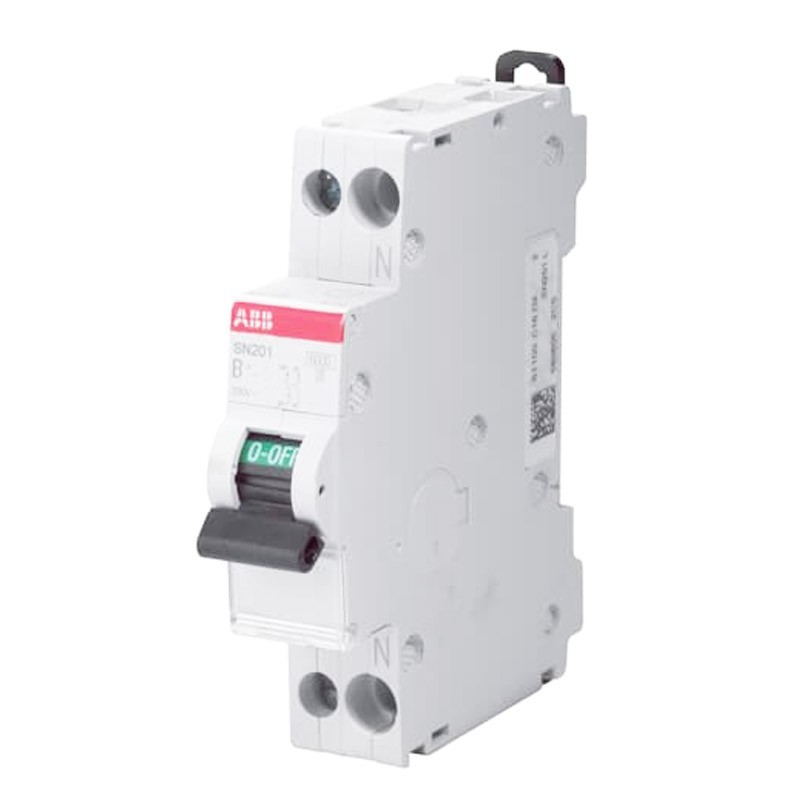

ABB thermomagnetic circuit breaker SN201 20A 1P N 6KA C 1 Module SN201C20
ABB SN201C20
8012542356400
Thermal-magnetic circuit breaker ABB SN201 20A 1P N 6KA Curve C 1 Module, 1 NP
€41.94
€39.84
Lowest price in 30 days:
€41.94
Save 5%
€39.84
Tax included
Tax included
Items Available: 4
Order Code: SN201C6 - SN201 Thermomagnetic Circuit Breakers provide overload and short circuit protection in a single module.
Available in intervention curves B and C from 2 to 40A allow the protection of all the circuits typically present in residential systems. The red-green indicator integrated on the knob, together with the card holder, guarantees the user a clear identification of any faulty circuit.
Features:
- Number of poles: 1 N
- Number of protected poles: 1
- Intervention characteristic: C
- Rated current 20 A
- Rated operating voltage: according to IEC 60898-1 230 V AC
- Power loss: at Nominal Operating Conditions per 4.8 W pole
- Rated insulation voltage 500 V
- Rated short-circuit rating (400 V) 6 kA - (230 V) 6 kA
- Rated service short-circuit capacity 6 kA
- Overvoltage category: III
- Degree of pollution: 2
- Degree of protection: Housing IP40 - Terminals IP20
- Connection capacity: Flexible 0 ... 10 mm² - Rigid 0 ... 16 mm²
- Ambient temperature: Operating -25...55 °C
- Reference ambient air temperature: 30 Degrees
- Dimensions: WxDxH 0.018x0.069x0.085 meters
- Net weight 0.110 kg.
There are no reviews
Data sheet
- Voltage: 230VAC
- Modules: 1
- Poles: 1P+N
- Curve: C
- Breaking capacity: 6KA
- Amps: 20A
- Circuit Protections: Circuit breakers
