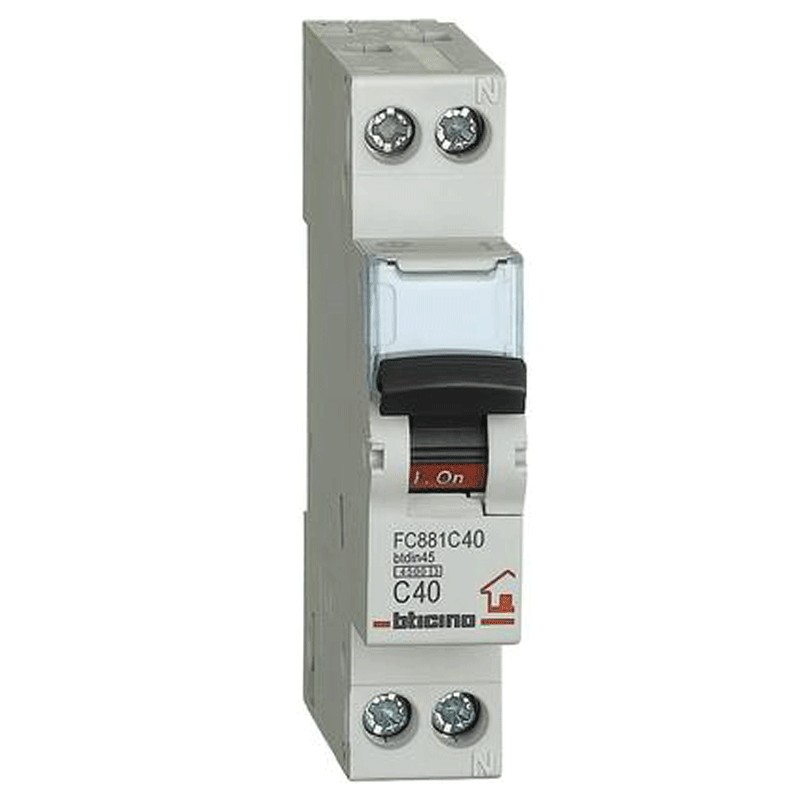

Breaker, Bticino breaker 1P+N 40A 1 form FC881C40
BTI FC881C40
8005543532454
Breaker, Bticino breaker 1P+N 40A 1 form FC881C40
€6.80
€6.80
Tax included
Tax included
Items Available: 2
BTDIN-RS - circuit breaker-1P+N curve C, In= 40A Icn= 4,5 kA - Vn= 230 Vac - 1 module technical specifications Degree of protection IP20 The maximum section of the cable to the 10/16mmq Height 83mm Width 17.7 mm Depth 76mm Modules 1 Reference standard: IEC EN 60898-1 Poles 1P+N Interrupting capacity Icn 4.5 kA Voltage 230Vac Type of the curve C Current 40A Series IT Btdin
Data sheet
- Voltage: 230VAC
- Modules: 1
- Poles: 1P+N
- Curve: C
- Breaking capacity: 4.5KA
- Amps: 40A
- Circuit Protections: Circuit breakers
