The thermomagnetic circuit breaker is located next to the circuit breaker and integrates a magnetic protection with a thermal one and interrupts the electric current if necessary.

The thermal magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.

The thermal-magnetic differential switch present in the electrical system integrates three different protections

• the magnetic one for short circuits that can put an entire building at risk of fire;
• the thermal one for overloads in the supply of electrical energy (for example more than one household appliance in operation);
• the differential one, typical of the lifesaver, which protects the subject from a current leakage.



The AC type differential switch intervention is ensured for sinusoidal alternating currents applied suddenly or slowly increasing (CEI EN 61008-1).

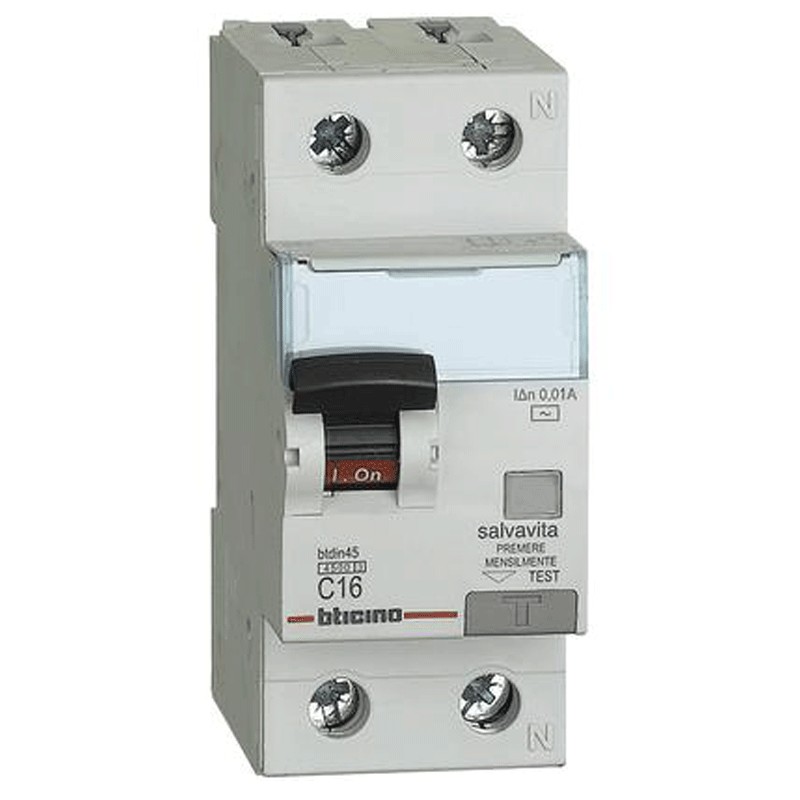

Features:

• Bticino series
• Voltage 230 Vac
• Current In 16A
• Interrupting capacity Icn 4,5kA
• Intervention curve C
• Differential current Idn 0.01A
• Type of AC differential
• 2 modules
• 1P+N poles

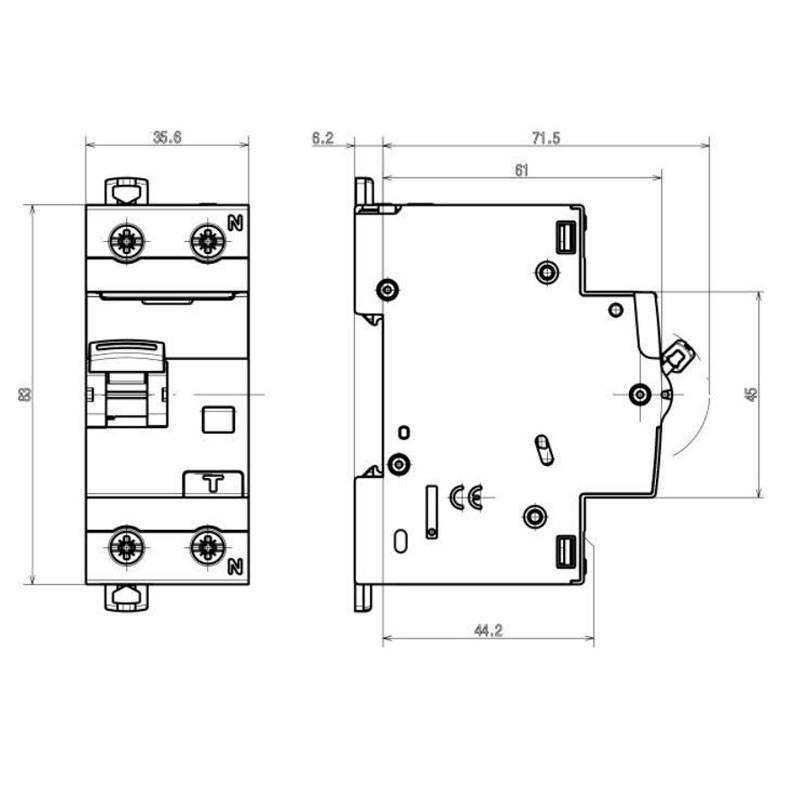

• Height 83 mm
• Width 35.6 mm
• Depth 76 mm
• Maximum cable section 25/35mmq
• Degree of protection IP20
