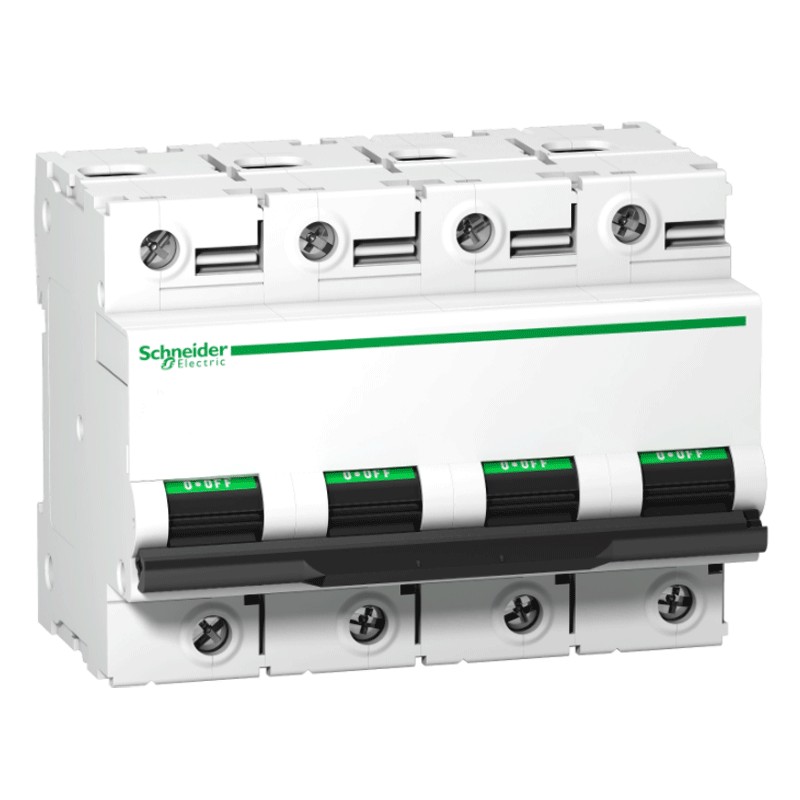

Circuit breaker 4P 100A 10KA C 6 modules A9N18374
SNR A9N18374
3606480379451
Circuit breaker 4P 100A 10KA C 6 modules A9N18374
![](https://www.elettronew.com/39508-large_default/circuit-breaker-4p-100a-10ka-c-6-modules-a9n18374.jpg)
Circuit breaker 4P 100A 10KA C 6 modules A9N18374
€241.68
€241.68
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 19
The main Range of products C120 range Acti 9 product name C120 Product or component type Circuit breaker Short name device C120N Application of the device Distribution Description of the poles 4P Number of poles-protected 4 [In] rated current 100 a At 30 ° C network type AC Technology drives travel Breaker Code of the curve C Breaking capacity 6 kA Icu conforming to EN / IEC 60947-2 - 440 V AC 50/60 Hz 10 kA Icu conforming to EN / IEC 60947-2 - 380 ... 415 V AC 50/60 Hz 20 kA Icu conforming to EN / IEC 60947-2 - 220 ... 240 V AC 50/60 Hz 10 kA Icu conforming to EN / IEC 60947-2 - <= 500 V DC 10000 A Icn conforming to EN / IEC 60898-1 - 230 ... 400 V AC 50/60 Hz
Data sheet
- Modules:
- 6
- Poles:
- 4P
- Curve:
- C
- Breaking capacity:
- 10KA
- Amps:
- 100A
- Circuit Protections:
- Circuit breakers
