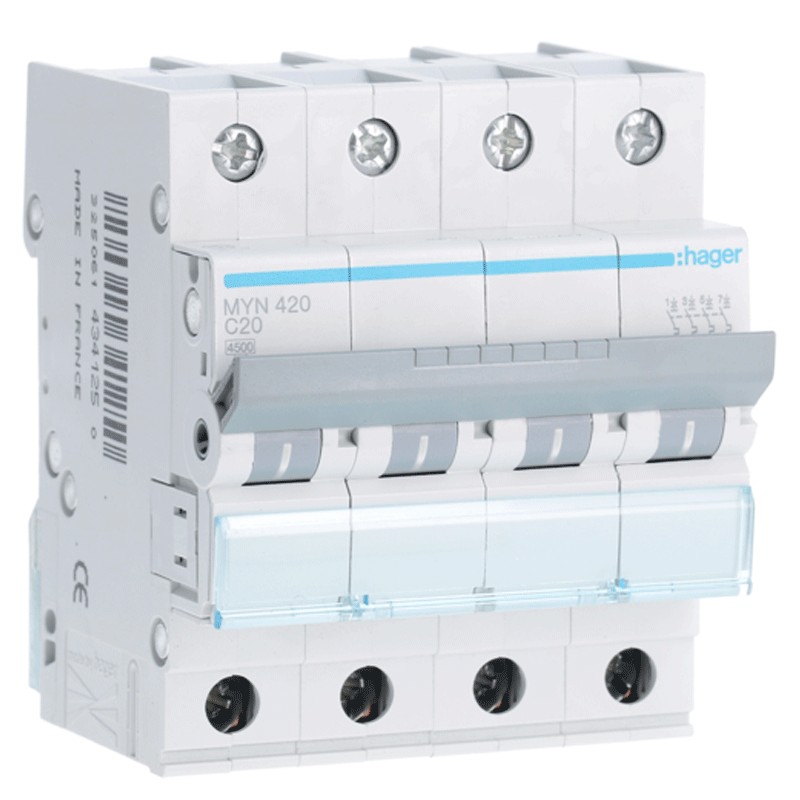

Circuit breaker Hager 4P 20A 4.5 KA C 4 modules MYN420

Hager
HAG MYN420 3250614341250

Circuit breaker Hager 4P 20A 4.5 KA C 4 modules MYN420

Do you have questions about this product or did you not find what you were looking for? Ask us!

Circuit breaker Hager 4P 20A 4.5 KA C 4 modules MYN420

€59.32
€59.32

Circuit breaker Hager 4P 20A 4.5 KA C 4 modules MYN420

€59.32
Tax included
Items Available: 14
Further availability of the manufacturer

Circuit breaker Hager 4P 20A 4.5 KA C 4 modules MYN420

€59.32

Buy it within and receive it from Thursday, 6 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Technical characteristics rated operational Voltage ac: 230/400 V rated Frequency: 50/60 Hz rated Current in a 20 A Poles: 4 P Power rated breaking capacity Icn: 4.5 kA breaking capacity Icu: 6 kA Curve: C Number of modules 17.5 mm: 4 Power loss per pole: 1.3 W short-circuit Capacity of - NF EN 60898: 4,5 kA rated Voltage, insulation: 500v Number of operations (mechanical endurance): 20000 electrical Life and number of cycles: 4000 protection Index IP: IP20 operating Temperature: -25 to 60 °C storage Temperature: -25 to 80 °C Torque: 2.8 Nm Execution tropicalized for all climates

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
4
Poles:
4P
Curve:
C
Breaking capacity:
4.5KA
Amps:
20A
Circuit Protections:
Circuit breakers
