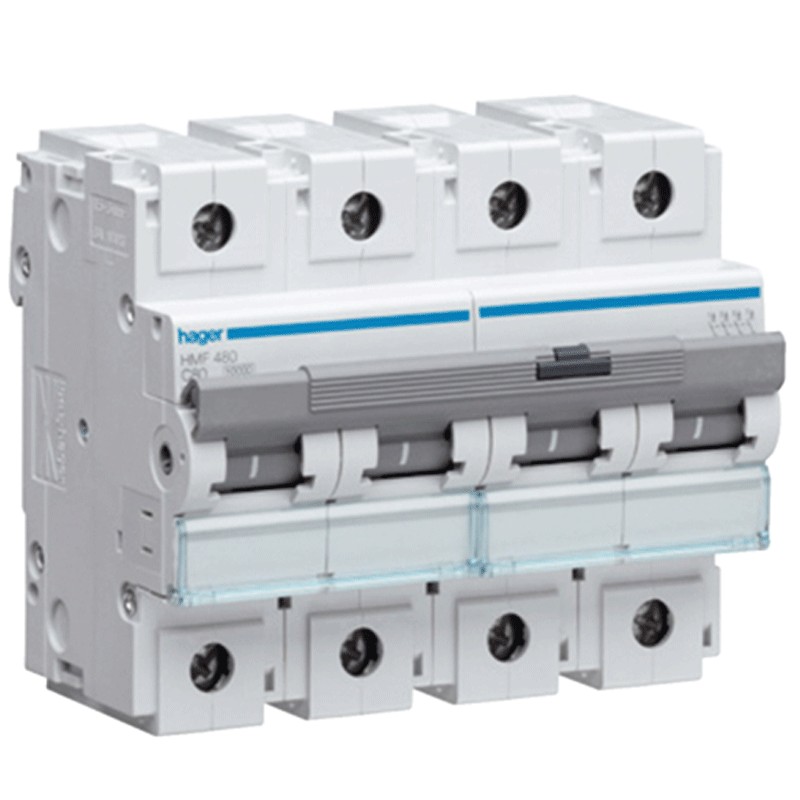

Circuit breaker Hager 4P 80A 10KA C 6 modules HMF480
HAG HMF480
3250613231064
Circuit breaker Hager 4P 80A 10KA C 6 modules HMF480
Circuit breaker Hager 4P 80A 10KA C 6 modules HMF480
€239.96
€239.96
Tax included
Tax included
Pay in installments with Klarna
Items Available: 9
Technical characteristics rated operational Voltage ac: 415 V rated Frequency: 50/60 Hz rated Current in A: 80 Poles: 4 P breaking capacity rated Icn: 10 kA breaking capacity Icu: 10 kA Curve: C Number of modules 17.5 mm: 6 Power loss per pole: 6,68 W Pot. interrupt service Ics to IEC 947-2: 75 % rated Voltage insulation: 500 V Number of operations (mechanical endurance): 20000 electrical Life and number of cycles: 4000 protection Index IP: IP20 operating Temperature: -5 to 60 °C storage Temperature: -25 to 80 °C minimum cross-Section with flexible cable: 35mm2 minimum cross-Section with rigid wire: 70mm2 tightening Torque: 3,5 to 5Nm Execution tropicalized for all climates
There are no reviews
Data sheet
- Modules:
- 6
- Poles:
- 4P
- Curve:
- C
- Breaking capacity:
- 10KA
- Amps:
- 80A
- Circuit Protections:
- Circuit breakers
