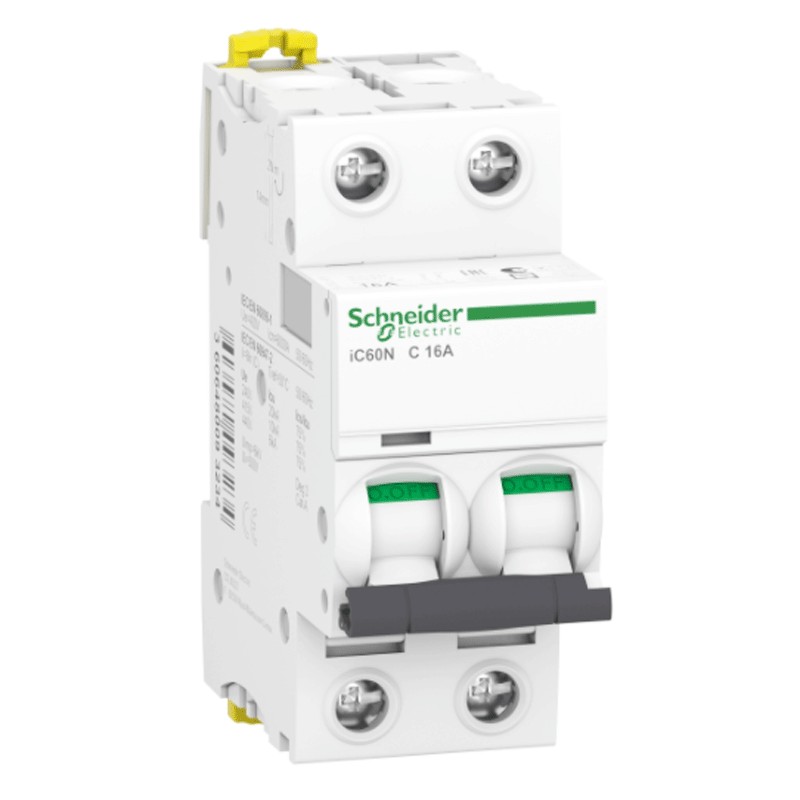

Circuit breaker-Schneider 2P 16A 6 KA C 2 modules A9F74216

Schneider
SNR A9F79216 3606480093234

Circuit breaker-Schneider 2P 16A 6 KA C 2 modules A9F74216

Do you have questions about this product or did you not find what you were looking for? Ask us!

Circuit breaker-Schneider 2P 16A 6 KA C 2 modules A9F74216

€59.65
€59.65

Circuit breaker-Schneider 2P 16A 6 KA C 2 modules A9F74216

€59.65
Tax included
Items Available: 49
Further availability of the manufacturer

Circuit breaker-Schneider 2P 16A 6 KA C 2 modules A9F74216

€59.65

Buy it within and receive it from Thursday, 19 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Main features: Application switch: Distribution Range: Acti 9 Product or component: Breaker product Name: IC60 Device short name: iC60N Description of poles: 2P Number of poles protected: 2 rated current: 16 A network Type: AC / DC Technology shutter: circuit breaker tripping Curve: C breaking capacity: 50 kA Icu according to IEC 60947-2 - 220 ... 240 V AC 50/60 Hz / 50 kA Icu according to IEC 60947-2 - 380 ... 415 V AC 50/60 Hz / 6000 A ICN according to EN 60898-1 - 400 V AC 50/60 Hz / 50 kA Icu according to EN 60947-2 - 220 ... 240 V AC 50/60 Hz / 50 kA Icu according to EN 60947-2 - 380. ..415 VAC 50/60 Hz / 6000 a Icn according to IEC 60898-1 - 400 V AC 50/60 Hz / 25 kA Icu according to EN 60947-2 - 440 V AC 50/60 Hz / 25 kA Icu according to IEC 60947-2 - 440 V AC 50/60 Hz / 50 kA Icu according to IEC 60947-2 - 12 ... 133 V AC 50/60 Hz / 50 kA Icu according to EN 60947-2 - 12 ... 133 V AC 50/60 Hz / 10 kA Icu according to EN 60947-2 - 72 ... 125 v dc / 10 kA Icu according to IEC 60947-2 - 72 ... 125 V DC job Category: In conformity with the standard iec 60947-2 according TO IEC 60947-2 Suitability for isolation Yes in accordance with EN 60947-2 / IEC 60947-2 Yes below / Yes to EN 60898-1 / IEC 60898-1 Yes under additional Features: network frequency: 50/60 Hz magnetic trip maximum: 8 x In +/- 20% [Ics] assigned to service short-circuit breaking: A Icu 6000 x 100% according to EN 60898-1 - 400 V AC 50/60 Hz / 50% x 100 kA Icu according to EN 60947-2 - 220. ..240 V AC 50/60 Hz / 50% x 100 kA Icu according to IEC 60947-2 - 220 ... 240 V AC 50/60 Hz / 50% x 100 kA Icu according to EN 60947-2 - 380. ..415 V AC 50/60 Hz / 25% x 100 kA Icu according to EN 60947-2 - 440 V AC 50/60 Hz / 50% x 100 kA Icu according to IEC 60947-2 - 380 ... 415 V AC 50/60 Hz / 25% x 100 kA Icu according to IEC 60947-2 - 440 V AC 50/60 Hz / 50% x 100 kA Icu according to IEC 60947-2 - 12 ... 133 V AC 50/60 Hz / 50 kA x 100% Icu according to EN 60947-2 - 12 ... 133 V AC 50/60 Hz / a Icu 6000 x 100% to IEC 60898-1 - 400 V AC 50/60 Hz / 10 kA 100% x Icu according to IEC 60947-2 - 72 ... 125 V DC / 100% x 10 kA Icu according to EN 60947-2 - 72 ... 125 V DC, limiting class 3 according to EN 60898-1 / 3 according to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz according to IEC 60947-2 / 500 V AC 50/60 Hz according to EN 60947-2 [Uimp] shock resistance voltage assignéede: 6 kV according to EN 60947-2 / 6 kV according to IEC 60947-2 opening required: Yes Type of control: For pin local Signal: indicator of the trigger Mode of installation: Fixed Bracket, mounting: DIN rail distribution compatibility block busbar comb: Is the top or the bottom 9 mm: 4 Height: 85mm Width: 36 mm Depth: 78.5 mm product Weight: 0.25 kg Color: White mechanical Life: 20000 cycle electrical Life: 10000 cycle Connection Mode: Terminal, normal, hard-wire the top or bottom (s) 1 ... 25 mm2 / terminal simple wire, high (or low) flexible (s) 1 ... 16 mm2 stripping Length of the son: 14 mm upward or downward tightening Torque: 2 high or in the low Nm differential Protection: a separate block

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
2
Poles:
2P
Curve:
C
Breaking capacity:
6KA
Amps:
16A
Circuit Protections:
Circuit breakers
