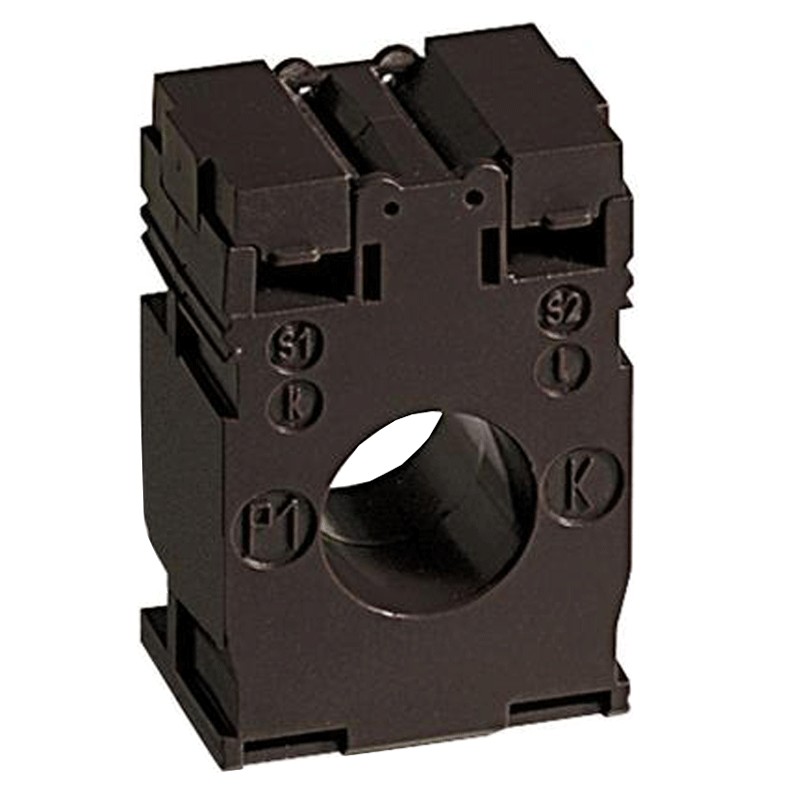

Current transformer Bticino In 160/5A F8TB160
BTI F8TB160
8005543554500
Bticino amperometric transformer, with the following characteristics:
-
Current In 160/5A
-
Degree of protection IP20
-
Internal diameter 21 mm
-
Maximum cable/bar section 16x12,5 mm
Current transformer Bticino In 160/5A F8TB160
€32.95
€32.95
Tax included
Tax included
Pay in installments with Klarna
Items Available: 26
The amperometric transformer or CT, in its simplest form, consists of two windings (primary and secondary) isolated from each other and a magnetic core on which the windings are wound.
Features:
- Bticino Series
- Current In 160/5A
- Degree of protection IP20
- Diameter 21 mm
- Maximum section of cable/bars 16x12,5 mm
Data sheet
- Diameter:
- 21mm
- Type:
- Toroidal Transformers
- Cross-Section:
- 16mm
